- Model Number:18I120
- Type:Clock and Timing Development Boards and Kits
- Place of Origin:China

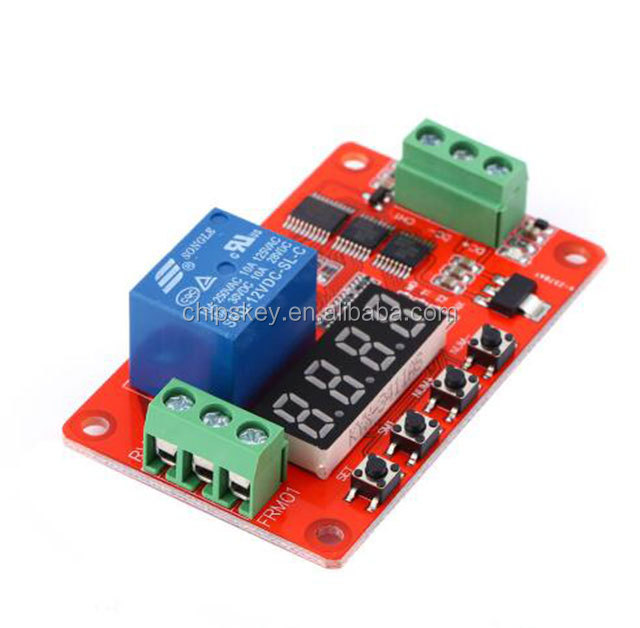

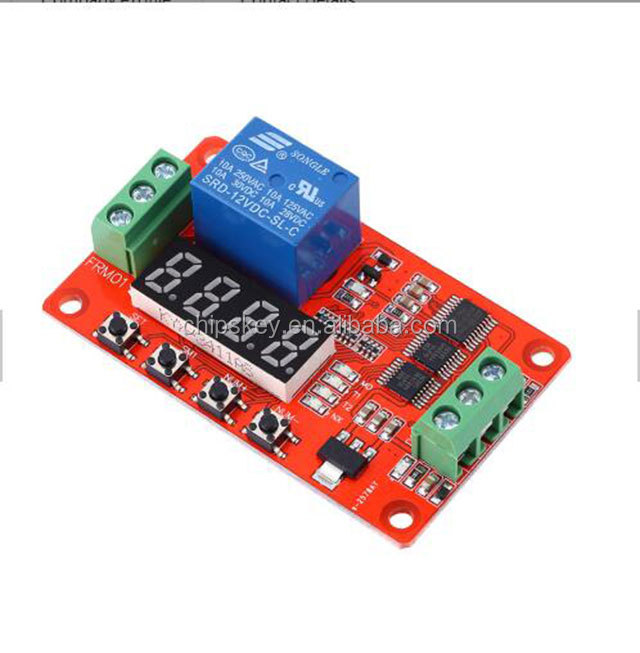

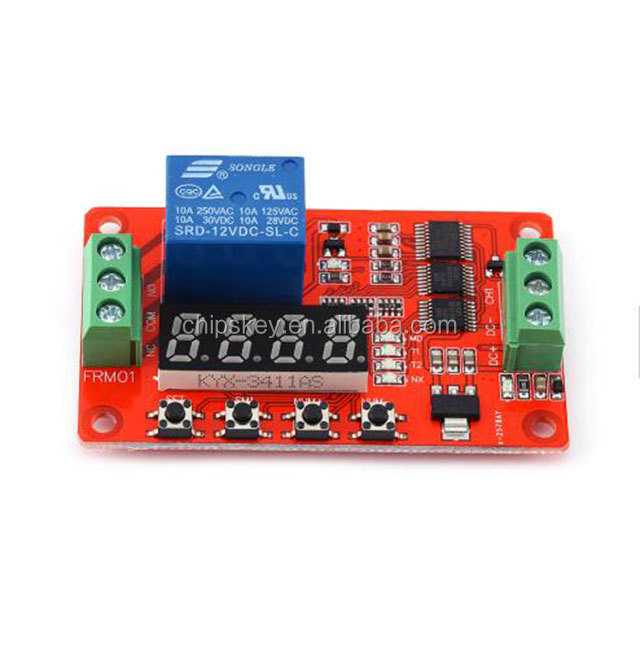

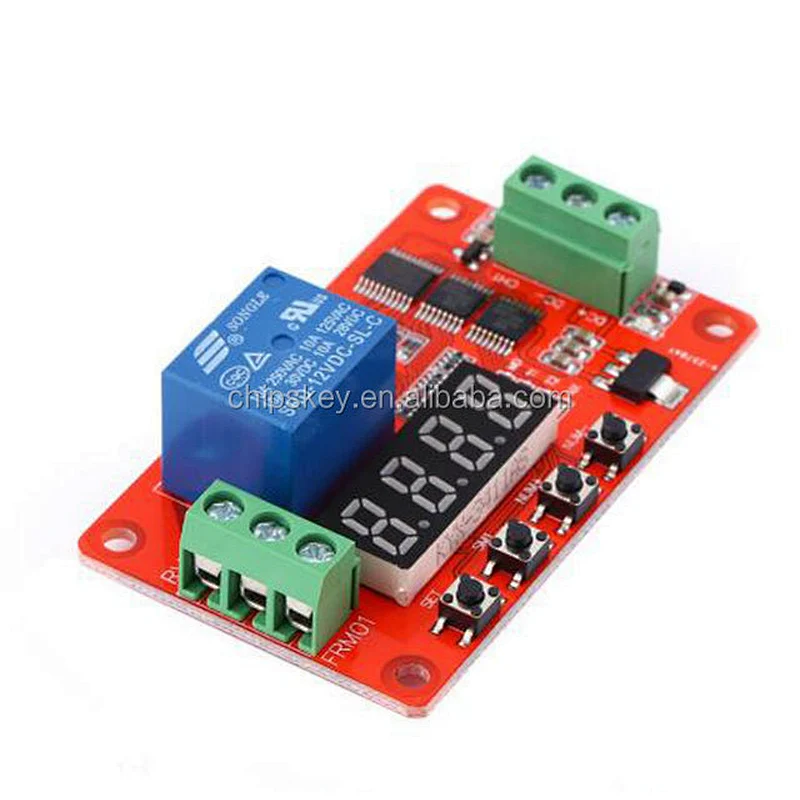

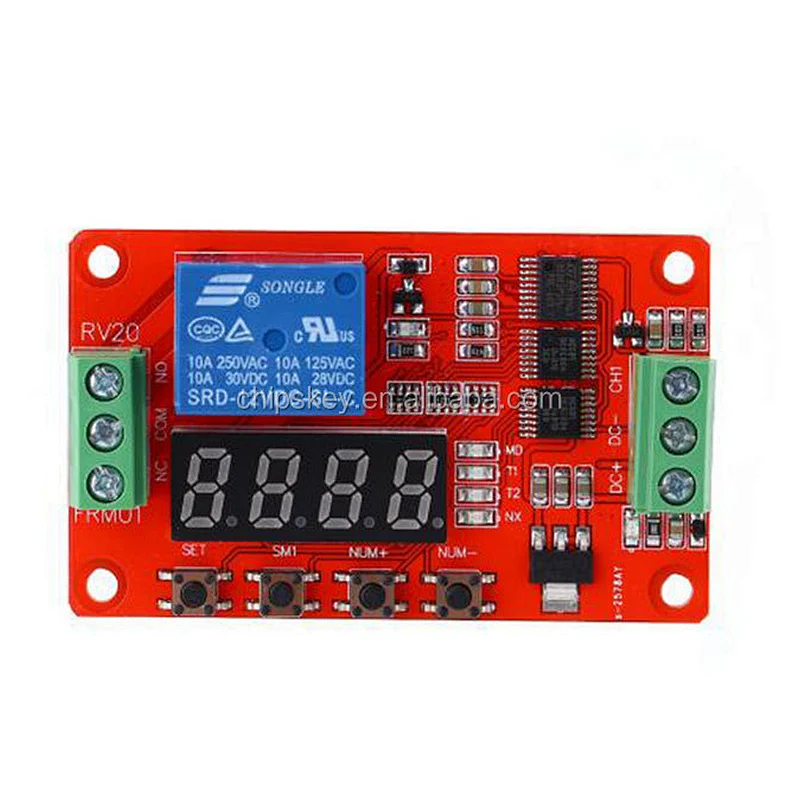

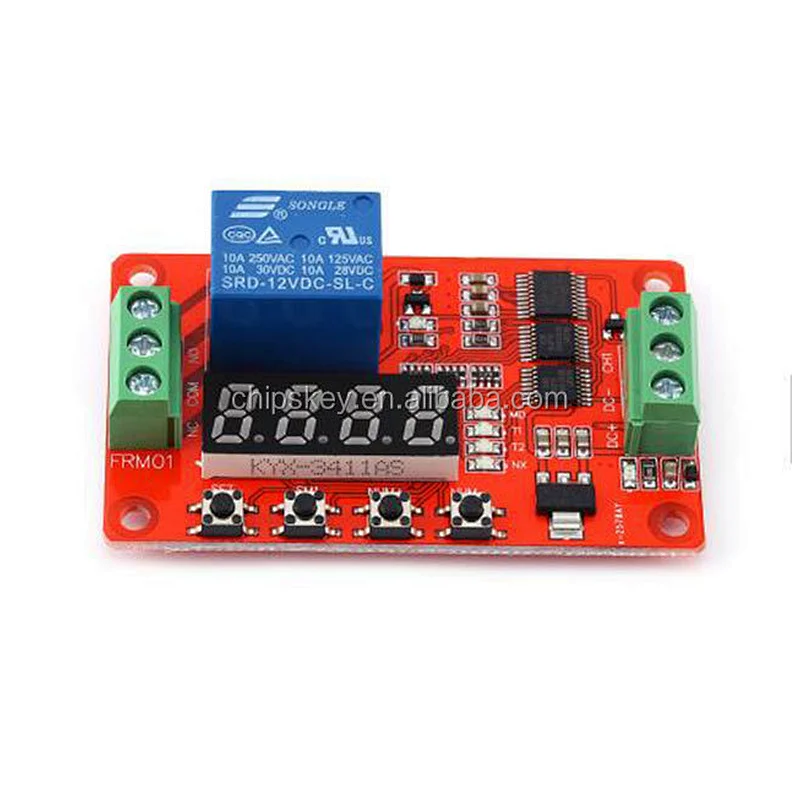

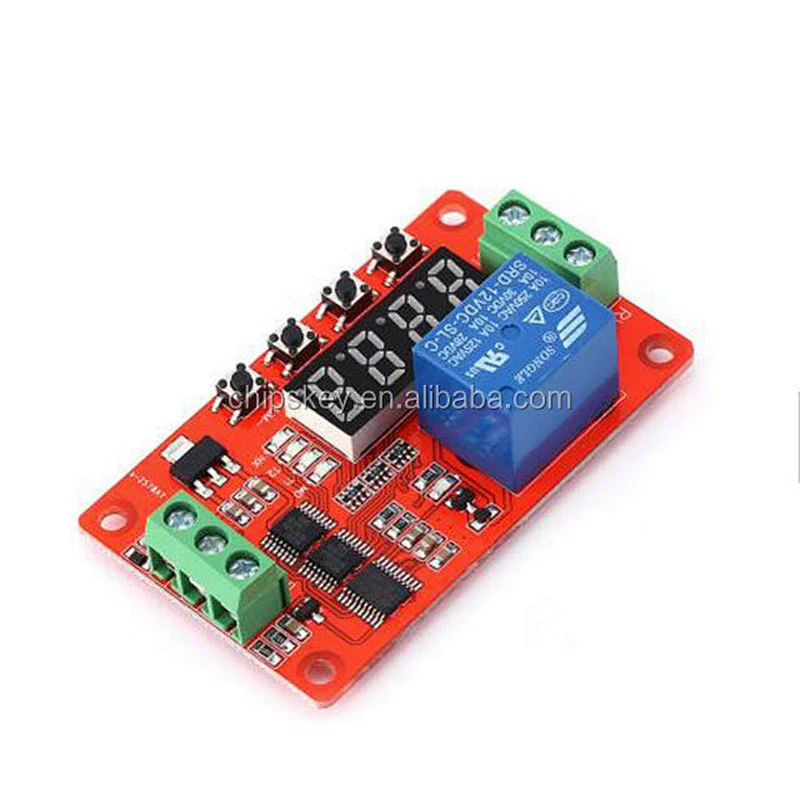

FRM01 Multifunction Relay Function
FRM01 multifunction relay control module designed for a variety of different needs of the user design, micro controller as the master unit, preset 18 kinds of functions, and can be based on user needs, customize and add other specific functions.
Genuine high-power relay module, high-power high-voltage transistor, red, blue signal lights, military-grade double-sided PCB board, cloth board consider a comprehensive, stable performance, it can be widely used in a variety of power control types of occasions.
Features:
1. The new upgrade to version 2.0, the module features eight kinds before, increasing to 18 species meet more application requirements;
2. Increase the supply anti-reverse function, and does not damage the wrong power supply module;
3. The use of top-quality high-voltage power modules, power discrete replace the previous system more stable and reliable;
4. Increase 0.1 seconds timing, timing accuracy from the previous 0.1 seconds, the upgrade to 0.01 seconds;
5. Add automatic power saving feature, users can customize the settings.
A function module
Users can display and keys, select the following 18 kinds of functions in one, function parameters can be set and saved, you can view the parameters of the current function of time parameter sets the minimum 0.1 seconds adjustable accuracy of better than 0.01 seconds, on specific setting instructions, can be obtained from vendors.
Tips: Function 1-8 power-start itself functions 9-18 need high pulse signal (high-level duration of not less than 20ms, hereinafter the same) trigger the start.
Function 1:
Timing pull: After power, time delay relay T1, T1 between 0.1 seconds -270 hours adjustable, CH1 interfaces to a high level pulse signal, repeat the above functions;
Function 2:
Timing off: when the power relay, the relay off delay time T1, T1 between 0.1 seconds -270 hours adjustable, CH1 interfaces to a high level pulse signal, repeat the above functions;
Function 3:
The timing pull off again: After power relay to not pull, the delay time T1 reaches the relay; time relay pull off after T2 arrival, delay time T1 and T2 in 0.1 seconds -270 hours adjustable from the interface to a high-level pulse signal CH1, repeat the above functions;
Function 4:
Then pull off the timing: After power, immediately pull the relay, the relay off delay time after arrival T1; T2 time after disconnecting relay arrives in 0.1 seconds -270 hour delay between the time T1 and T2 adjustable to a high level pulse signal CH1 interfaces, repeat the above functions;
Function 5:
Infinite loop timing mode 1: After power relay to not pull, the delay time T1 reaches the relay; time relay pull off after T2 arrive, and then repeat the above state, the delay time T1 and T2 0.1 sec adjustable between -270 hours, to a high level pulse signal CH1 interface, you can resume these functions;
Function 6:
Infinite Loop Timing Mode 2: After power, immediately pull the relay delay time T1 reaches the relay off; disconnect the arrival time T2 relay, then repeat the above state, the delay time T1 and T2 in 0.1 seconds adjustable between -270 hours, to a high level pulse signal CH1 interface, you can resume these functions;
Function 7:
Finite Loop Timing Mode 1: 5 on the basis of functionality, increase the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable between 1-9999 cycles NX times available to CH1 interfaces a high level pulse signal, we can resume these functions;
Function 8:
Finite Loop Timing Mode 2: 6 on the basis of the function, increasing the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable between 1-9999 cycles NX times available to CH1 interfaces a high level pulse signal, we can resume these functions;
Function 9:
Latching relay mode: CH1 interfaces to relay a high level pulse signal, relay, to give a high level pulse signal relay switches off.
Function 10:
Trigger relay mode: CH1 interfaces to relay a high signal, relay, high disappear, the relay off.
Function 11:
Pull the trigger timing: After power relay does not operate to a high level pulse signal CH1 interfaces, relay time delay T1, T1 between 0.1 seconds -270 hours adjustable, to repeat a high-level interface to CH1 pulse signal, repeat the above function;
Function 12:
Disconnect the trigger timing: After power relay does not operate to a high level pulse signal CH1 connector, relay, the relay off delay time T1, T1 between 0.1 seconds -270 hours adjustable repeated to CH1 Interface a high level pulse signal, repeat the above functions;
Function 13:
Then pull the trigger timing off: After power relay does not act, a high-level interfaces to CH1 pulse signal, the delay time T1 reaches the relay; time relay pull off after T2 arrival, and the delay time T1 T2 between 0.1 seconds -270 hours adjustable, CH1 interfaces to repeat a high level pulse signal, repeat the above functions;
Function 14:
Disconnect and then pull the trigger timing: After power relay does not operate to a high level pulse signal CH1 interfaces, immediately pull the relay, the relay off delay time T1 after the arrival; after arriving off time T2 relay, delay time T1 and T2 between 0.1 seconds -270 hours adjustable, to repeat a high level pulse signal CH1 interfaces, repeat the above functions;
Function 15:
Infinite loop timing mode 1: After power relay does not operate to a high level pulse signal CH1 interfaces, the delay time T1 reaches the relay; pull off the relay arrival time T2, and then repeat the above state, the extension when the time between T1 and T2 in 0.1 seconds -270 hours adjustable, CH1 interfaces to repeat a high level pulse signal, we can resume these functions;
Function 16:
Infinite Loop Timing Mode 2: After power relay does not operate to a high level pulse signal CH1 interfaces, immediately pull the relay, the relay off delay time T1 after arrival; off-time T2 after reaching relay, then repeat the above state, the delay time between T1 and T2 in 0.1 seconds -270 hours adjustable, CH1 interfaces to repeat a high level pulse signal, we can resume these functions;
Features 17:
Finite Loop Timing Mode 1: 15 on the basis of functionality, increase the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeat to CH1 interface to a high-level pulse signal, we can resume these functions;
Function 18:
Finite Loop Timing Mode 2: 16 on the basis of functionality, increase the number of cycles function, this time between T1 and T2 in 0.1 seconds -9999 seconds adjustable cycles NX adjustable between 1-9999 times, repeat to CH1 interface to a high-level pulse signal, we can resume these functions;
Two module interface
Module control terminal: There are 3-wire interface, all the terminals are the interface, user-friendly
1, DC +: DC power positive (with 5V, 12V and 24V modules to choose from)
2, DC-: DC power supply negative
3, CH1: Input Detection Interface, active high
Relay outputs: There are 3-wire interface, all interfaces are terminals
1, NO: normally open relay interfaces, relay before hanging, pull back and COM1 short
2, COM: Relay Common Interface
3, NC: normally closed relay interfaces, relay before the COM1 short, after the pull-vacant
Load capacity: normally open port maximum load capacity: DC 0-30V / 10A, AC 0-250V / 10A
NC port maximum load capacity: DC 0-28V / 10A, AC 0-125V / 10A
