- Model Number:1 Channel 5v Coupler Isolation Relay Module
- Type:integrated circuit, Drive IC
- Place of Origin:Guangdong, China, US
- Brand Name:Chipskey
- Part number:1 Channel 5v Coupler Isolation Relay Module
- Brand:MIC
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Packaging:Reel Tray Tube
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V

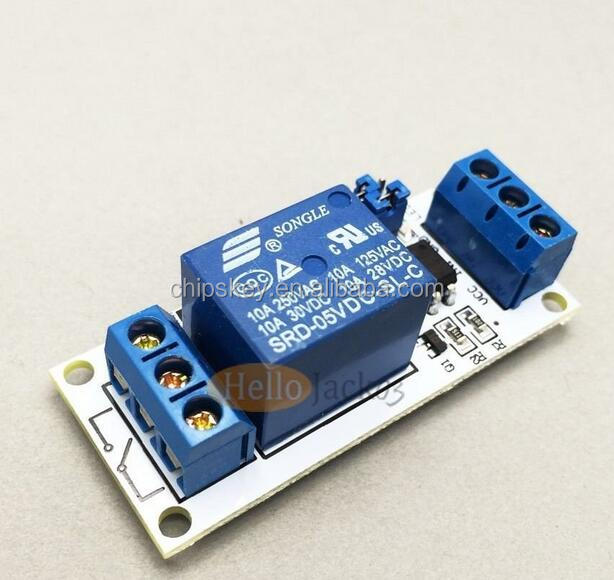

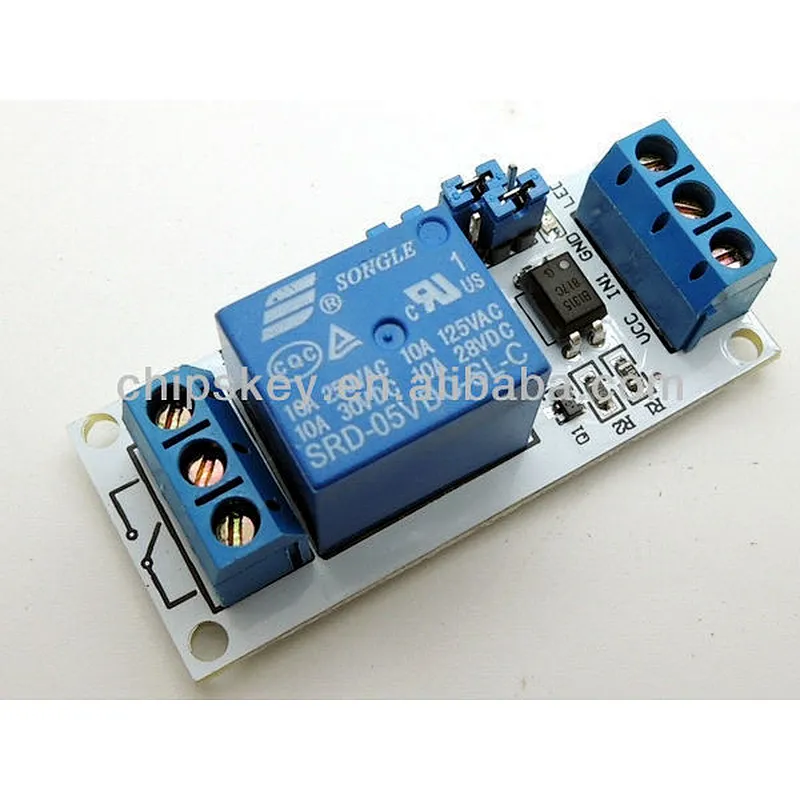

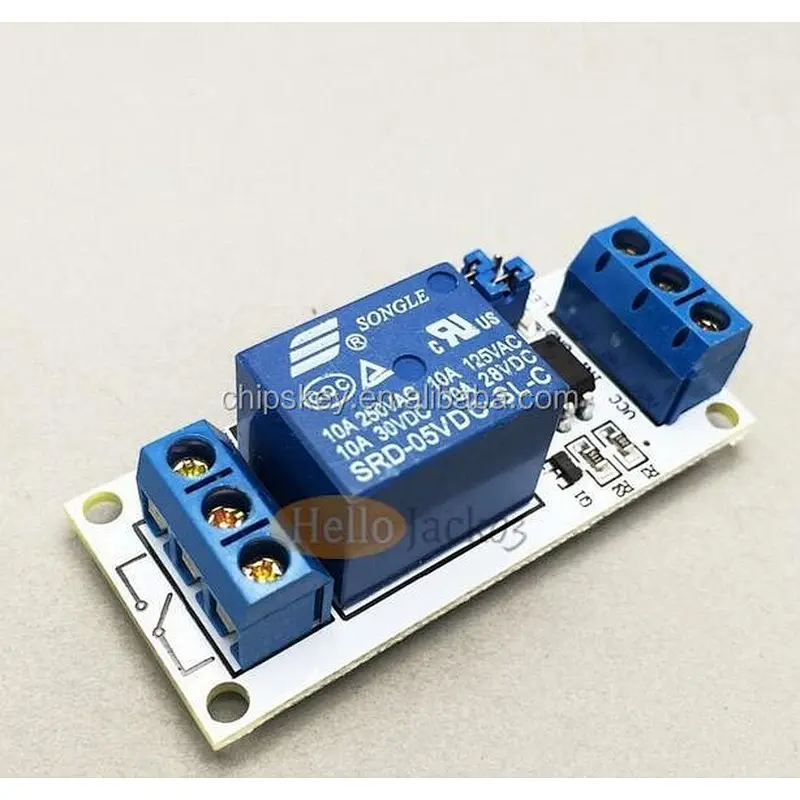

1 Channel 5v Coupler Isolation Relay Module
With optocoupler; 1 channel relay module; 1 relay; relay expansion board; high and low trigger For Arduinos
The relay module 1 relay, relay expansion board with optocoupler and LED warning lamp;
You can set the high and low trigger.
Relay can be powered separately JD-VCC;
IN signal input voltage :0-5V;
The relay default shipping 5V relay.
The large need 12V, 24V contact order.
The input signal may be 3.3V 5V
Are active low. Support 3.3 5V,
Above jumper. Can set high and low
Relay power and system power can be separated
A jump cap set. Jump cap disconnected. Can be powered separately
Only 1 channel can be high level trigger
2-way, 4-way, 8-way 16-way low level triggered
16 the 12V relay 12V supply. . Input 0-5V logic level (0-3.3V can) the board contained power module LM2576-5.0
1 channel relay module 2-channel relay module 4 relay module 8 relay modules are default 5V relay 16 relay module is the default 12V relay
