- Model Number:7113
- Type:Other
- Place of Origin:China, US
- Brand:Chipskey
- Category:Relay Shield
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V

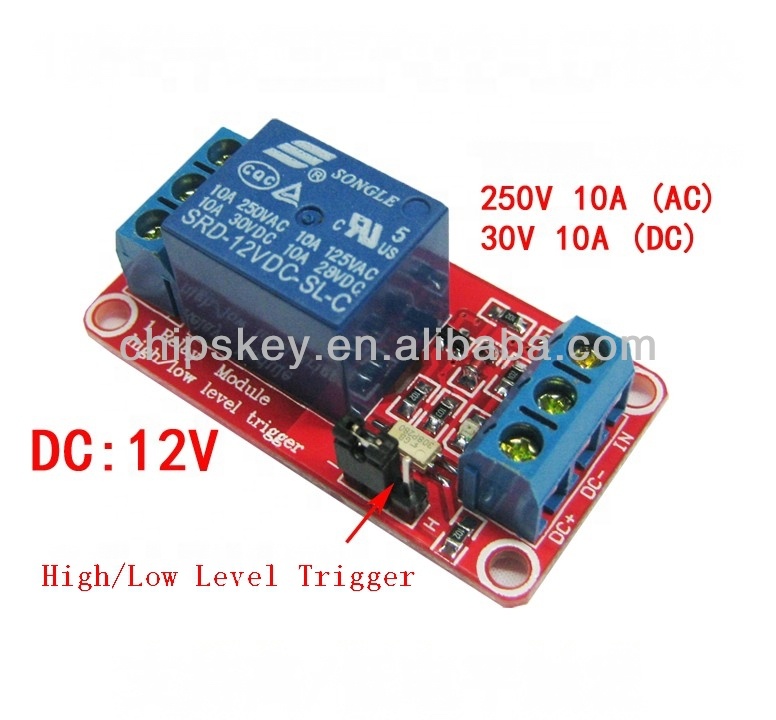

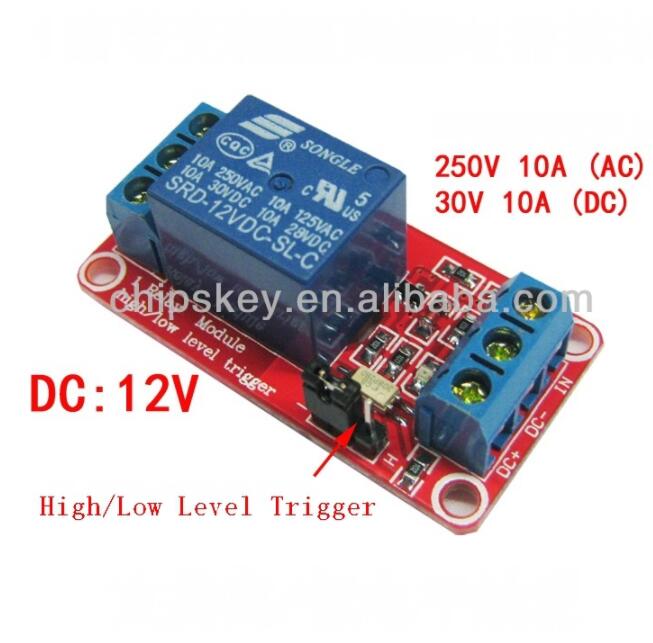

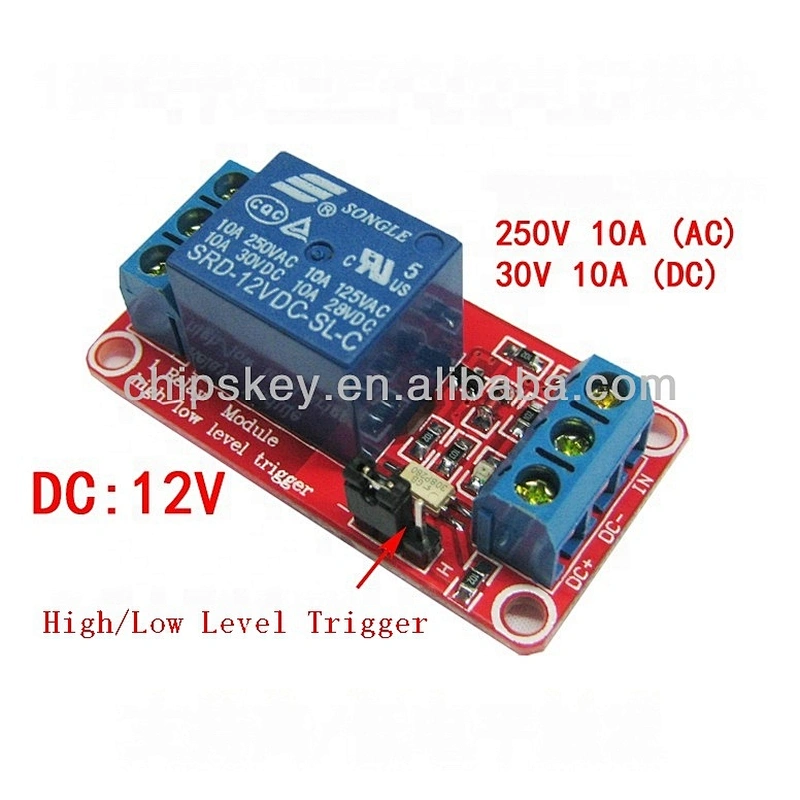

1 Channel 12V relay with Optcoupter, High/Low Level can cutover
One module description :
1, the module uses genuine quality relay , normally open interfaces Maximum load : AC 250V/10A, DC 30V/10A;
2, using SMD optocoupler isolation , driving ability , stable performance ; trigger current 5mA;
3, the module voltage is 5V, 9,12 V, 24V are available ;
4 , the module can be set to high or low triggered by jumper ;
5 , fault-tolerant design , even if the control line is broken , the relay will not operate ;
6 , the power indicator ( green ) , relay status indicator ( red )
7 , interface design humane, all interfaces can be connected directly via terminal wiring leads , very convenient
8 , module size : 50mm * 26mm * 18.5mm ( L * W * H )
9 , has four mounting bolts holes , hole 3.1mm, 44.5mm * 20.5mm pitch
Two module interface :
1, DC +: positive power supply ( voltage required by the relay , there 5V.9V.12V and 24V choice )
2, DC-: negative power connection
3, IN: can be high or low level control relay
Relay outputs :
1, NO: normally open relay interface, the relay before the vacant after the pull shorted with COM
2, COM: Common Interface Relays
3, NC: normally closed relay interface relay shorted with COM ago , after the pull- vacant
High and low trigger selection ends :
1 short jumper with LOW LOW triggered when connected ;
2 short jumper with high high trigger .
