- Model Number:24044
- Type:RF/Wireless Development Boards and Kits
- Place of Origin:China
"product description
Overview

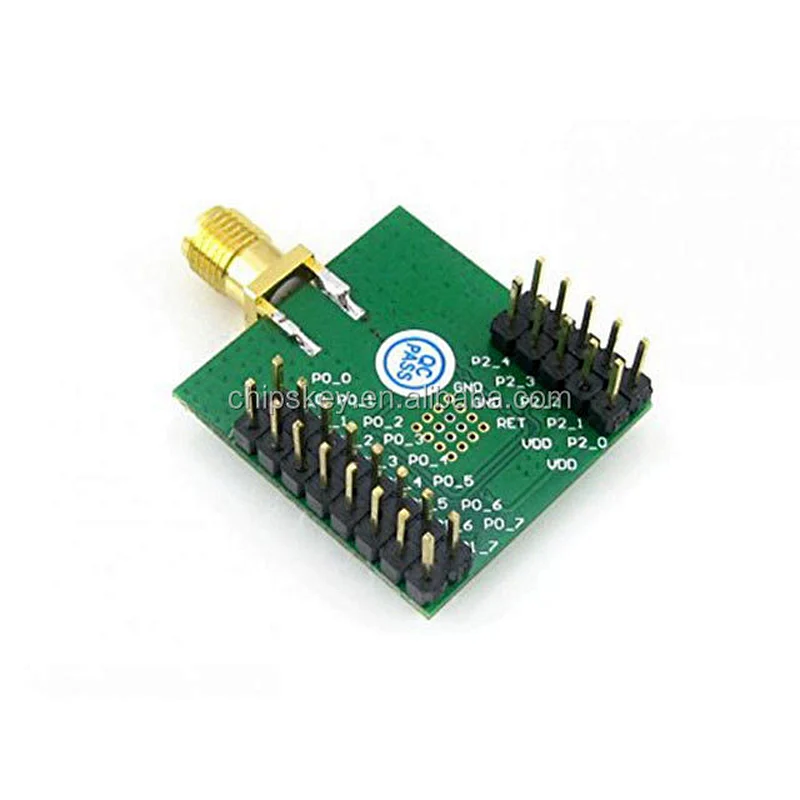

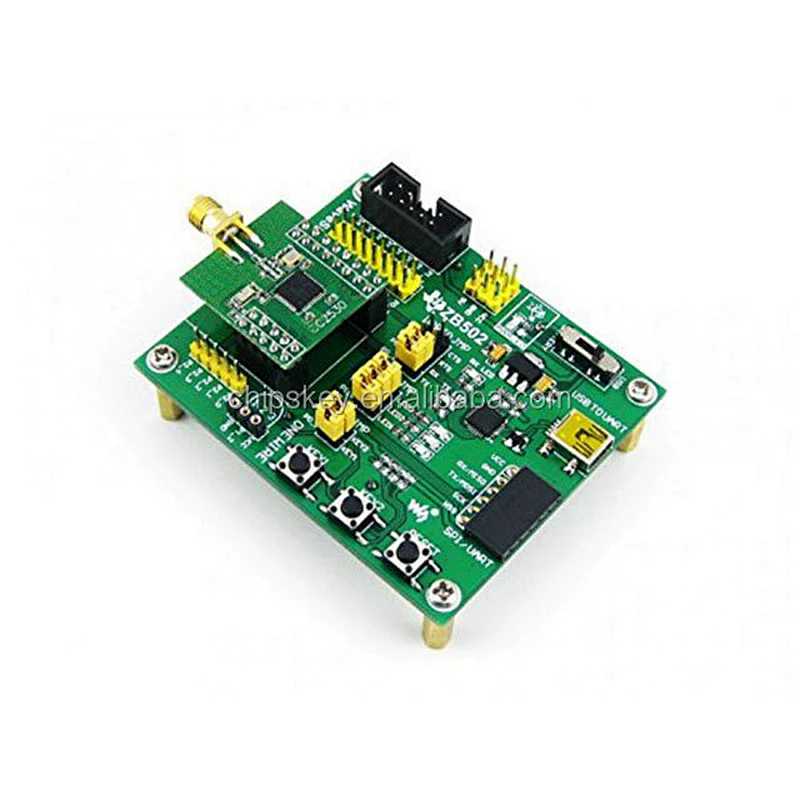

Core2530 is a ZigBee module based on CC2530F256. Basically, this module can be used in two ways:
- Develop the application with the provided firmware.
Combined with the firmware we provided, this is a simple ZigBee wireless UART module that is as easy to use as any other UART module and does not require knowledge of complex ZigBee specifications
- Develop your own firmware.
characteristic
- Just as easy as any UART module
- Provided firmware: coordinator, router, terminal equipment
- The router firmware is preinstalled by default
- Support for sending big data packets and fast broadcast via UART
- Support for programming via UART (thanks to Bootloader, serial port required)
- Support PC software configuration: working mode, UART port, baud rate, signal channel and so on.
- Automatic networking (requires at least 1 coordinator and 1 router)
- Real time monitoring of signal strength between coordinator, router and terminal equipment
specification

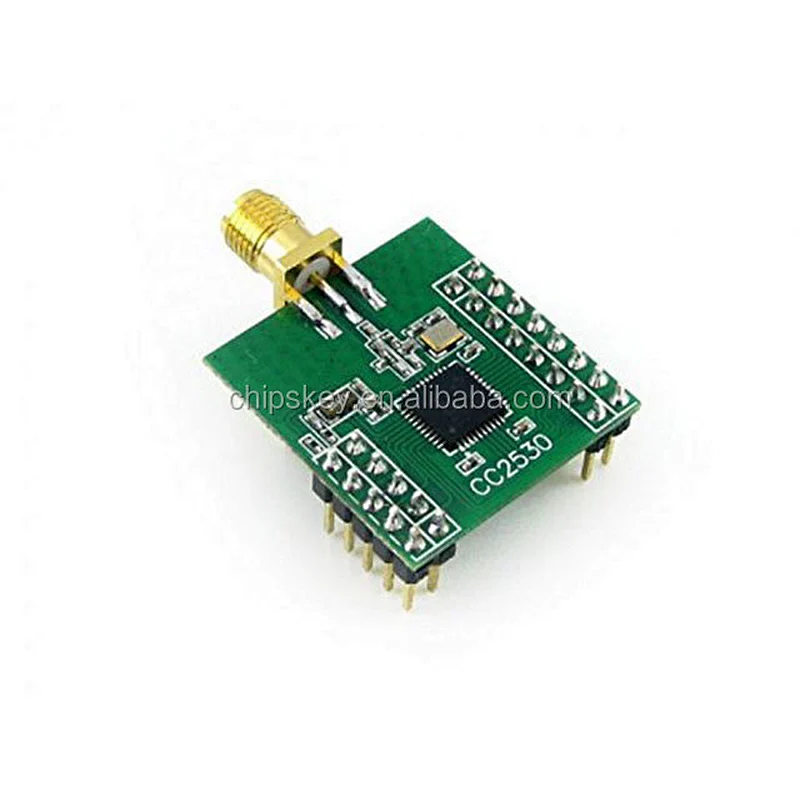

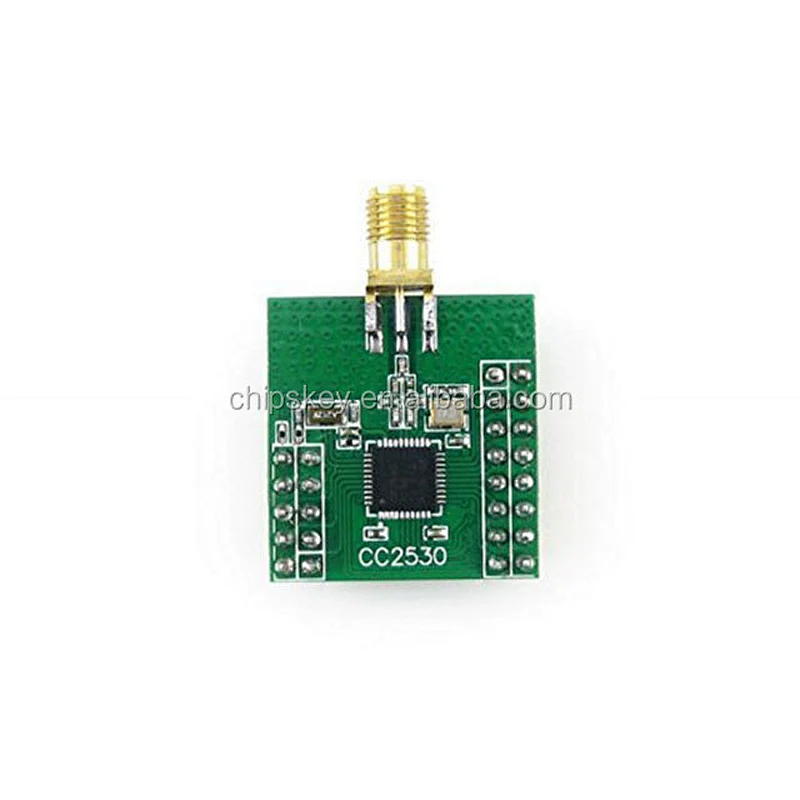

Onboard chip: CC2530F256RHAR
- communication distance (open and wide operating environment):
Absolute maximum: over 350 meters
Stable communication: more than 250 meters
Automatic connection: more than 120 meters
- Frequency range: 2.4GHz
- Wide supply voltage range (2V-3.6V)
- Operating temperature: -40 ℃ ~ 85 ℃
- Serial baud rate: 38400bps (default), software configuration different baud rate
- Expand pinheader: All I / Os
- Pinheader pitch: 2.54mm
- Left and right pinheaders spacing: 22.86mm (9x2.54mm)
- Antenna: 2.4G 2DB 360 ° Omnidirectional
product information
Package size 4 x 2 x 2 inches"
