- Model Number:1047
- Type:Drive IC
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Part number:YS 51 Smallest Single Chip System Board Development Board
- Brand:MIC
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Packaging:Reel Tray Tube
- Maximum Operating Temperature:-40°C ~ 125°C
- Operating Temperature:-40°C ~ 125°C
- Dissipation Power:1W-6W
- Supply Voltage:1.5V-6V

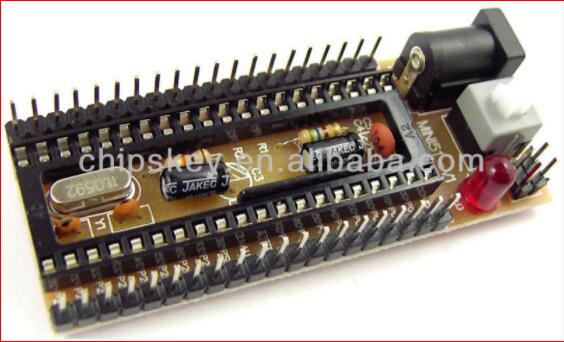

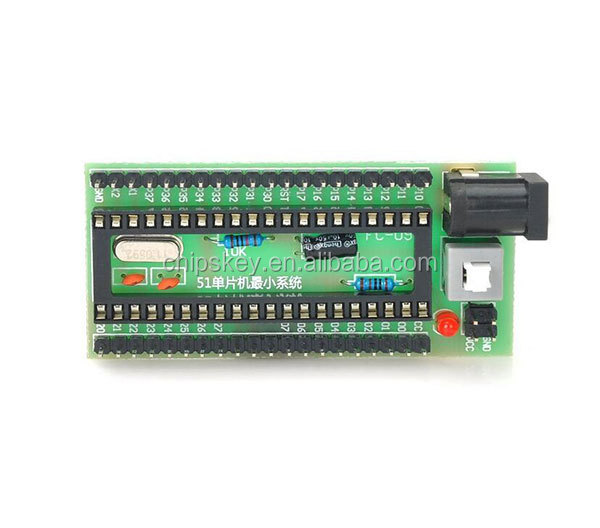

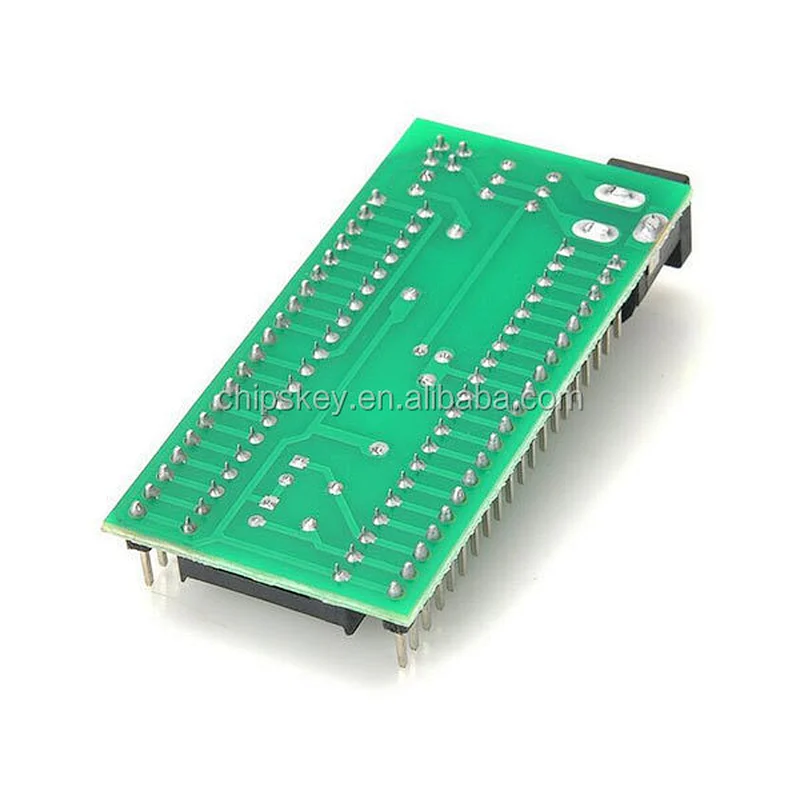

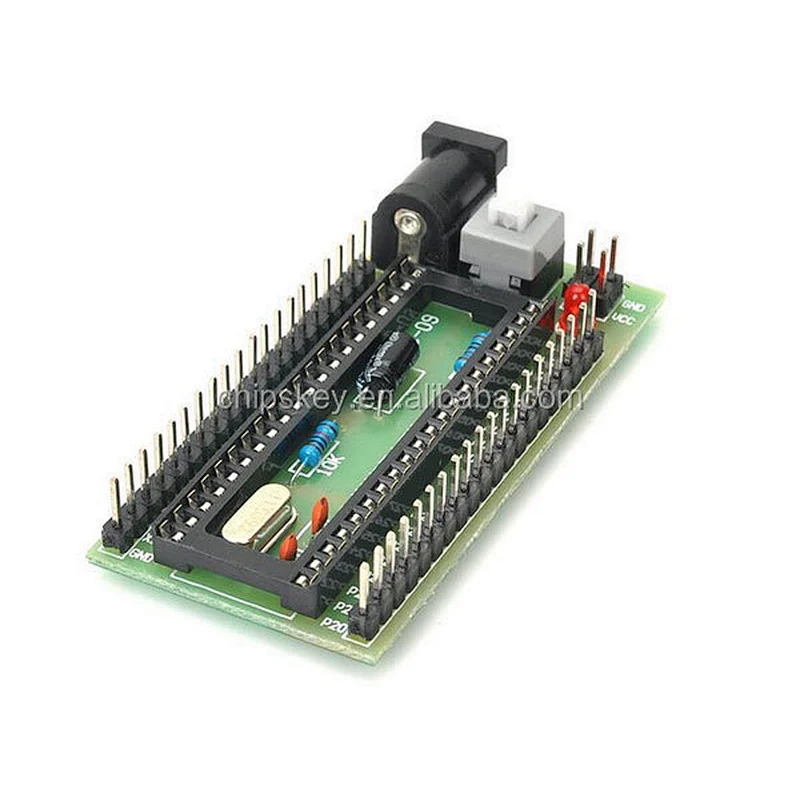

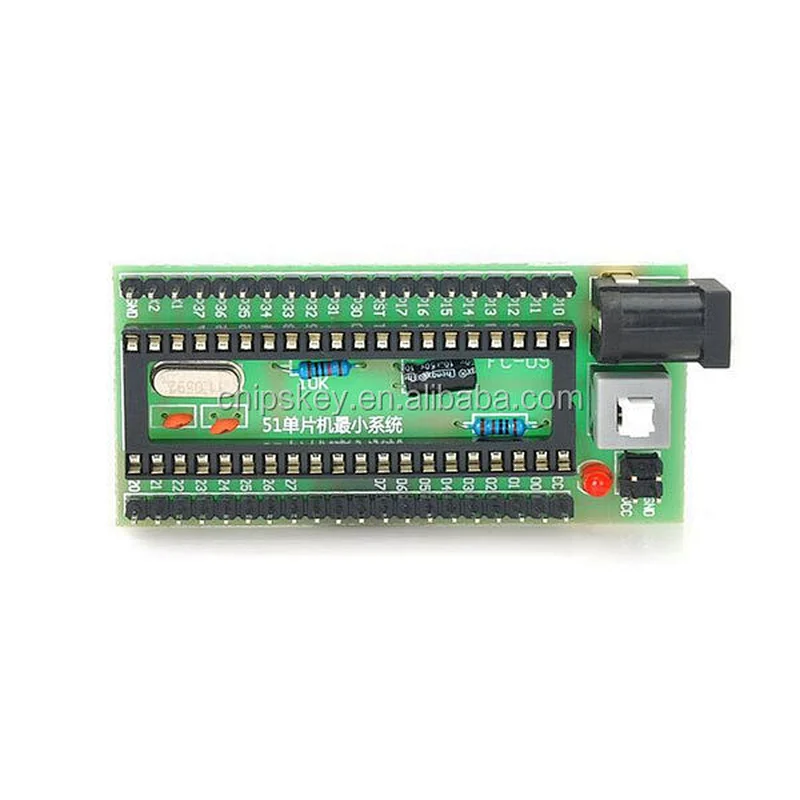

51 MCU minimum system board STC89C52 development board
1.40 pin all leads.
2 classic 51 minimum system, eliminating the need for welding trouble
3 Crystal: 11.0592M
4 support chips: STC89C52 STC12C5A60S2 STC11/10x series AT89S52 chip and the chip pin compatible
5, a power switch, to facilitate the experiments.
6. DC-005 power seat (supporting transposon is 5.5 * 2.1)
7. 2-way external expansion VCC, GND, as shown in the row of needles shown.
8. The 8 Parts built-in design, space-saving.
9. Board size: 6.5cm * 3.1cm
