- Model Number:29192
- Type:RF/Wireless Development Boards and Kits
- Place of Origin:China
- SKU:29192
- Delivery Time:24hours
- Quality:New&Original
- Application:Great for DIY project

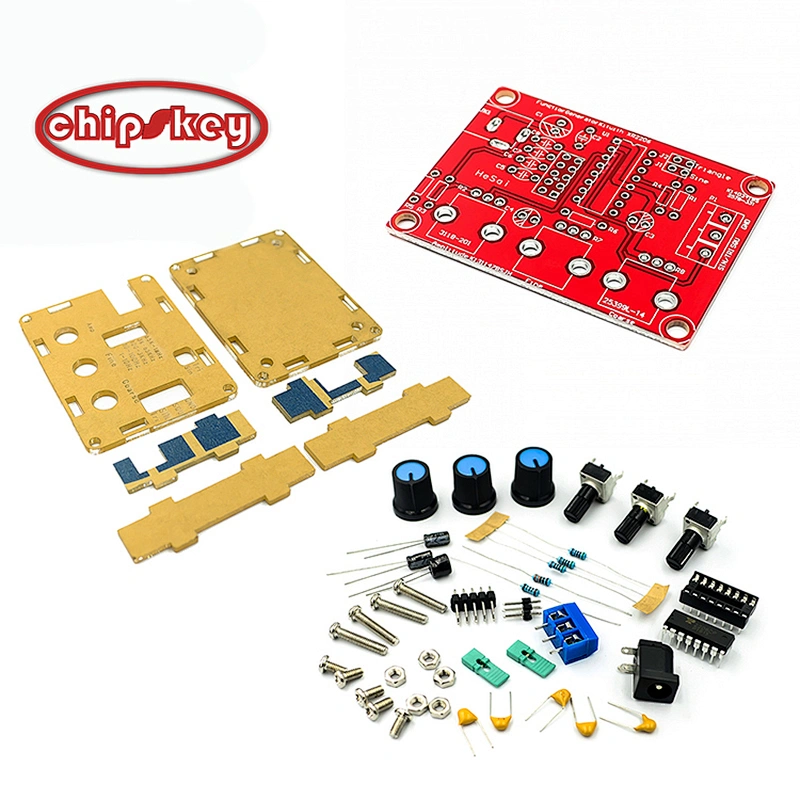

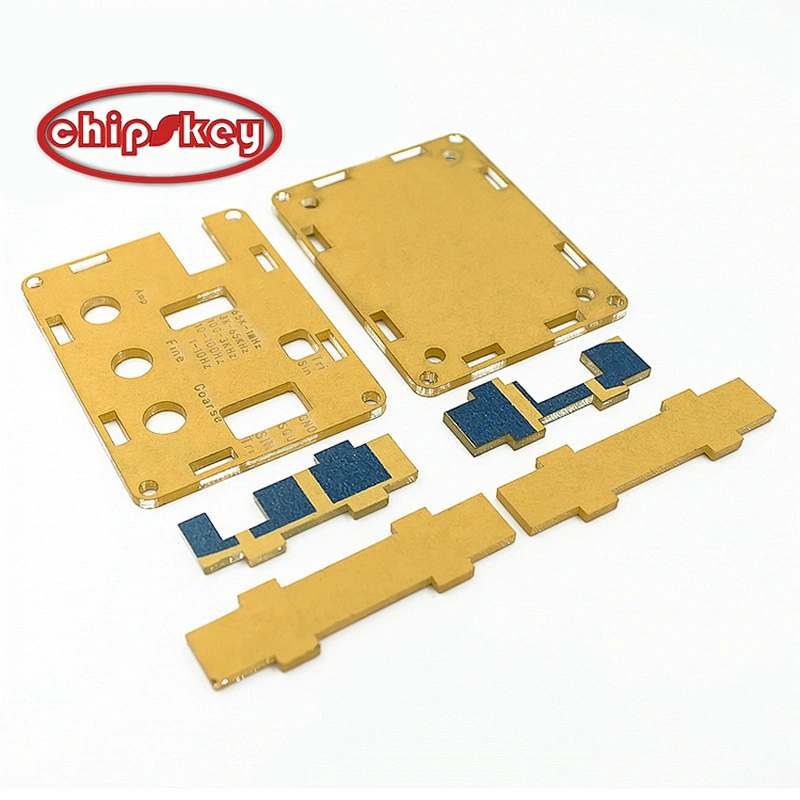

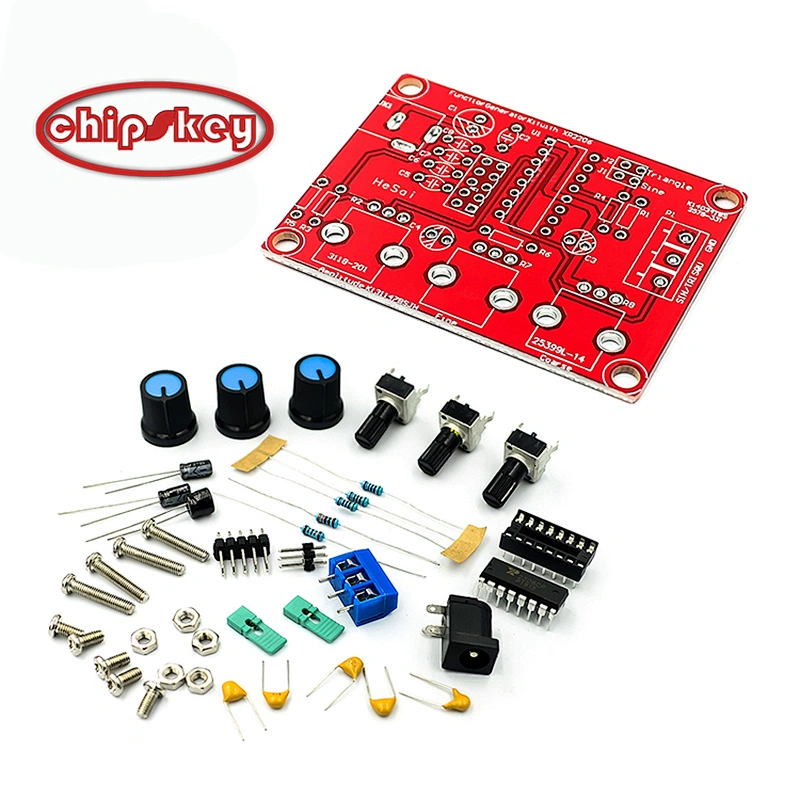

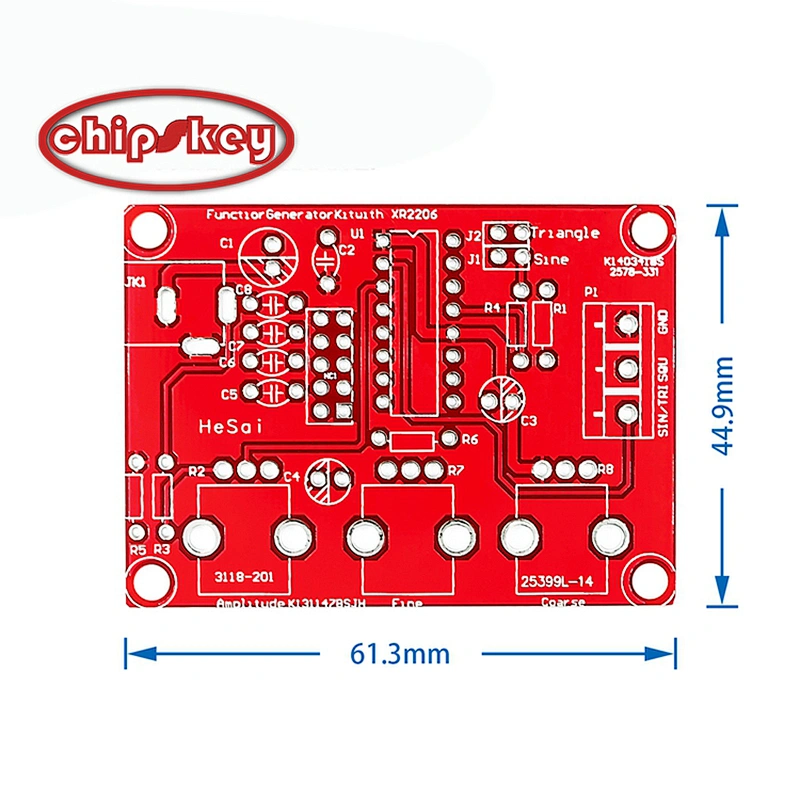

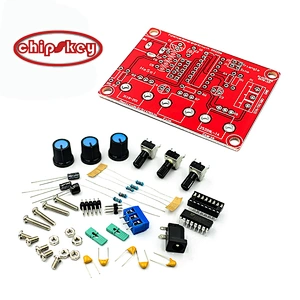

XR2206 Function Signal Generator DIY Kit Sine Square Output 1HZ-1MHZ
Circuit characteristics:Can generate sine wave, triangle wave, square waveFrequency can be from 1HZ-1MHZAdjustable frequency and amplitude;Five-digit precision resolution;The frequency adjustment has coarse and fine adjustment;Wide power supply range, can use external power supply 9-12V or 9V battery;All in-line components, few components, simple installation and debugging.
Technical Specifications:Voltage Supply: 9-12V DC InputWaveforms: Square, Sine & TriangleImpedance: 600 Ohm + 10%Frequency: 1Hz - 1MHzSINE WAVE? Amplitude: 0 - 3V at 9V DC input? Distortion: Less than 1% (at 1kHz)? Flatness: +0.05dB 1Hz - 100kHzSQUARE WAVE? Amplitude: 8V (no load) at 9V DC input? Rise Time: Less than 50ns (at 1kHz)? Fall Time: Less than 30ns (at 1kHz)? Symmetry: Less than 5% (at 1kHz)TRIANGLE WAVE? Amplitude: 0 - 3V at 9V DC input? Linearity: Less than 1% (up to 100kHz) 10mA
Company Profile
Chipskey Technology CO.,LTD. was built in 2010 . We mainly manufacture and export 3D Printer, Board&shield for arduinos, sensor module for arduinos, Smart Car Robot, Smart DOF Robot, Servo, DIY toys ,Science toys, Raspberry PI Accessories etc. After 9years development, our company has grown into a large high-tech group corporation integrating industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules for arduinos & Modules For Raspberry PI ,Smart Home Products
WareHouse

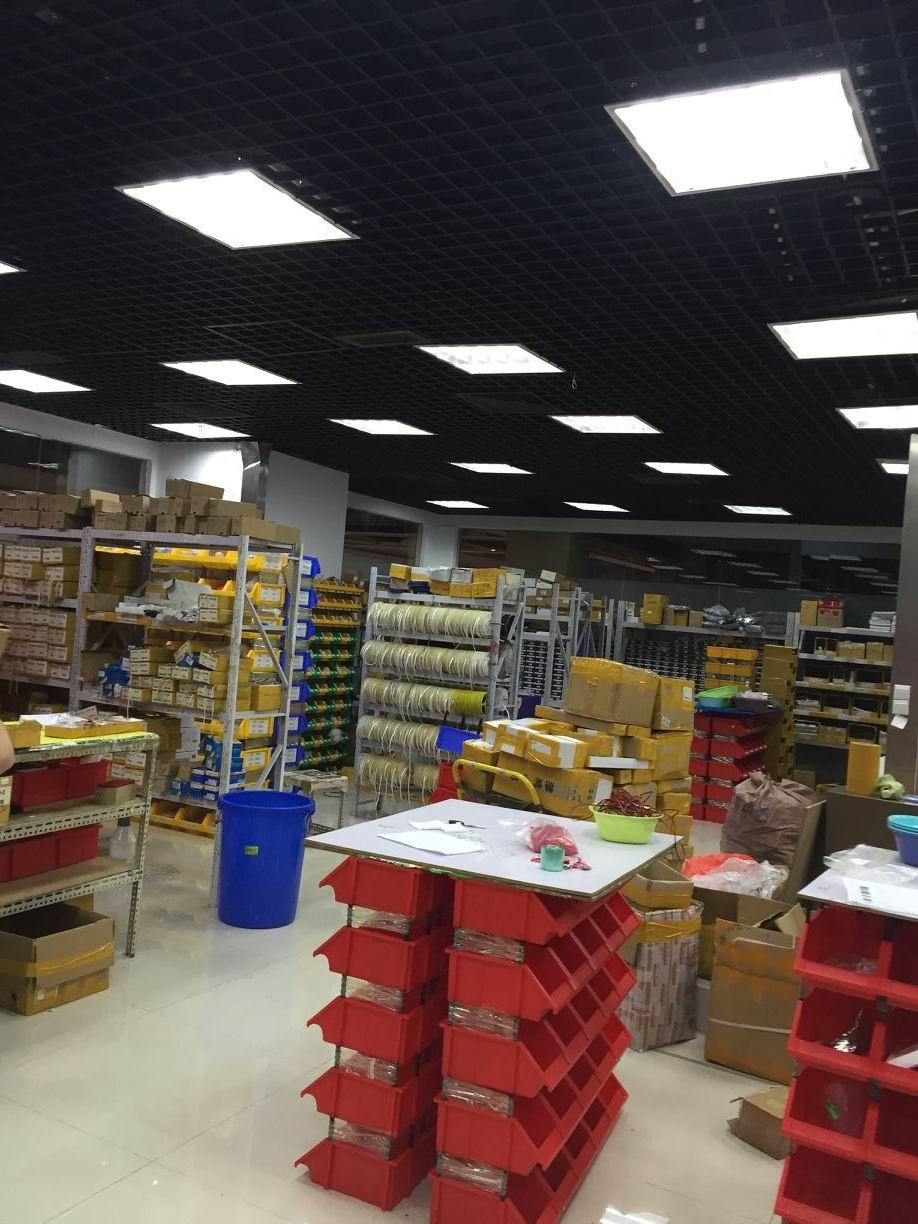

This is our Warehouse ,We Can Make A Fastest Shipment per Day
