- Model Number:19J026
- Type:Embedded System Development Boards and Kits
- Place of Origin:China

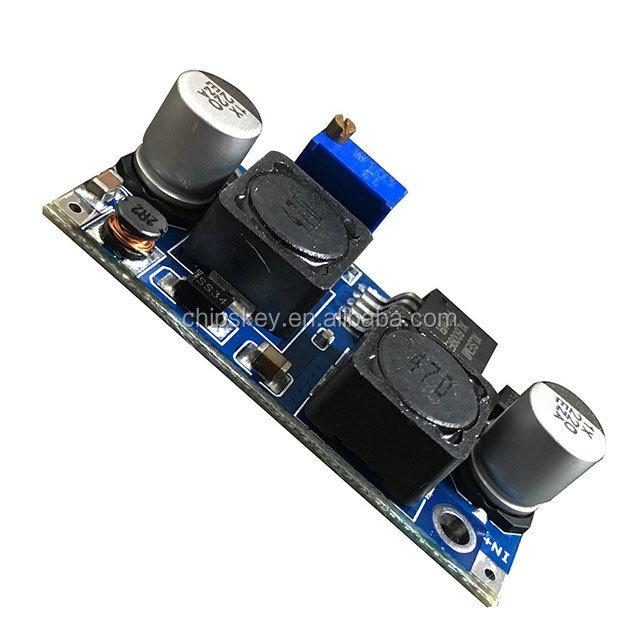

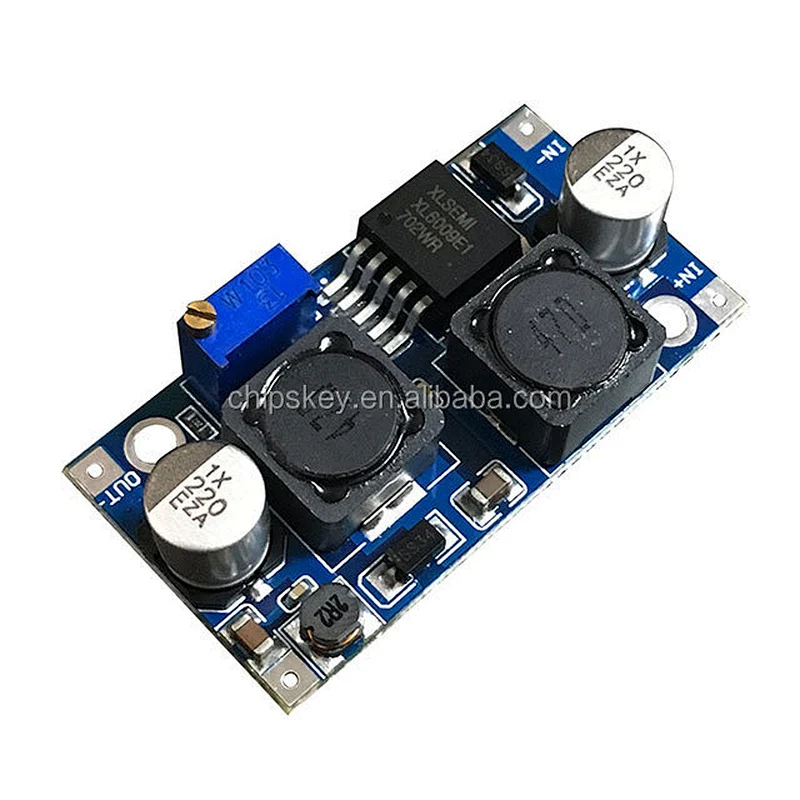

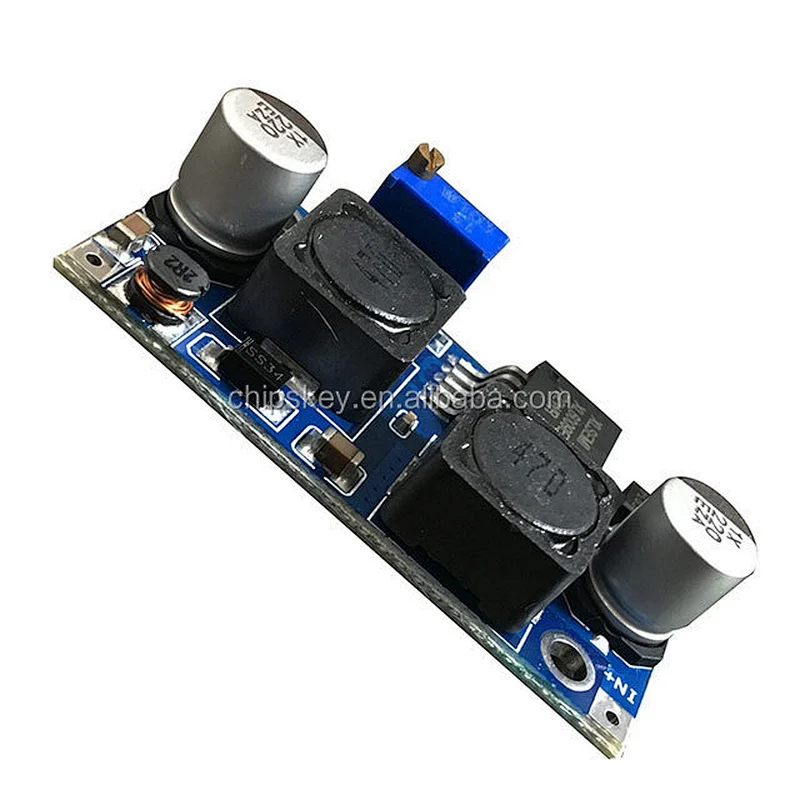

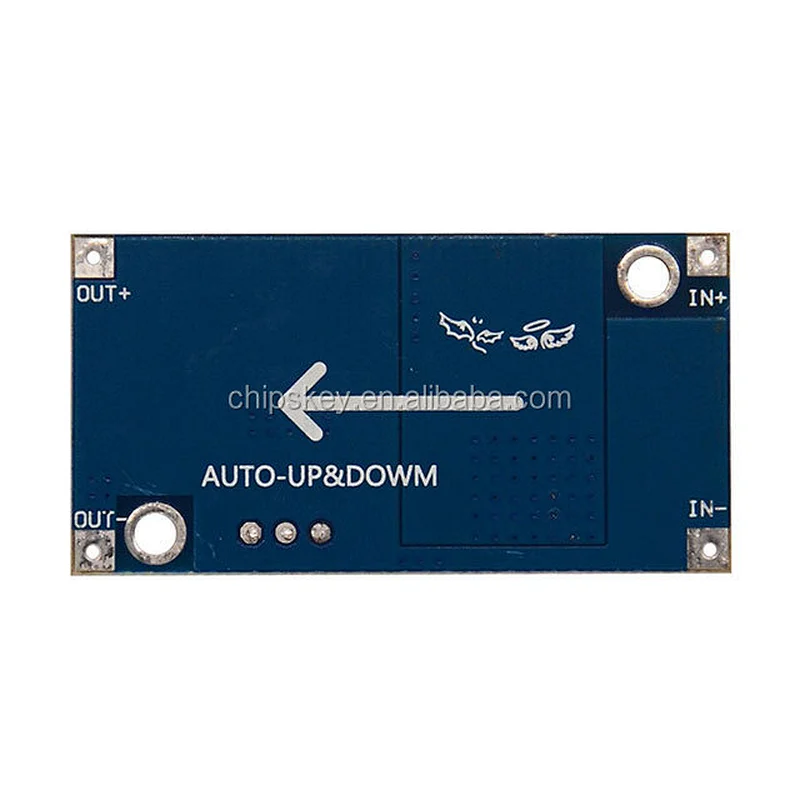

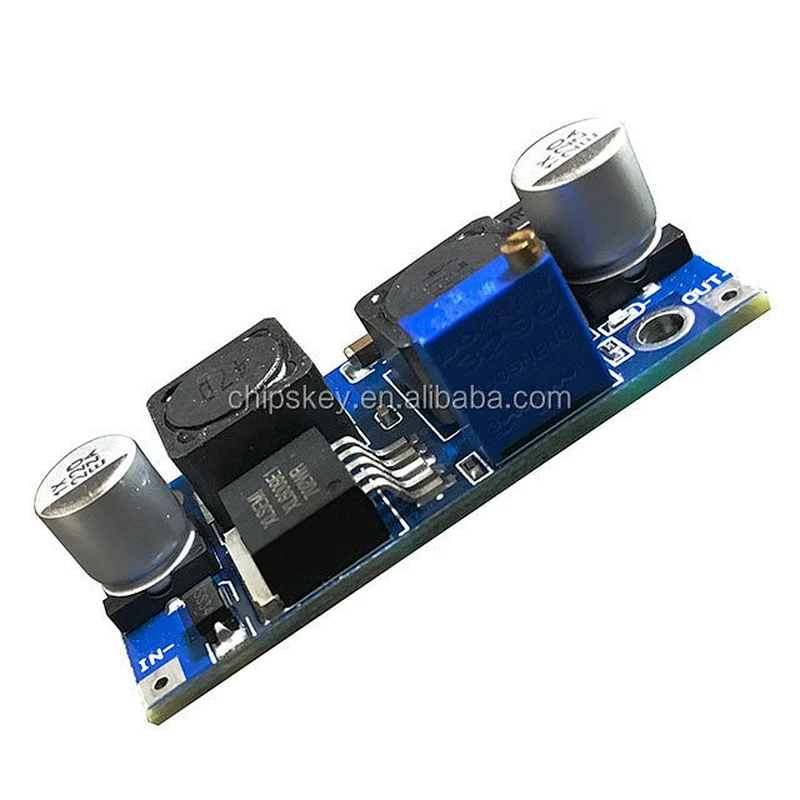

XL6009 400KHz 4A switching current booster module
description:
When the car pulled to the starting voltage is below 7V or less, the voltage at high engine speeds up to 15V or higher. For the work is difficult to work on 12V appliances, this automatic buck module solves this problem, regardless of the input voltage is 5V or 12V or 32V, the output can be stabilized at 12V.
Wide input voltage 5V ~ 32V;
Wide output voltage of 1.25V ~ 35V (with automatic lifting pressure within the operating range, any voltage input can be arbitrarily regulated voltage output);
Built 4A efficient MOSFET switch, so the efficiency of up to 94%; (LM2577 current is 3A)
Ultra-high switching frequency 400KHz, ripple smaller and smaller. (LM2577 frequency only 50KHz)
Applications:
Car regulator, solar photovoltaic, wind power and other voltage instability applications.
Technical Parameters:
Model specifications: DSN6000AUD automatic buck module
Module Properties: non-isolated boost (BOOST)
Rectification: Non-Synchronous Rectification
Input range: 3.8V ~ 32V
Output Range: 1.25V ~ 35V
Input Current: 3A (maximum), no-load 18mA (5V input, 8V output, the higher the load is less than 18mA voltage, load current increases.)
Conversion efficiency: <94% (the greater the pressure, the lower the efficiency)
Switching Frequency: 400KHz
Output ripple: 50mV (the higher the voltage, the greater the current, the greater the ripple)
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Operating temperature: -40 ℃ ~ + 85 ℃
Dimensions: 48mm * 25mm * 14mm (L * W * H)
