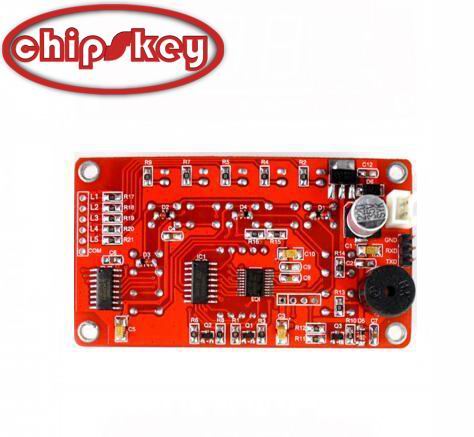

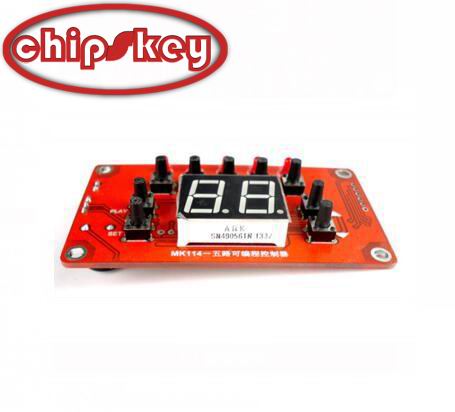

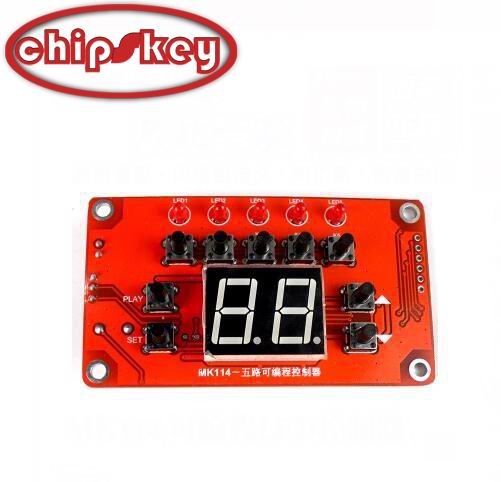

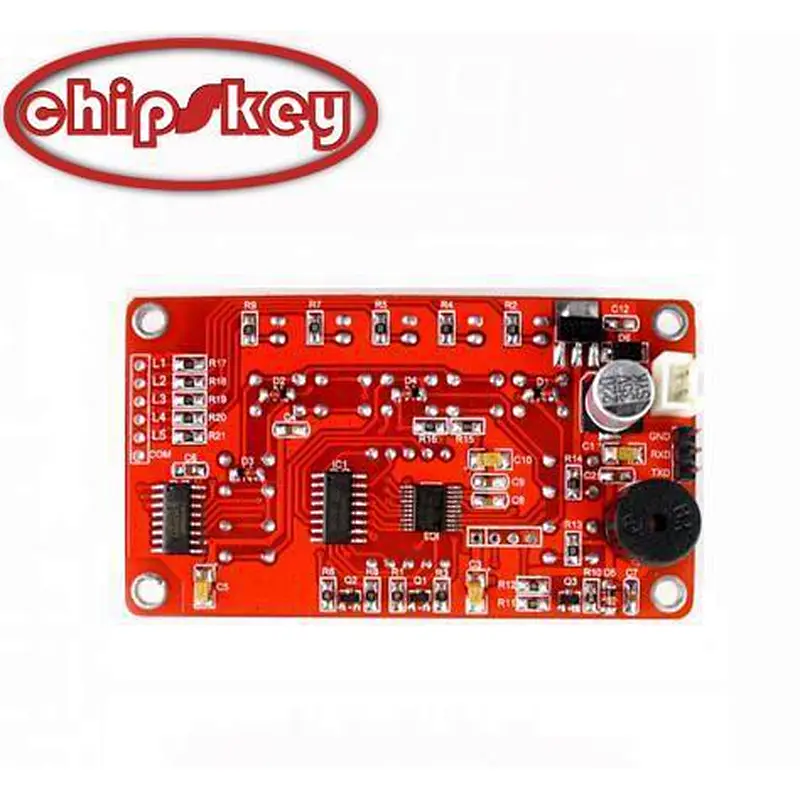

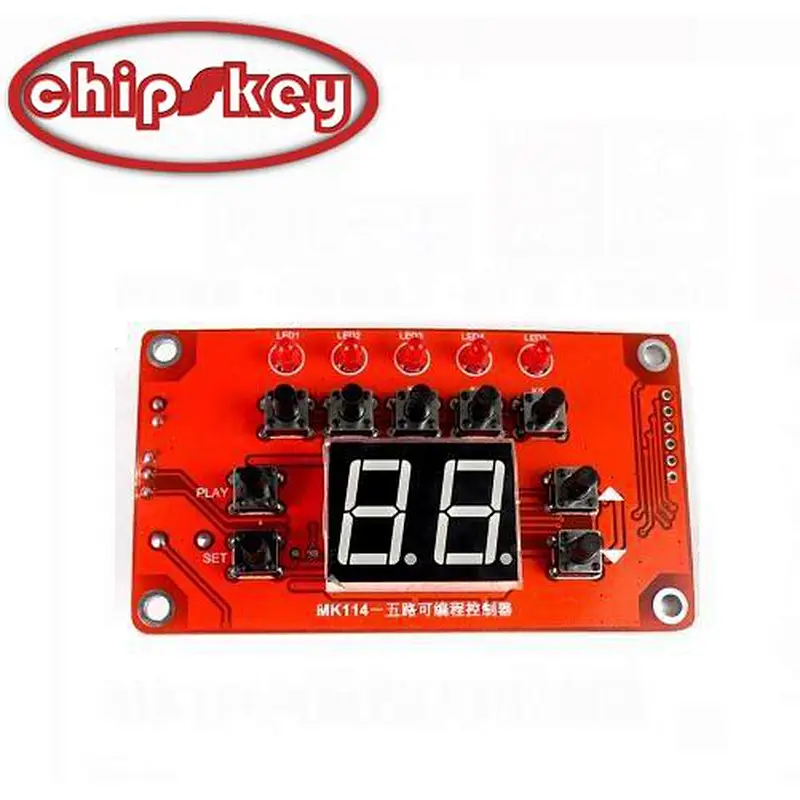

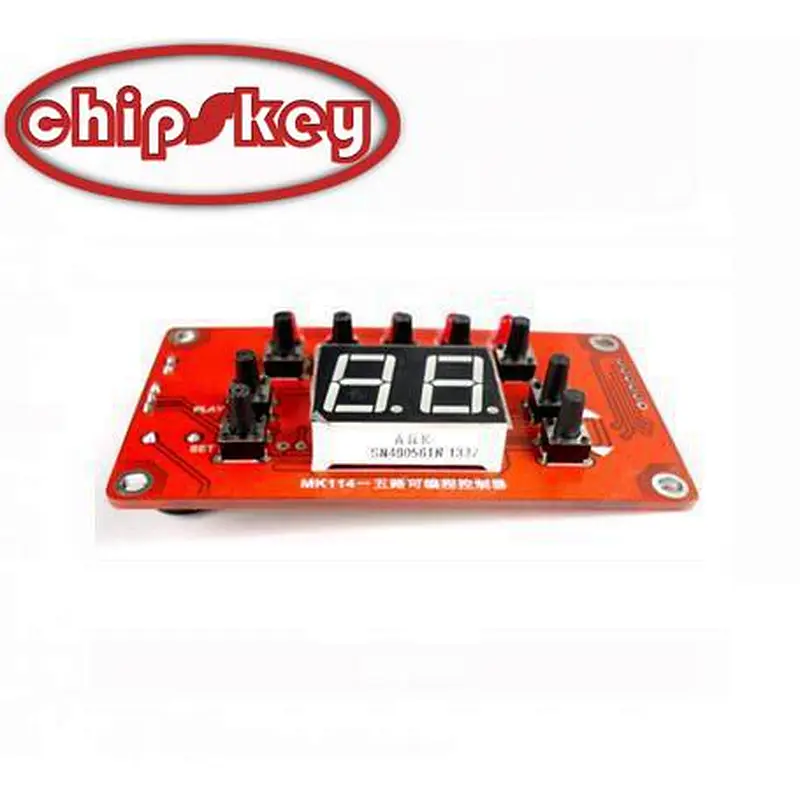

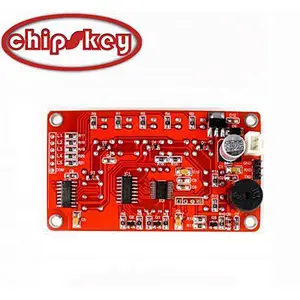

XH-M114 programmable 5 output expansion controller offline programming micro PLC custom output

• Model Number:30189
• Type:integrated circuit
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• SKU:30189
• Brand:chipskey

XH-M114 programmable 5 output expansion controller offline programming micro PLC custom output

Output number of sections: 5 power supply: 12V

Instructions:

12V power supply, the automatic implementation of programming, then you can see the indicator flashing according to programming

Press SET to display P1, then press SET to display 01, the state of LED1 ~ LED5 in the first time period can be programmed

Press up and down to switch 01-99 segment, edit is complete, press PLAY to begin execution

P2: Play speed 0.1S-2S

P3: Number of executions, 01-99

P4: Clear the data
