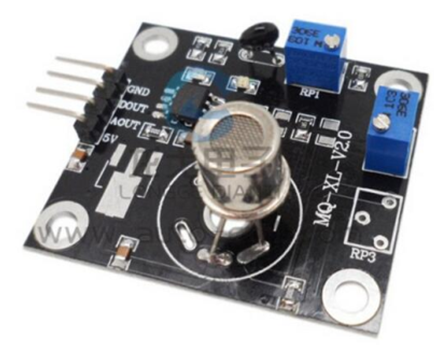

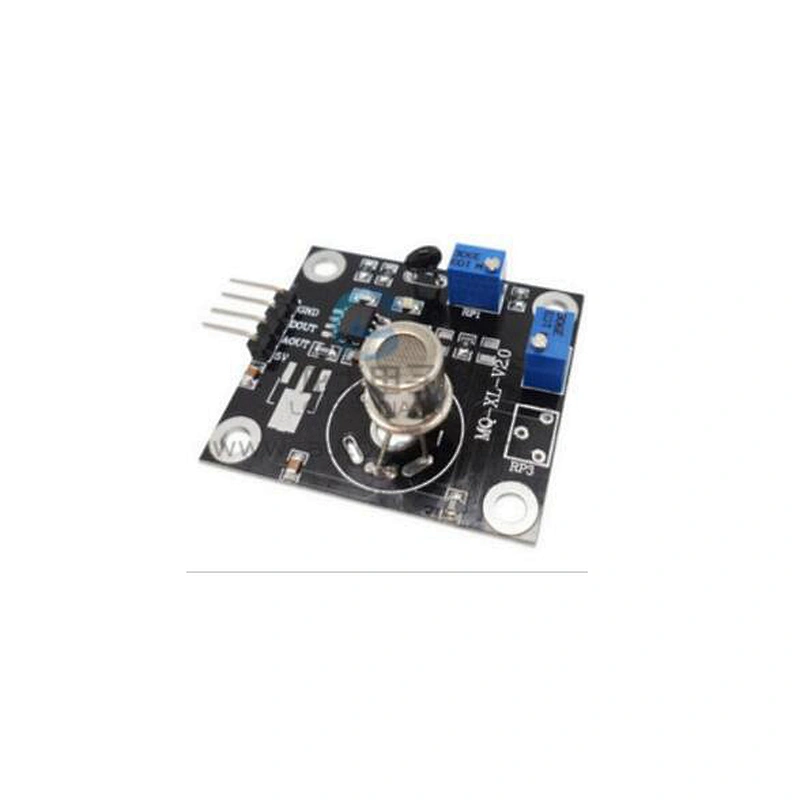

WSP1110 Nitrogen Dioxide Sensor NO2 0.1-10ppm Detection Module

• Model Number:18i123
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• SKU:18i123

WSP1110 Nitrogen Dioxide Sensor NO2 0.1-10ppm Detection Module

Model Number:WSP1110

WSP1110 Nitrogen Dioxide Sensor NO2 0.1-10ppm Detection Module Detector Fast response reset function, simple drive circuit SKU:10702

Features:
- High sensitivity, stable performance and long life time
- Small size, light weight
- 5V voltage, low consumption
- Fast response reset function, simple drive circuit

Specification:
- Detect sensor: NO2
- Concentration: 0.1-10ppm
- Loop voltage Vc: <=24V DC
- Heat voltage Vh: 5.0V+/-0.2V AC/DC
- Loading resistance: adjustable
- Heat resistance Rh: 160+/-5ohm
- Heat consumption Ph: <=160mW
- Sensitive material surface resistance: 1MΩ-10MΩ(in 3ppm NO2)
- Sensitivity: Rs(3ppm NO2/Rs(air)>=20
- Concentration gradient: (R3ppm/R1ppm NO2)>=4
- Temperature/Humidity: 20°C+/-2°C; 65%+/-5%RH
- Standard test circuit: Vc: 5.0V+/-0.1V; Vh: 5.0V+/-0.1V
- Pre-heat time: >=48H
