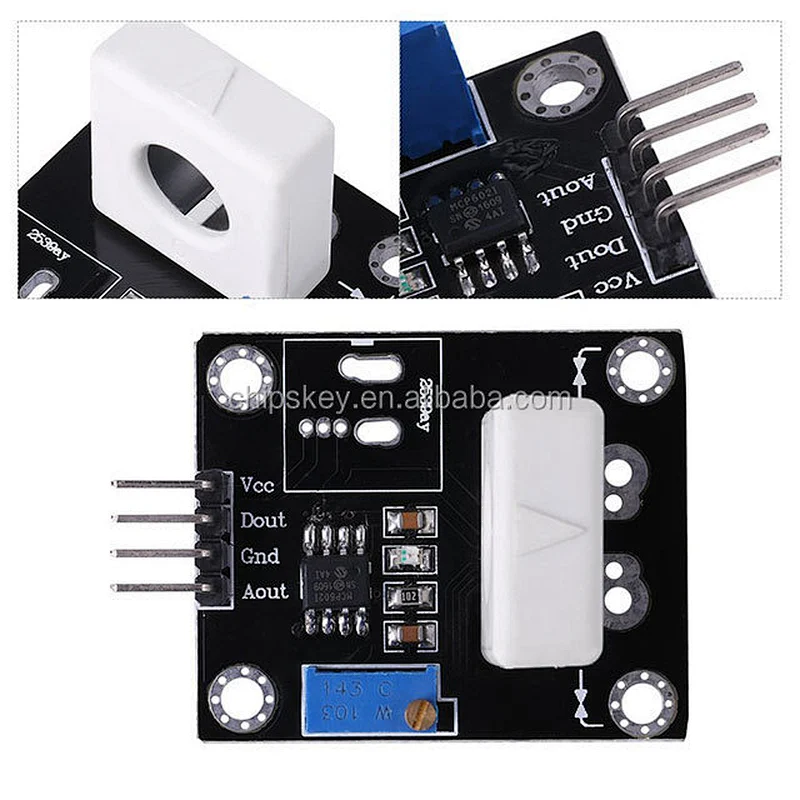

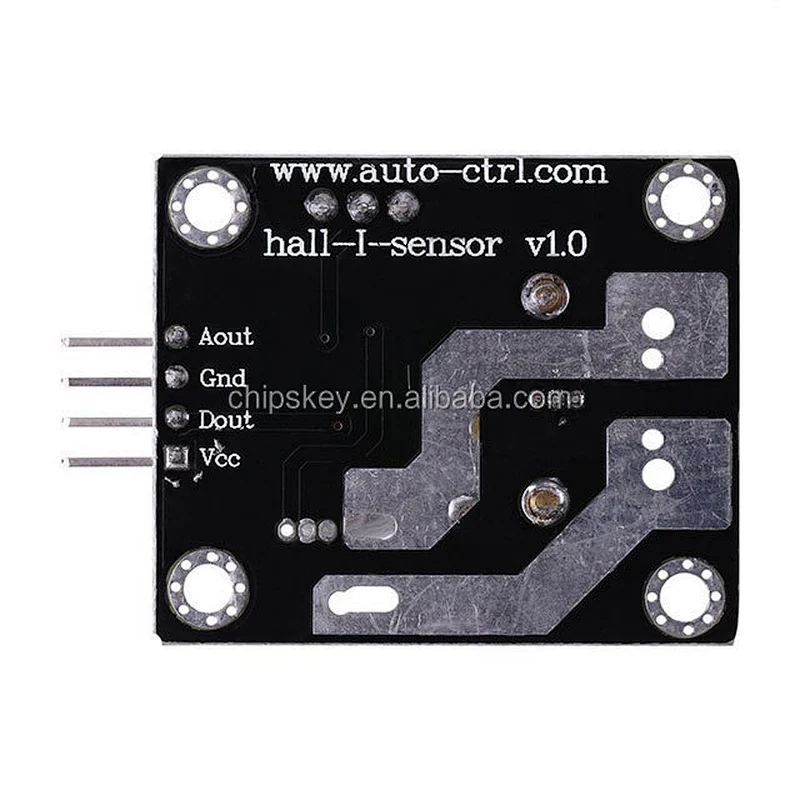

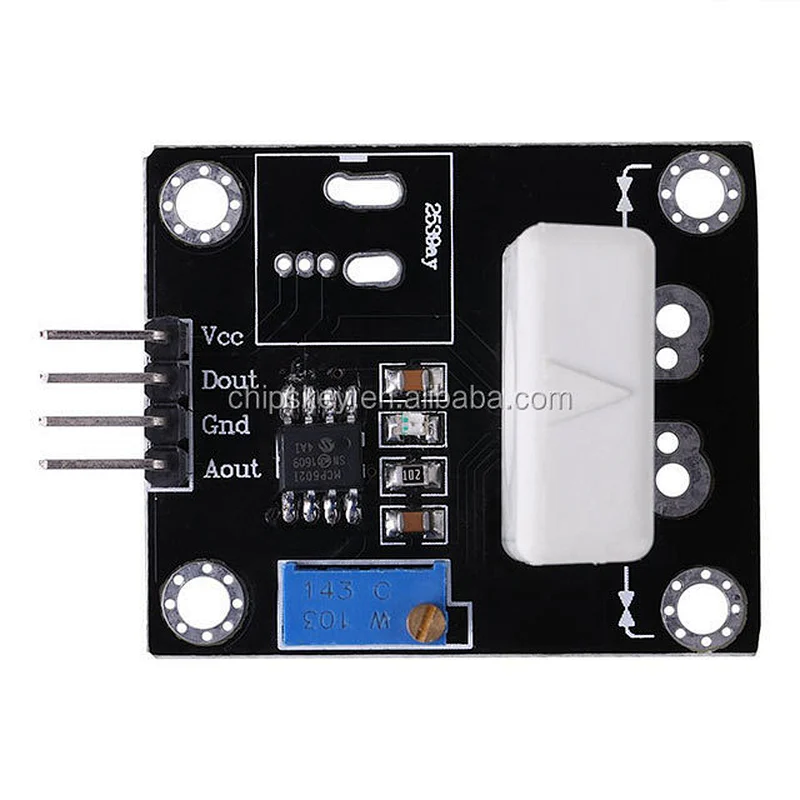

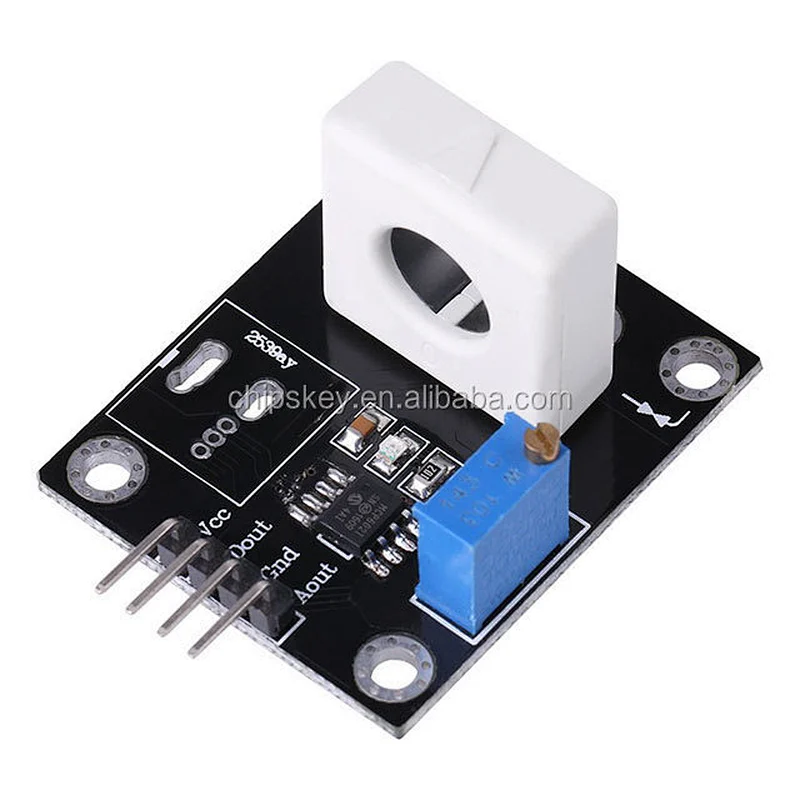

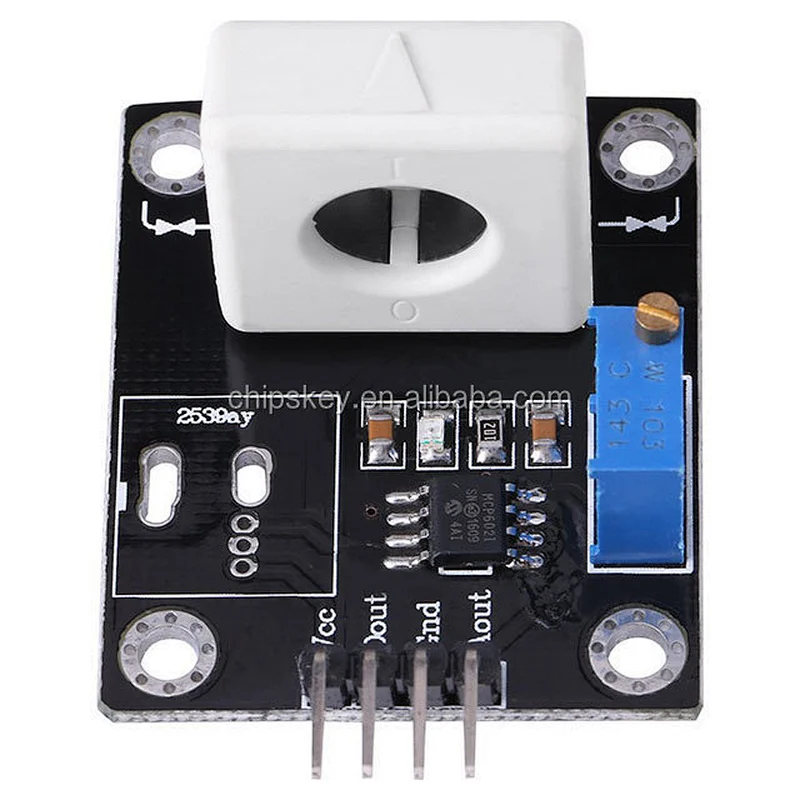

WCS1800 All Current Sensor Over-current Module Detection

• Model Number:13D159
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• SKU:13D159
• Dimensions:37*36*16.5mm
• Weight:9G
• Stock:In Stock ,Can Ship out Immedicate

WCS1800 All Current Sensor Over-current Module Detection

Product Name: WCS1800 overcurrent detection sensor overcurrent / short circuit protection detection module

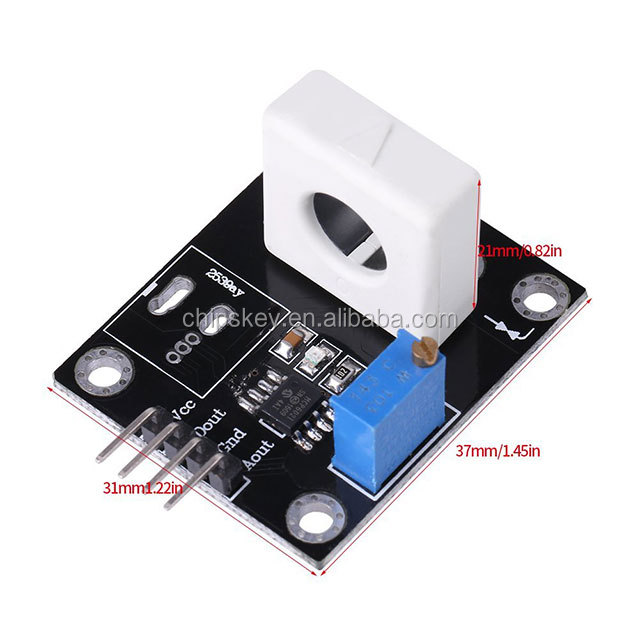

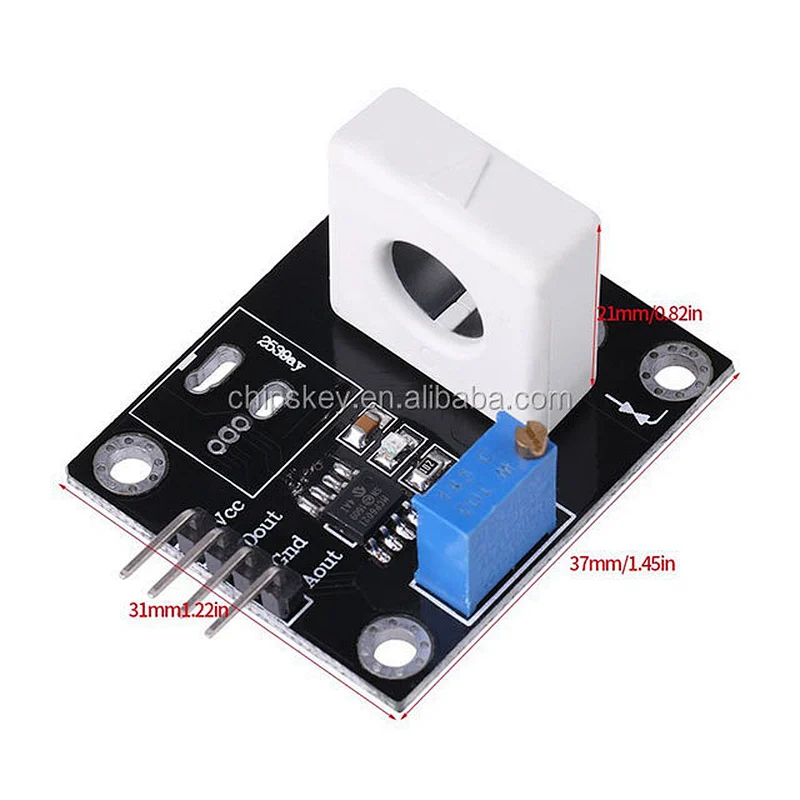

First, the dimensions: length 37mmX height 16.5mm width 31mmX
Second, the main chip: LM393 op amp, WCS1800
Third, the working voltage: DC DC5V
Four, features:
1, has a signal output indicator;
2, the current detection range is wide DC ± 35A AC: 25A;
3, the current detection resolution 60mV / A;
4, the output signal indicative of the flow;
5, over-current signal is set to the critical point is adjustable, set the resolution of 1.5A;
6, with mounting holes for easy installation of firmware;
7, sampling current output analog signals, which can be accessed ADC, TTL-level signal output can be connected to the microcontroller IO port control.
8, the output signal is: analog signal and level signal.
