- Model Number:8069
- Type:Liquid Flow Sensor
- Place of Origin:Guangdong, China, USA
- Brand Name:Chipskey
- Category:Water flow sensor / Hall flow sensor For Water Heater
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V
Product Description

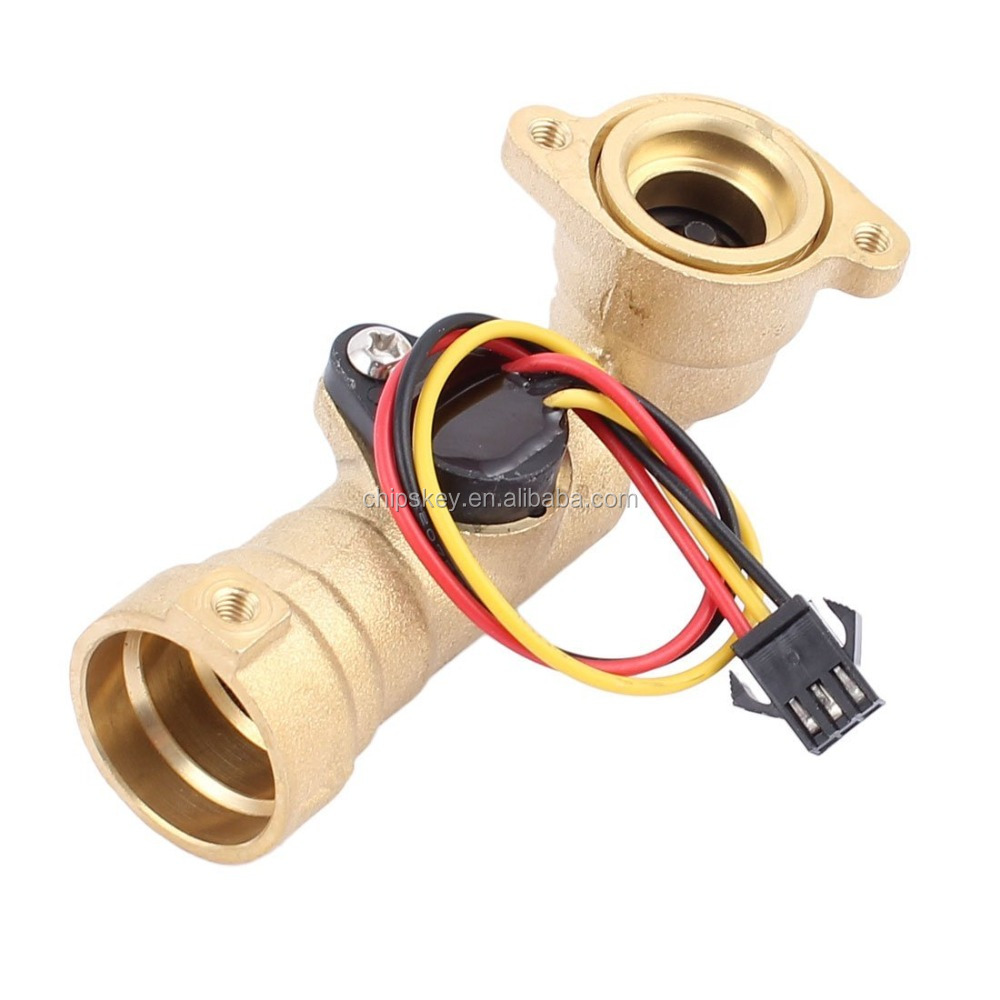

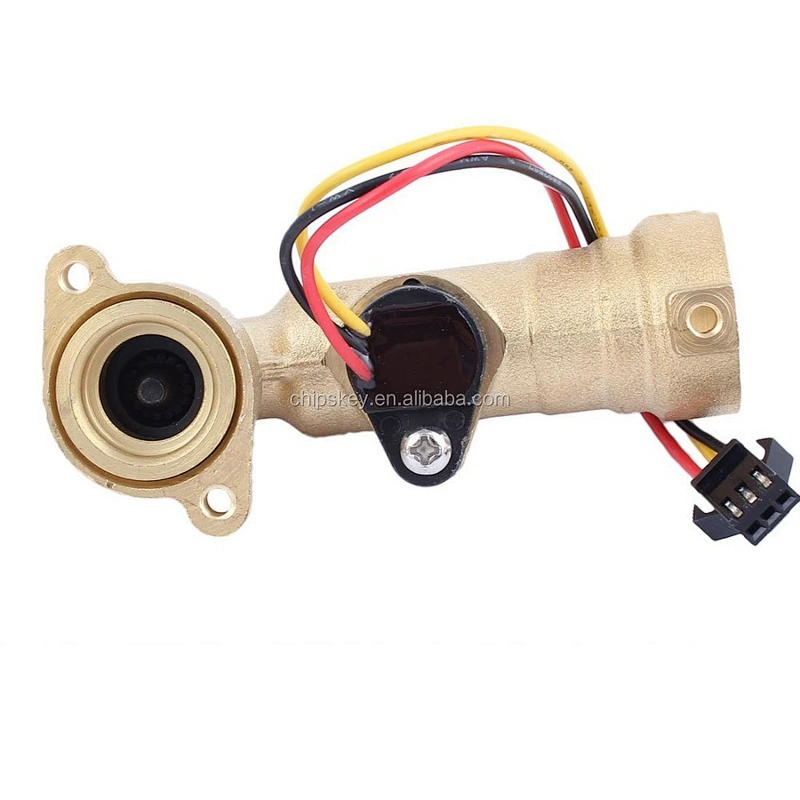

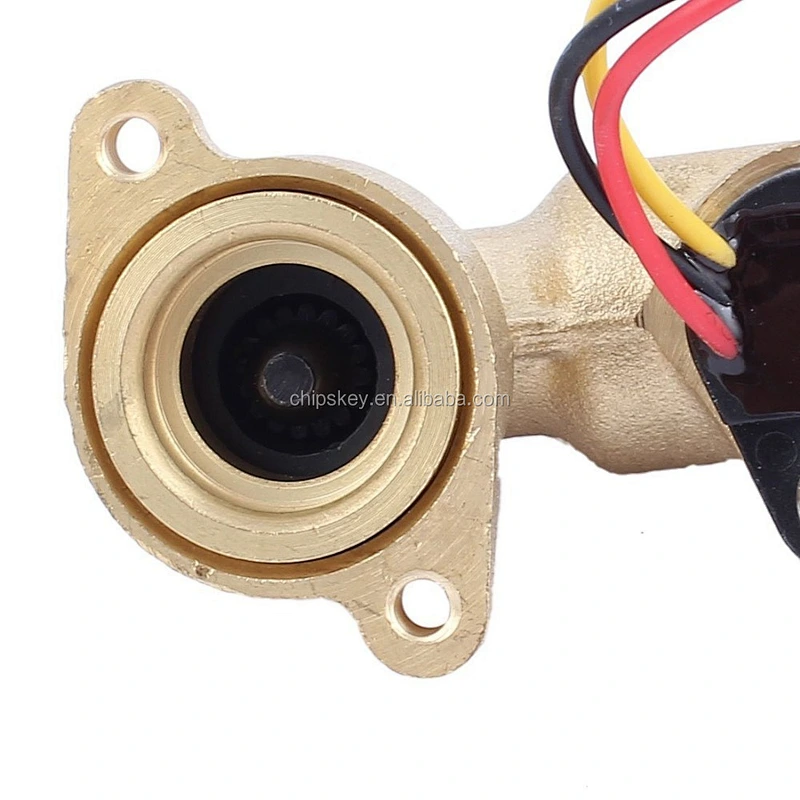

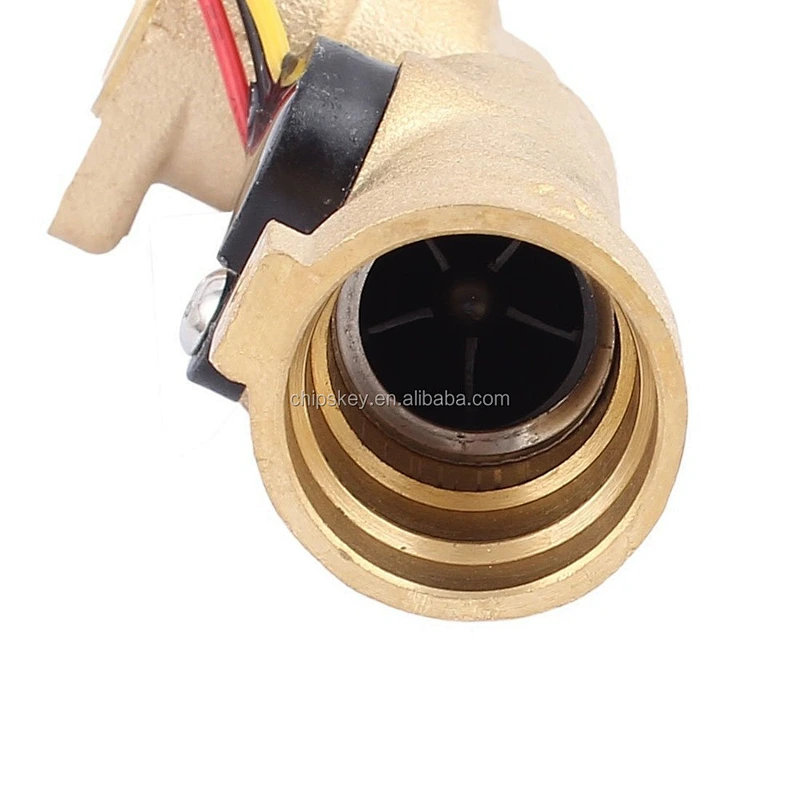

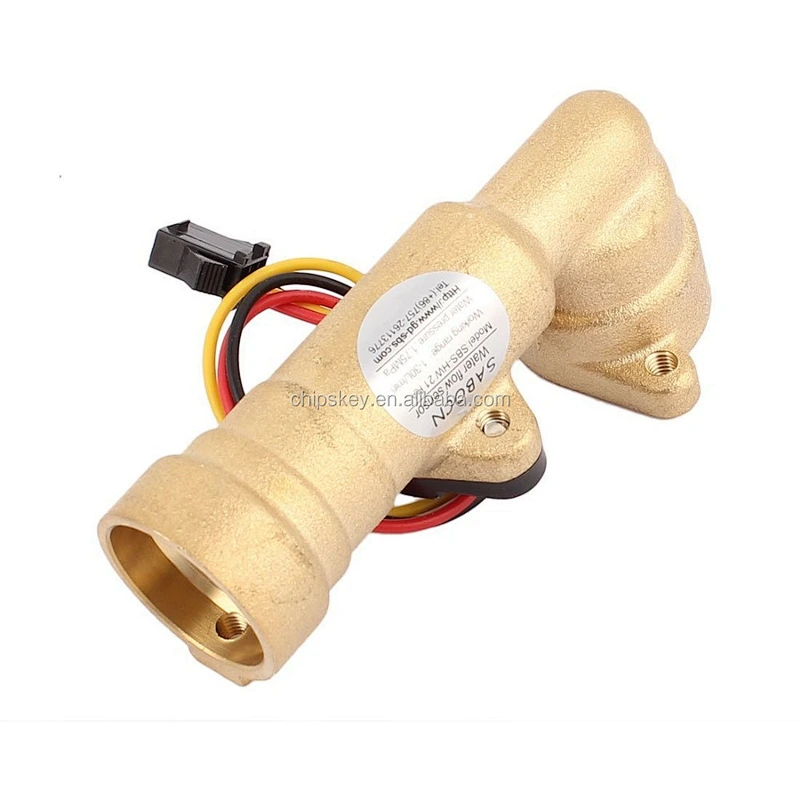

Water flow sensor / Hall flow sensor For Water Heater
Product Description Product Description: 1. Water flow sensor lightweight, flexible outline, small size, easy installation. Rotating part of the bearing used. All materials are RoHS compliant. 2. There is an integrated magnetic Hall-effect sensor that outputs one electrical pulse per revolution. Hall-effect sensor and water tube seal, the sensor to keep safe and dry. 3. Three-wire connection: red is positive, black is negative, the pulse signal is yellow. Technical parameters: Product Name: Water flow sensor Material: Copper (liquid) Liquid temperature: Not more than 60C Operating voltage range: DC 4.5V ~ 18V Rated voltage: DC 5V Maximum current: 10ma (DC 5V) Maximum water pressure: 1.75Mpa Flow Range: 1-30l / min Connector: Male sm-3p Connector Cable Length: 14cm External and Internal Thread Diameter: G1 / 2in Tube Length: 84.
