- Model Number:24137
- Type:Data Conversion Development Boards and Kits
- Place of Origin:China

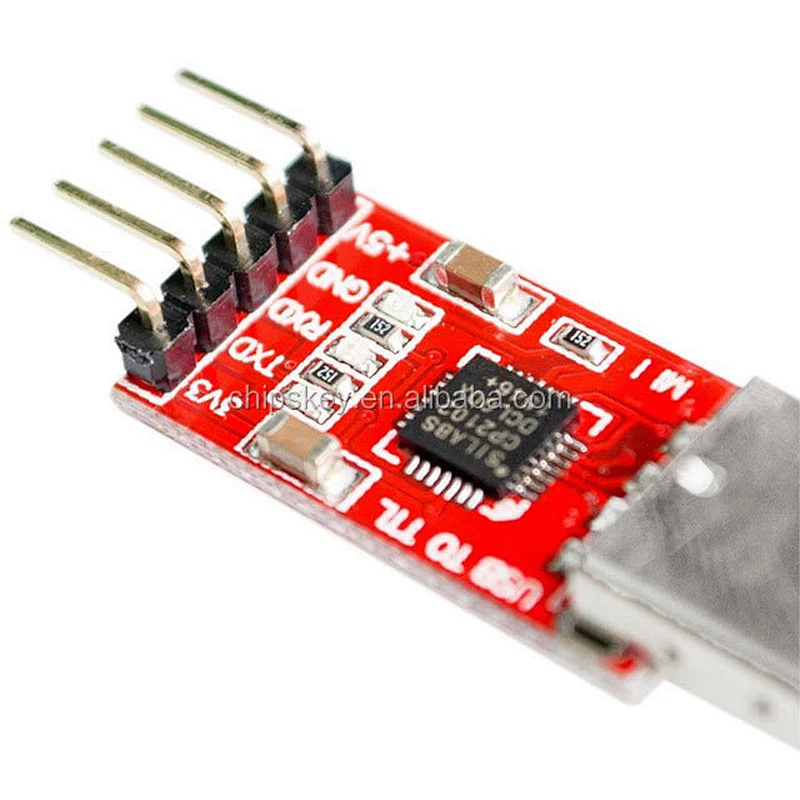

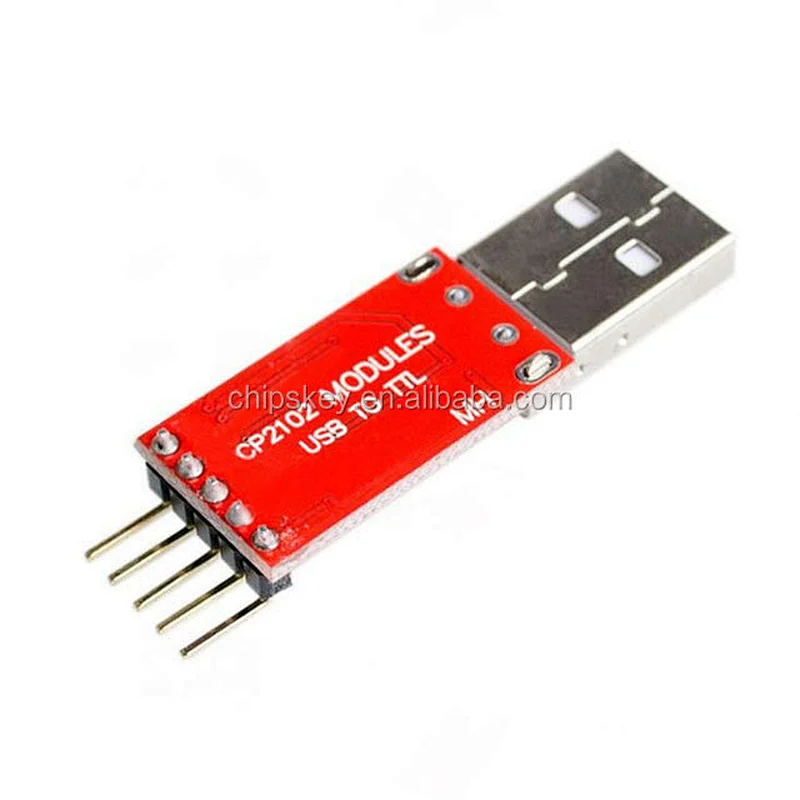

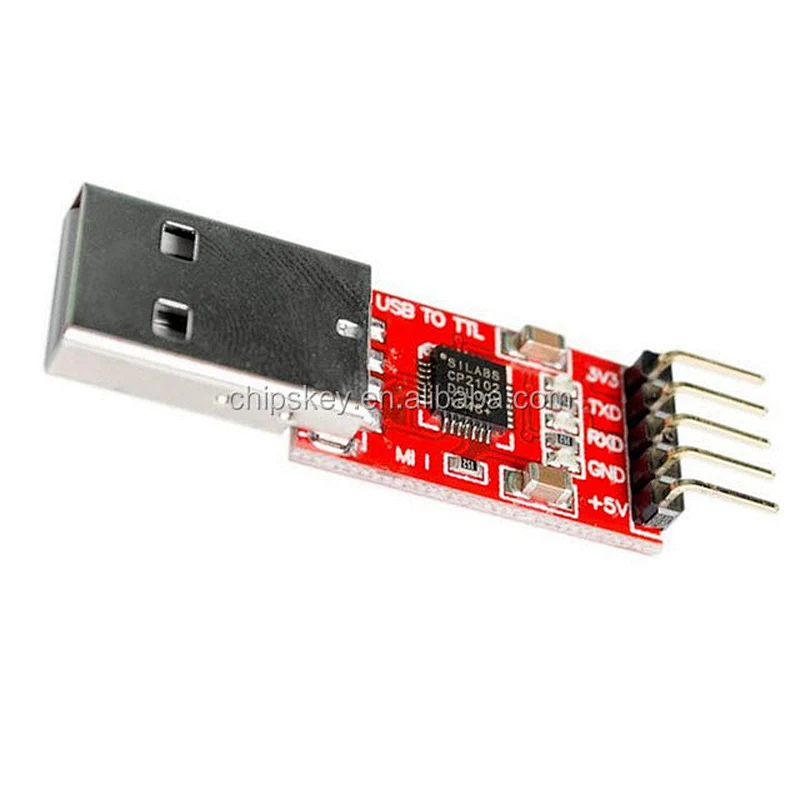

USB to TTL USB CP2102 Module
"product description
1. The main chip CP2102, after installing the driver to generate a virtual serial port
2. USB power supply, resulting in the interface, including 3.3V (± 10mA), 5V, GND, TX, RX, signal pin level is 3.3V, positive logic.
3. The vehicle status light illuminates the transceiver and the correct drive status light is on. When the communications transceiver light flashes, the higher the intensity, the lower the baud rate
4. Support 300bps-1Mbps baud rate.
5. Communication format support: 1> 5,6,7,8 data bits; 2> support 1.5,2 stop bits; 3> odd, even, mark, space, no parity
6. Support operating system: windows vista / xp / server 2003/200, Mac OS-X / OS-9, Linux
7. USB head male, can be directly connected to the computer USB port
8. SMT chip components for the production process, quality and stability
9. Without USB head volume: (mm)
Product weight 1.6 ounces
Package size 3 x 2 x 0.5 inches
"
