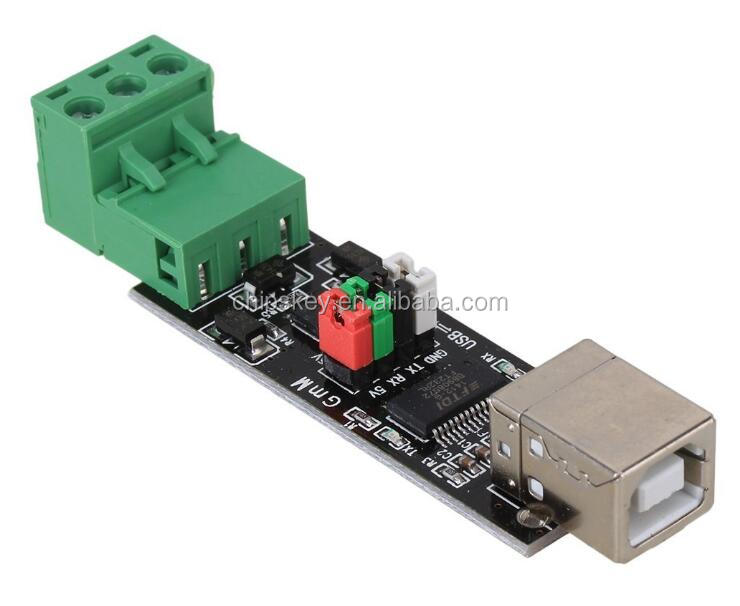

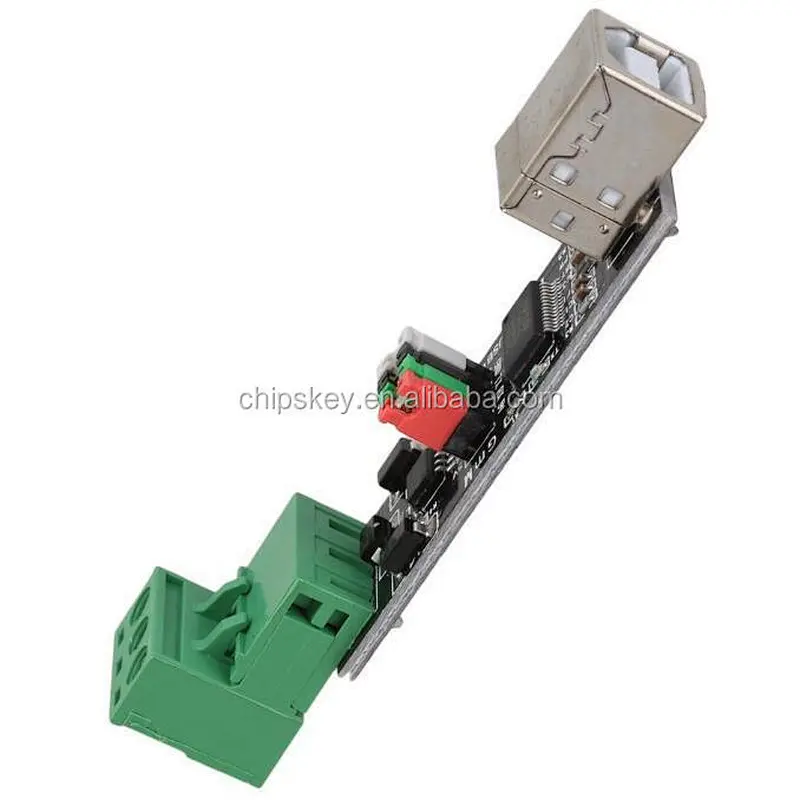

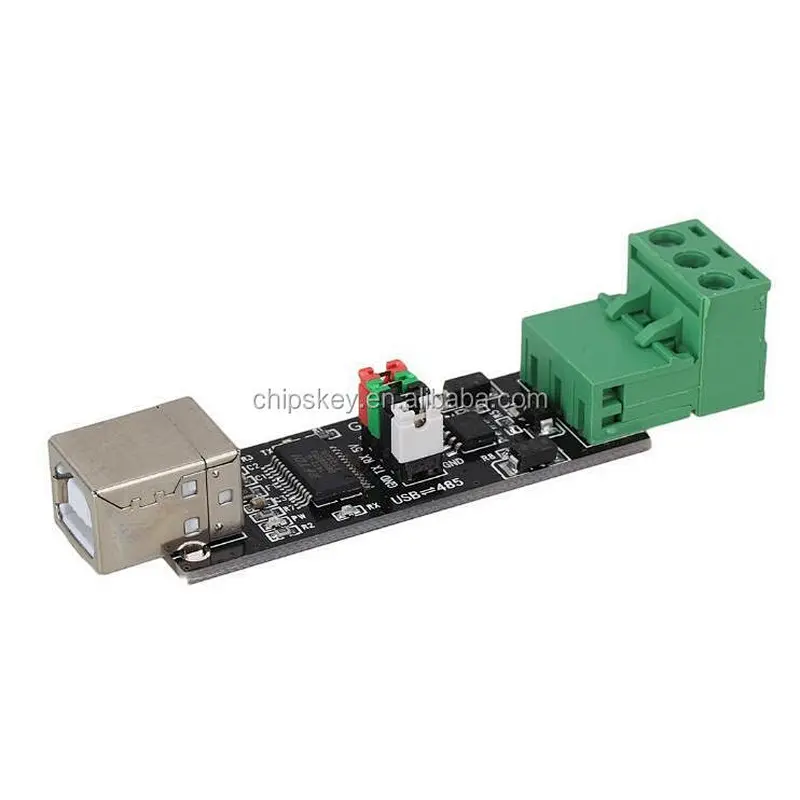

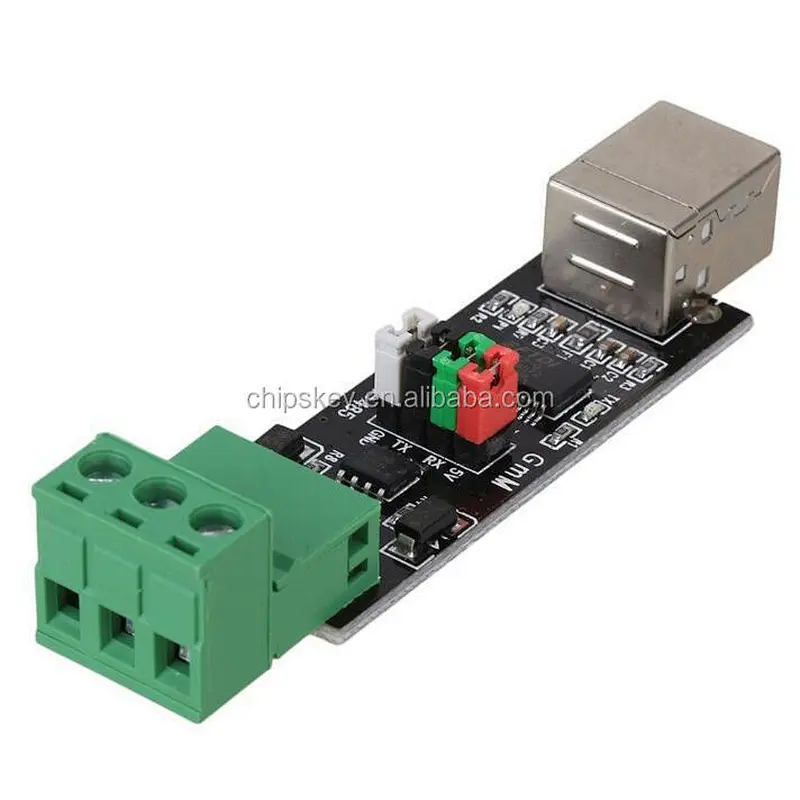

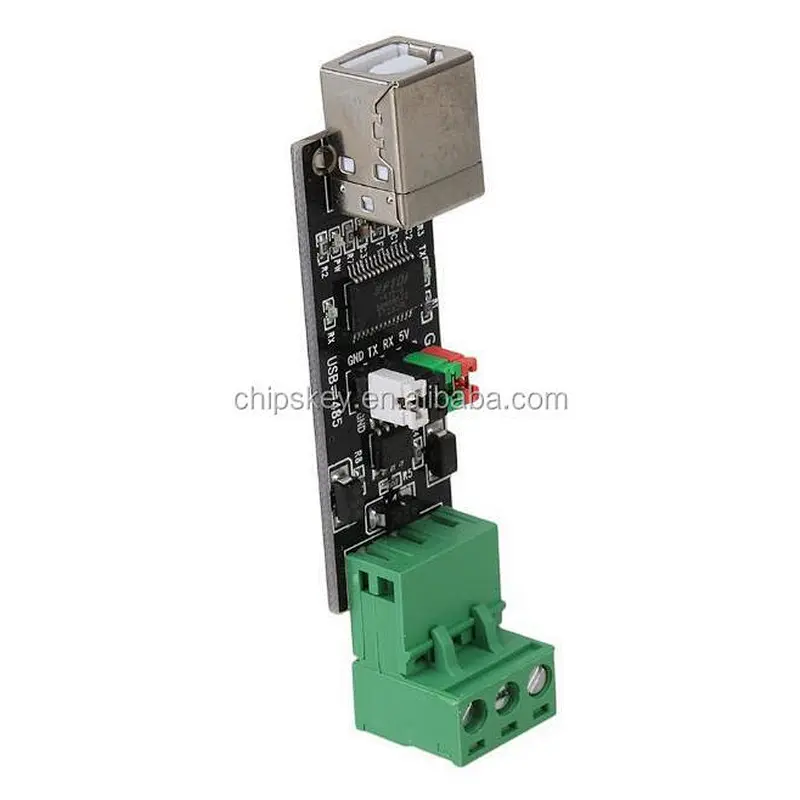

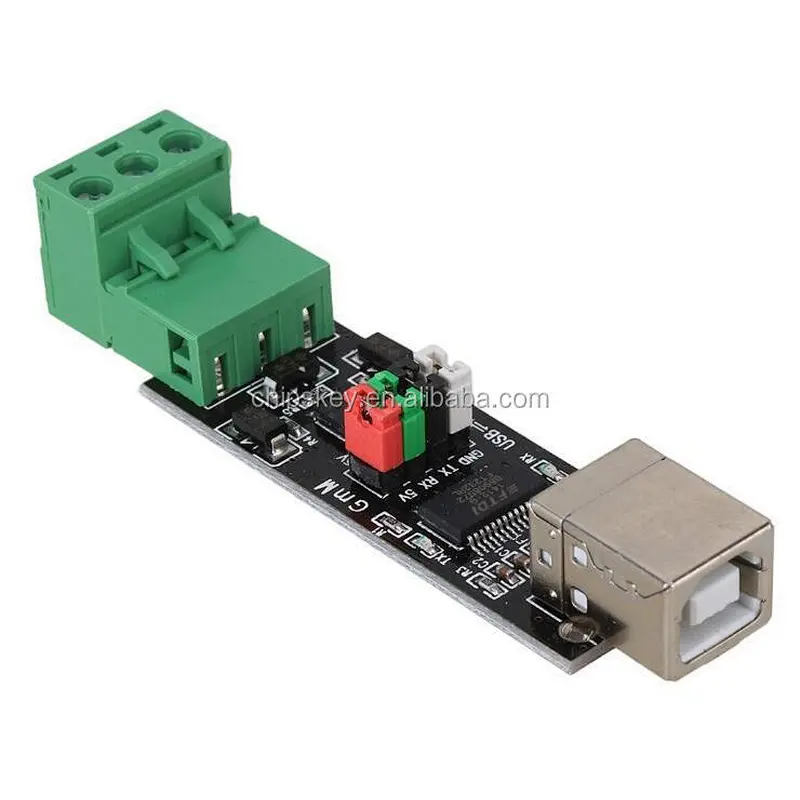

The USB TO TTL/RS485 dual function dual

• Model Number:1062
• Type:integrated circuit, Drive IC
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Brand:Chipskey
• Part number:1062
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Packaging:Reel Tray Tube
• Warranty:360days

The USB TO TTL/RS485 dual function dual protection

Product description
Note: The color of the item may vary slightly due to photography and your own computer
Feature:
Support Windows98/ME/2000/XP/WIN7/Vista, Linux, Mac
Support devices with RS485 interface: surveillance cameras, video capture device, fingerprint attendance machine, PBX, CNC machine, microcontroller, etc.
This converter provides two way serial communications signal
Conversion between the RS485
To and from a personal computer USB port
Using virtual serial COM port
Self-powered from USB
Specification:
Material:PCB Board,Metal
Color:Black and Green
Standard: USB2.0 standard, backward compatible, in line with the standard RS485
Direction control: the use of automatic data flow control, auto distinguish and control data transfer direction
Baud :300-9216000bps, automatically detecting the serial signal data rate
Load capacity: support multipoint, each converter allows RS485 interface device to connect 32
Interface Protection: TVS tube protection, USB self-recovery protection
Dimension:71 x 18 x 16mm/2.8 x 0.71 x 0.63"(L x W x H)
Weight:14g

The USB TO TTL/RS485 dual function dual protection
