- Model Number:16G121
- Type:Data Conversion Development Boards and Kits
- Place of Origin:China
- Certification 1:ROHS
- Certification 2:CE
- SKU:16g121

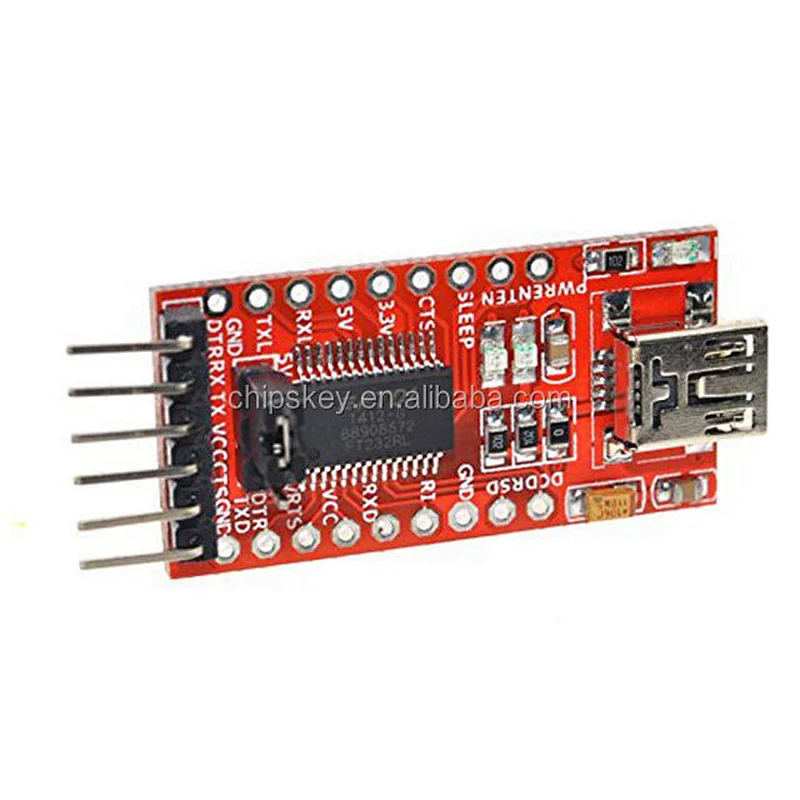

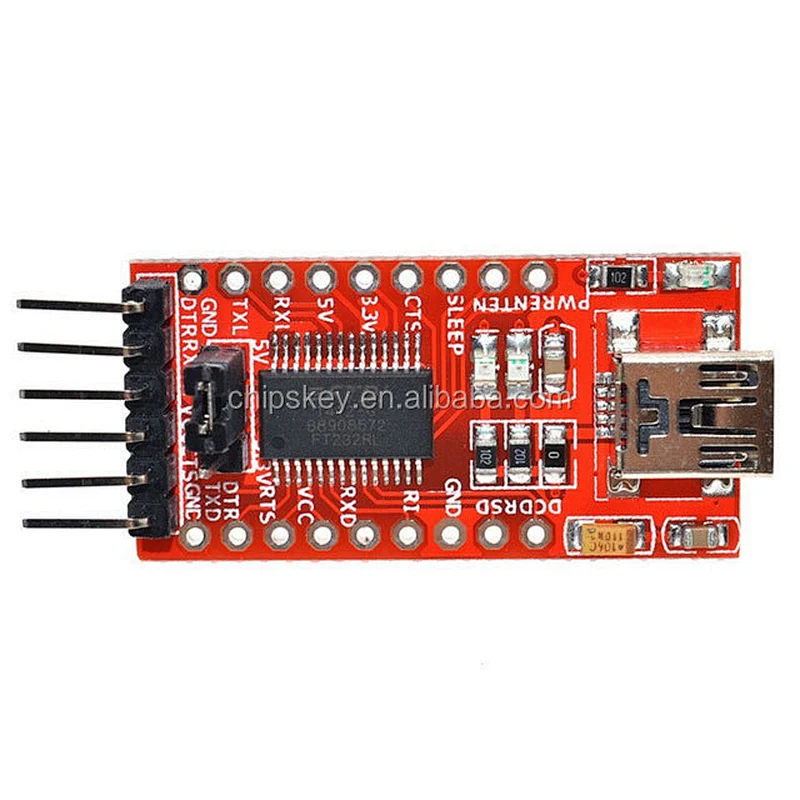

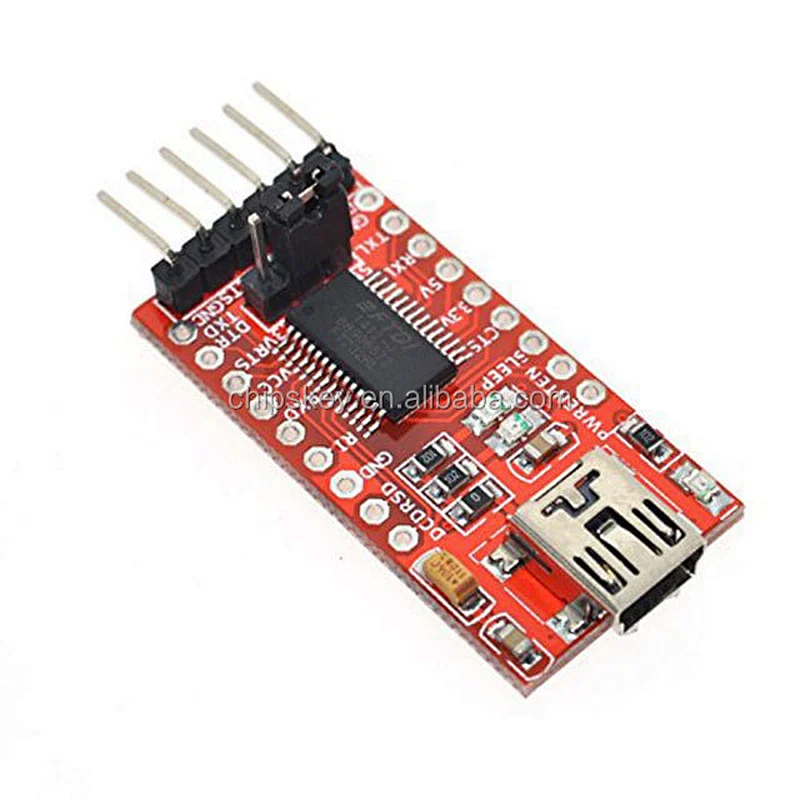

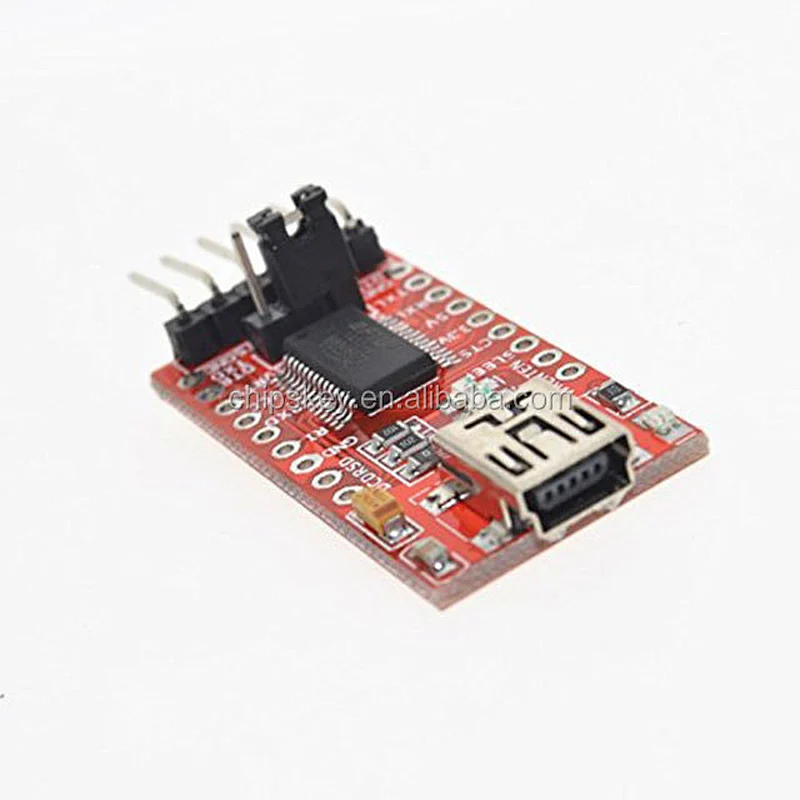

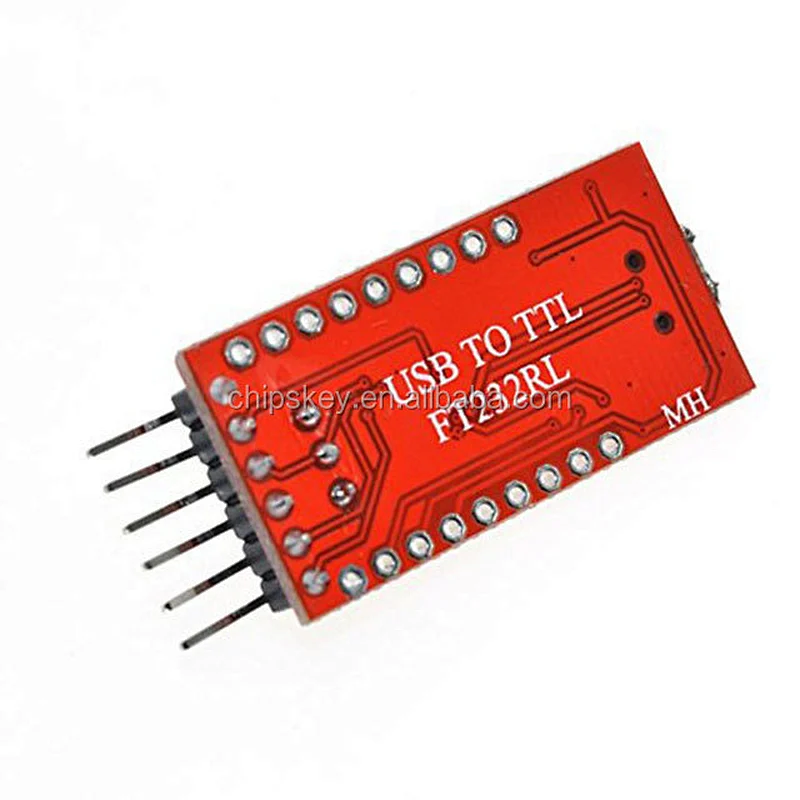

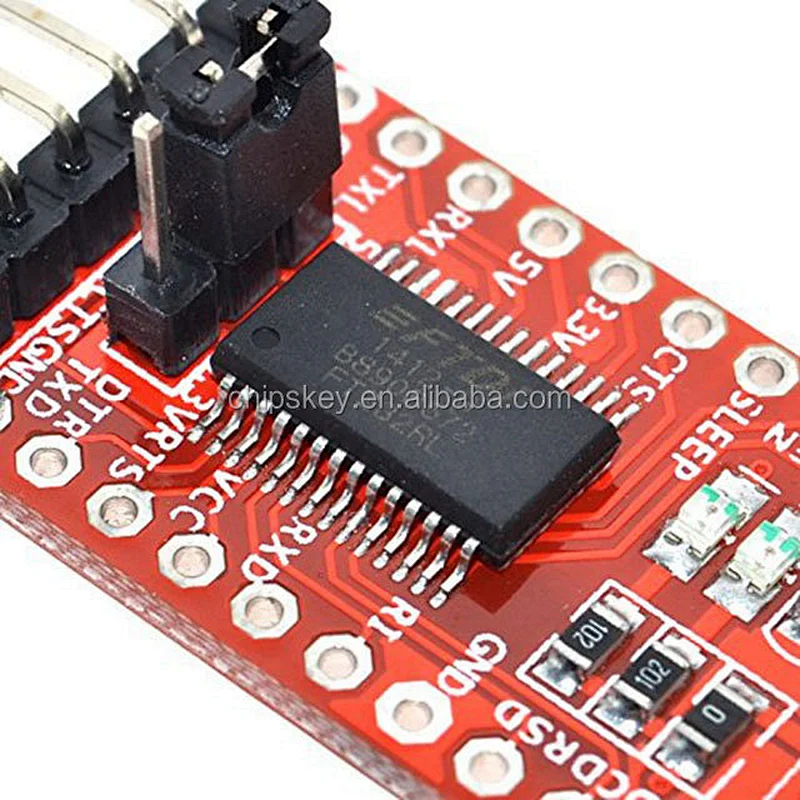

FT232RL USB to serial port module USB to TTL level
Brush USB-RS232-TTL Line king!
USB2TTL protection overcurrent release version! ! Specials! !
Using USB2.0 best FT232RL chip, USB power supply uses 500MA fuse (FUSE) to protect your USB power and equipment! More stable performance! !
This product uses a new design, using USB2.0 best FT232RL chip, the USB is converted into serial port. It has two power versions.
Each module in the factory using the spontaneous self-10W bytes received test! !
PCB board size: 17mm multiplied by 32.5mm
[FT232R introduction]
With the development of computer technology, parallel and serial ports on your PC slowly disappeared, and now even the parallel port of the desktop are rare. But for engineers, parallel and serial interfaces are essential, especially serial port. For no serial computer, the most convenient solution is to use USB to serial chip to a virtual serial port out, many manufacturers have to produce such chips, such as silicon LABS of CP210x series, TI's TUSB3410, Nanjing Qin Heng CH34x series, FTDI's FT232 series, Prolific's PL230x series, Echo of ARK3116 like. From the stability point of view, it is still the most reliable FT232 series, you can use the debugger it to feel at ease without worrying about blue screen appears.
FT232R chip is a single-chip solution, the general use of the basic need of peripherals, and even crystal, USB termination resistors placed EEPROM product information have been integrated within the.
