Unibus Digital Humiture DHT22 compatible with SHT11 SHT15
Unibus Digital Humiture DHT22 compatible with SHT11 SHT15
Unibus Digital Humiture DHT22 compatible with SHT11 SHT15
Unibus Digital Humiture DHT22 compatible with SHT11 SHT15
Unibus Digital Humiture DHT22 compatible with SHT11 SHT15

Unibus Digital Humiture DHT22 compatible with SHT11 SHT15

Model NO.
9062
Minimum order quantity
1 piece
Quantity:
  • Model Number:9062
  • Type:integrated circuit, Drive IC
  • Place of Origin:Guangdong, China
  • Brand Name:Chipskey
  • humidity measurement range:0 --- 100% RH
  • humidity measurement accuracy:± 2% RH
  • temperature measurement range:-40 --- 80 ℃
  • temperature measurement accuracy:Brand New With Original Manufacturer
  • Maximum Operating Temperature:± 0.5 ℃
  • working voltage:DC5V commonly used
  • Part number:9062




Product Description

 Unibus Digital Humiture DHT22  compatible with SHT11 SHT15



1. humidity measuring range :0 --- 100% RH

2, humidity measurement accuracy: ± 2% RH

3, the temperature measuring range: -40 --- 80 °C

4, the temperature measurement accuracy: ± 0.5 °C

5, the working voltage: DC5V common

6, single-bus digital signal output, bidirectional serial data port;

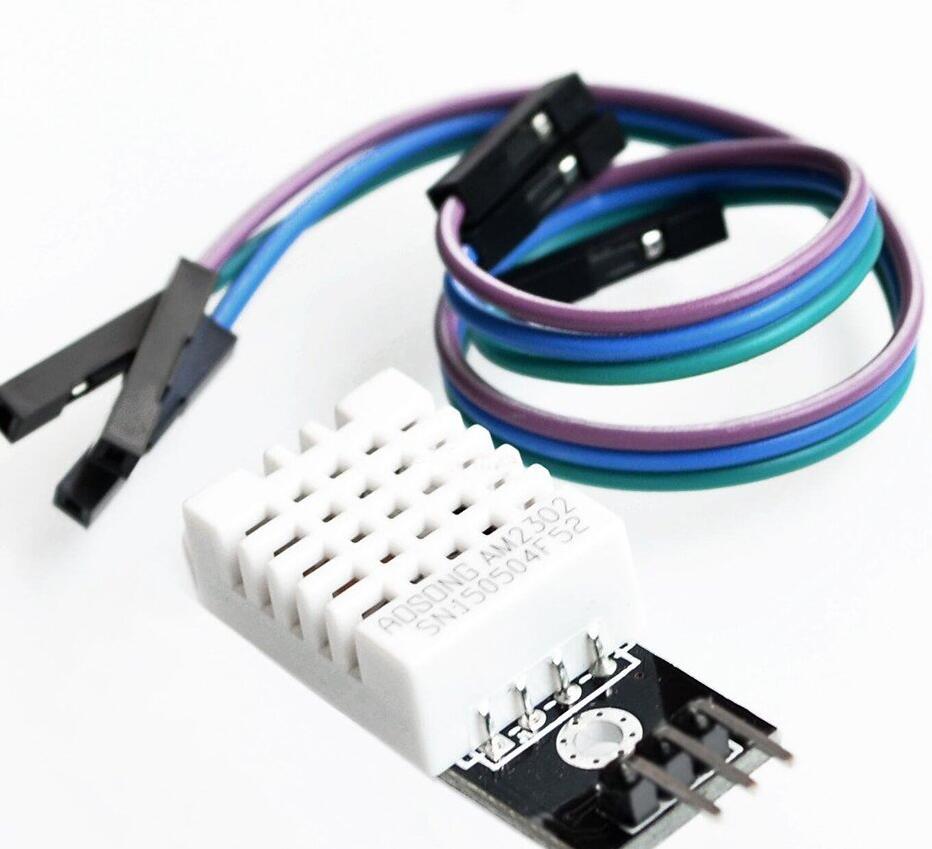

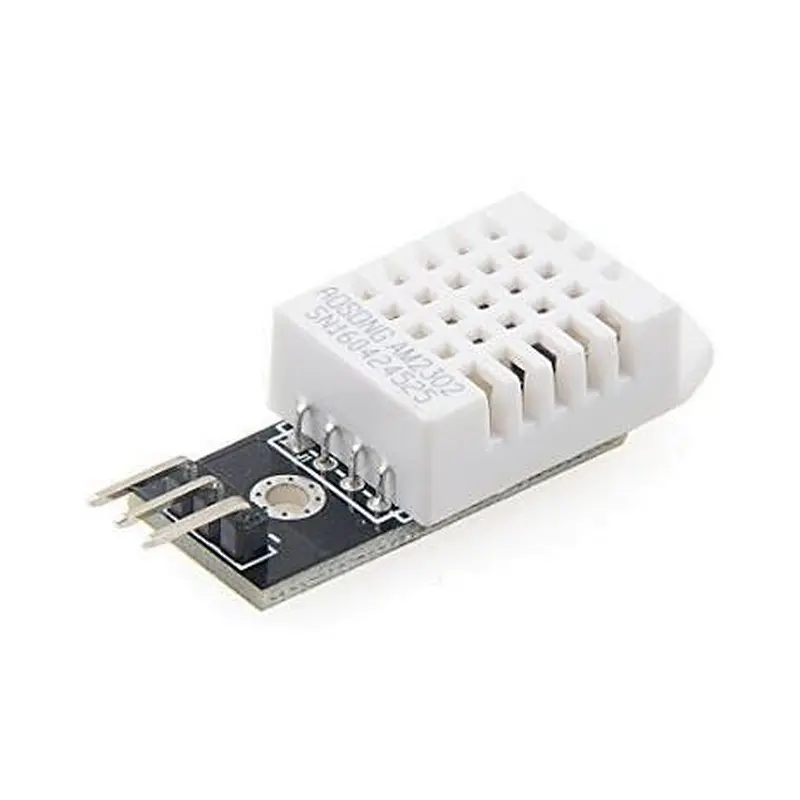

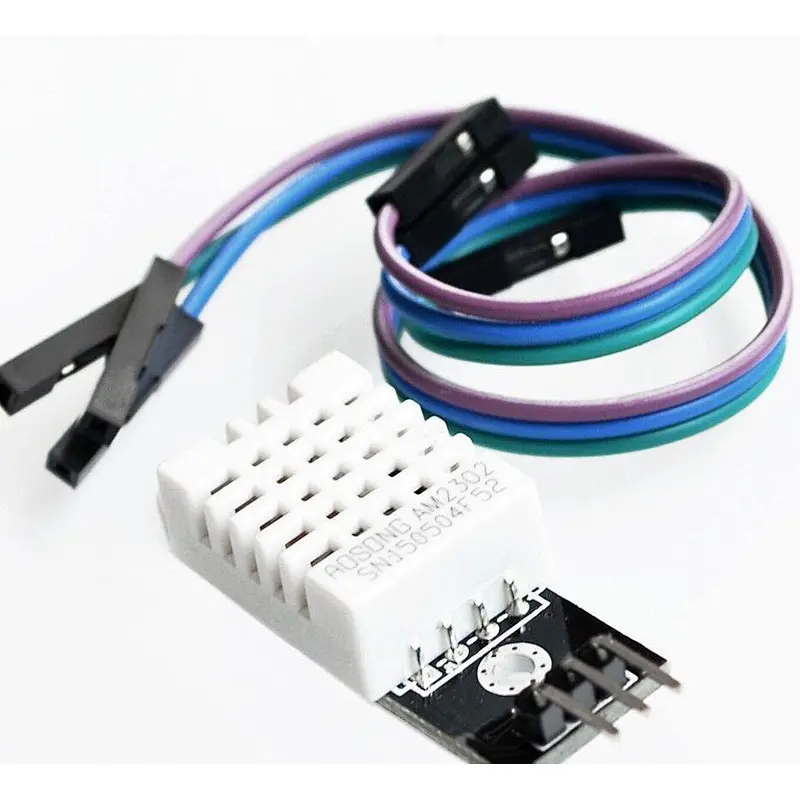

DHT22 AM2302 Digital Temperature and Humidity Measure Sensor Module for ArduinoDescription:Size: (l)28mm * (w)12mm * (h)10mmWeight: 3g.Operating voltage: 3.3V - 5.5V.The main chip: Ausone DHT22 temperature and humidity sensor.Signal output format: digital signal.Temperature measurement range: -40 ℃ --80 ℃.Measurement accuracy: ± 0.5 ℃.Humidity measuring range: 0--100% RH.Accuracy: ± 2% RH.Resolution: 16 bit.With fixing screw holes for easy installation and fixation. Aperture 2.6mm.Wiring instructions: /+/: connected power supply positive./-/ : connected power supply negative./out/: connected microcontroller IO port.Package Including1 * DHT22 Module1* Dupont line(color random)
