Ultrasonic Ranging Module Display Distance Alarm

• Model Number:Ultrasonic Ranging Module Display Distance Alarm
• Type:integrated circuit, Drive IC
• Place of Origin:United States
• Brand Name:Chipskey
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Application:Watch
• Supply Voltage:1.5V-6V
• Part number:Ultrasonic Ranging Module
• Brand:MIC
• Maximum Operating Temperature:-40C ~ 125C
• Warranty:360days

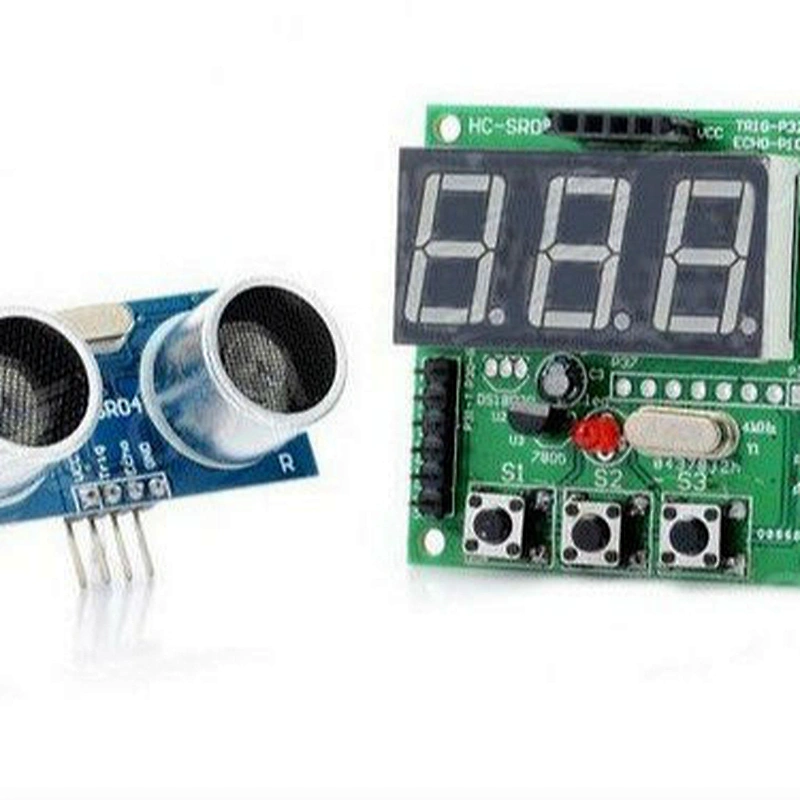

Ultrasonic Ranging Module Display Distance Alarm

Ultrasonic Ranging Module
DYP-ME007 Ultrasonic Ranging Module provides 2cm - 5m non-contact distance sensing capabilities, including ultrasonic transmitter, receiver and control circuit. The basic working principle is given ultrasonic ranging module a trigger signal after emitting an ultrasonic wave when the ultrasonic wave onto the object and is reflected back, the module outputs an echo signal in order to trigger the time between the signal and the echo signal is poor, to determine the distance of the object

Electrical parameters:



Electrical parameters
 DYP-ME007 ultrasonic module

Operating voltage
 DC 5V

Operating current
 15mA

Operating frequency
 40Hz

Maximum range
 3.5m

Recent range
 3cm

Measuring angles
 15 degrees

Input trigger signal
 The 10uS's TTL pulse

Output echo signal
 Output TTL level signals, with a range of proportional

Specifications Dimensions
 45 * 20 * 15mm
