- Model Number:19J025
- Type:Other
- Place of Origin:China

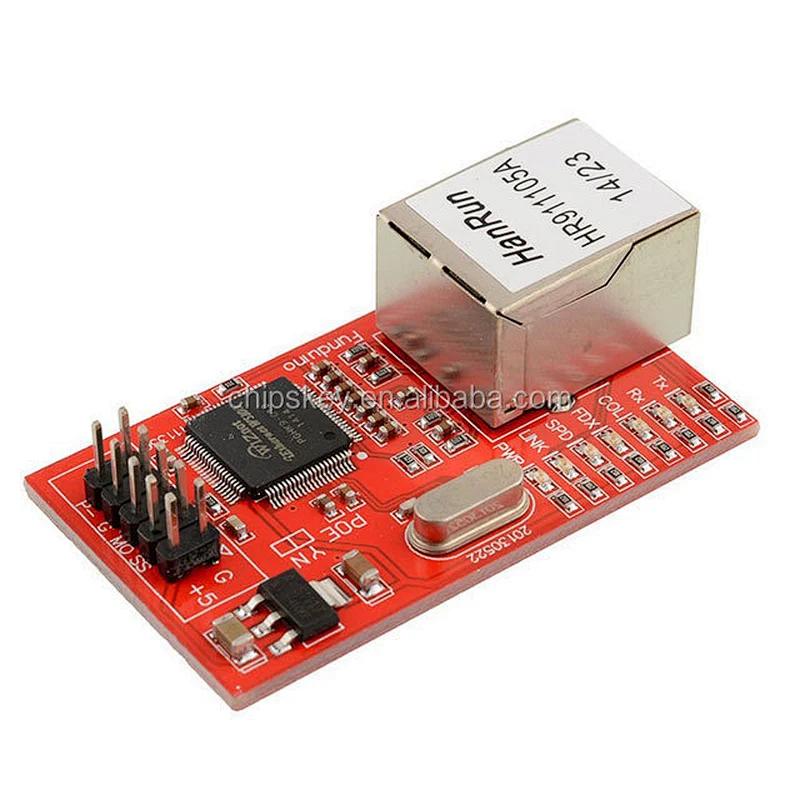

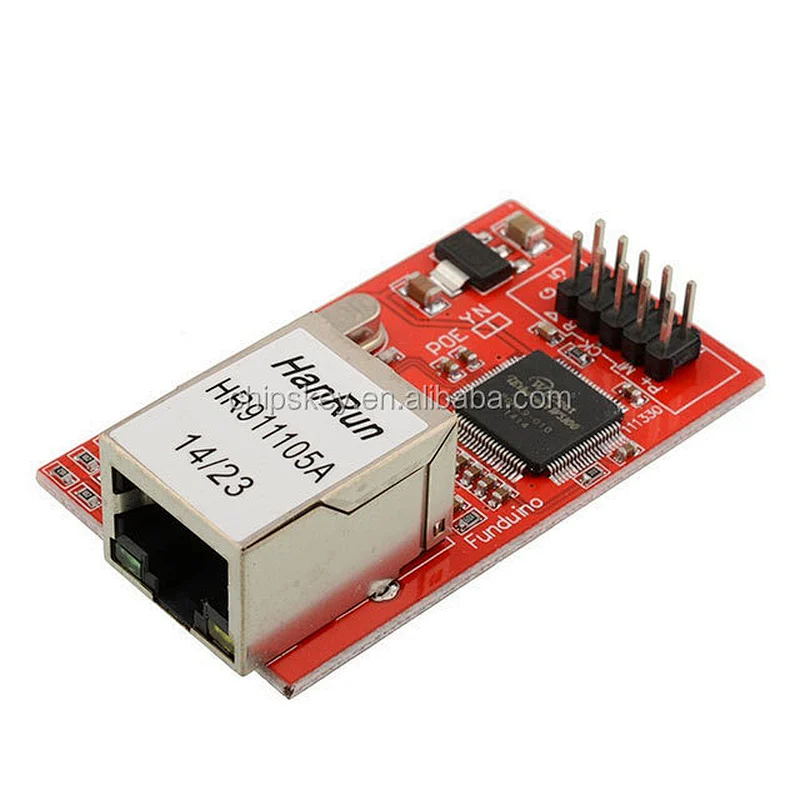

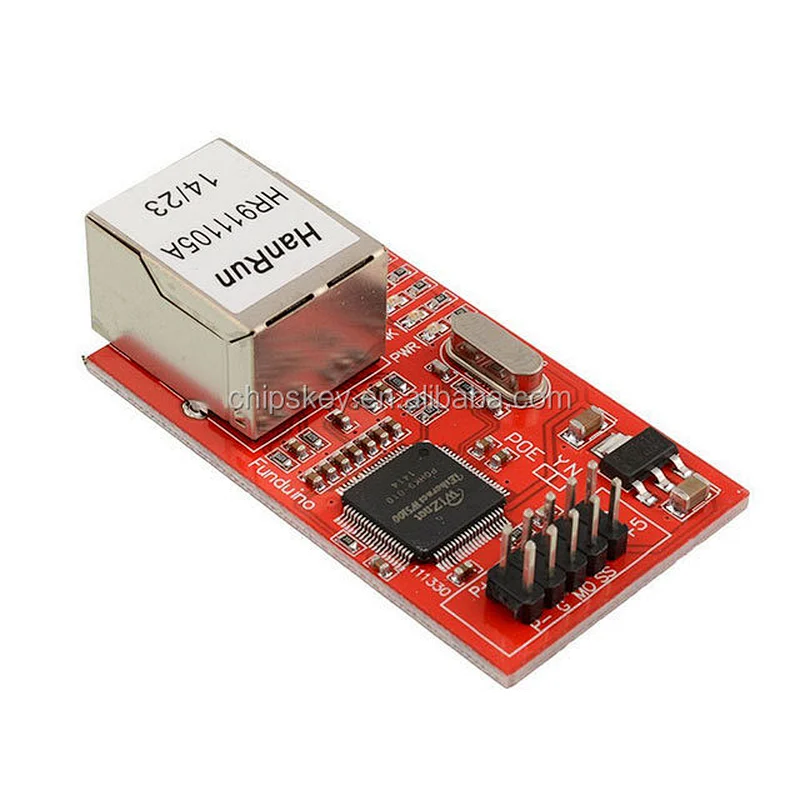

TOP Mini W5100 LAN Ethernet Shield Network Module board
Summary:
W5100 is a versatile single-chip network interface chip, integrated 10/100 Ethernet controller, it is mainly used in high integration, high stability, high performance and low cost embedded systems. W5100 can not use the operating system's Internet connection. W5100 is compatible with IEEE802.3 10BASE-T and 802.3u 100BASE-TX. W5100 integrates a full hardware, and after years of market-proven TCP / IP protocol stack, Ethernet media transport layer (MAC) and physical layer (PHY). No need to consider using the W5100 Ethernet control, need only a simple port (Socket) programming.
Product Features
• You can choose a variety of interfaces: Direct bus, indirect bus and SPI bus;
• Support for hardware TCP / IP stack, supports TCP, UDP, ICMP, IGMP, IPv4, ARP, PPPoE.
• Up to four independent ports;
• 16KBYTE transceiver integrated cache;
• a variety of information outputs, including the RX, TX, Full / Duplex, Colision, Link, Speed;
• Supports auto-polarity (DMI / MDIX);
• 3.3V power supply, IO compatible 5V voltage signal;
• comes with Ethernet port, 2 * 14 2.0mm double pin;
