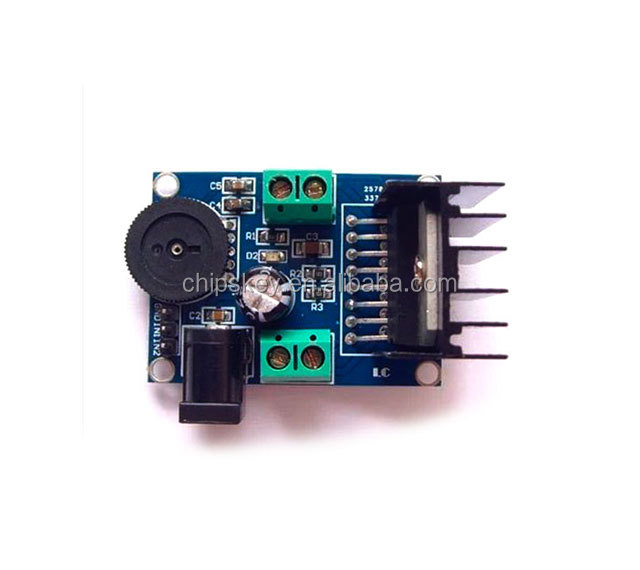

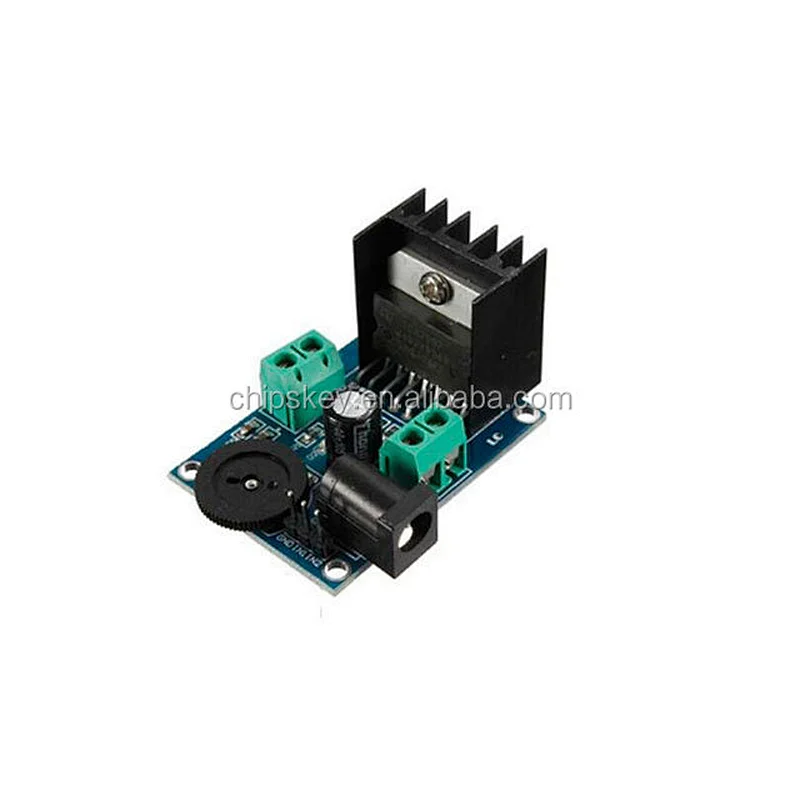

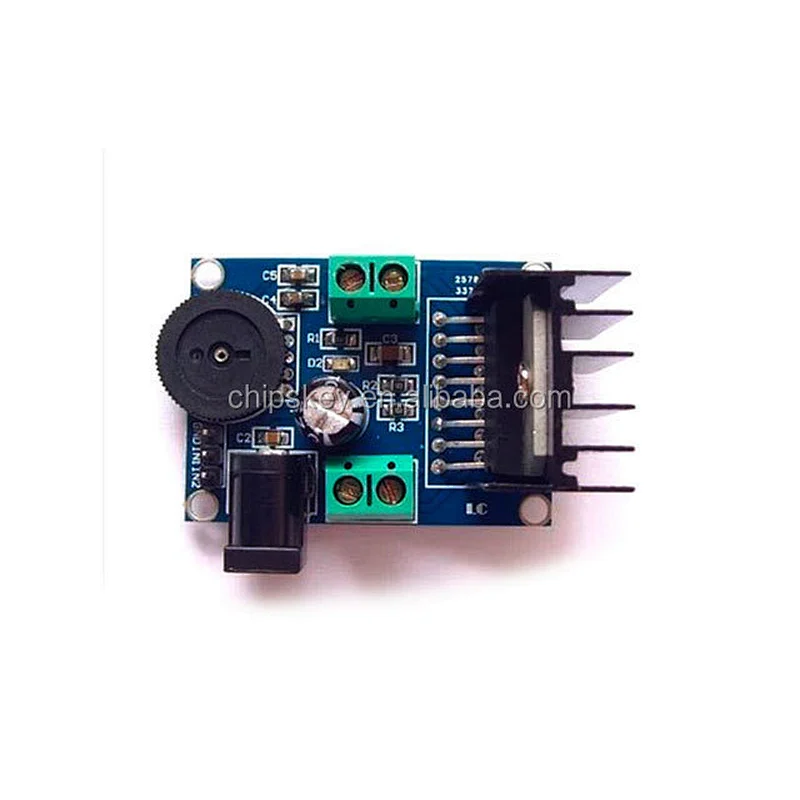

TDA7297 Amplifier Module Audio Amplifier Module

• Model Number:16G106
• Type:Audio Module
• Place of Origin:China
• Certification 1:ROHS
• Certification 2:CE

 1, on-board audio amplifier TDA7297 chip, dual-channel 15W + 15W, 10-50W for 4-8 Euro speakers use

2, the chips are pin is already leads to facilitate external device control, on-board 2-way 5.08 (mm) pitch 2P terminal, respectively, left and right channel output wiring

3, onboard potentiometer dial, you can adjust the volume output size

4, support DC seat, terminals, pin 3 power input, the default is DC seat, operating voltage: 6-18V

5, board size: 45 (mm) x33 (mm)
