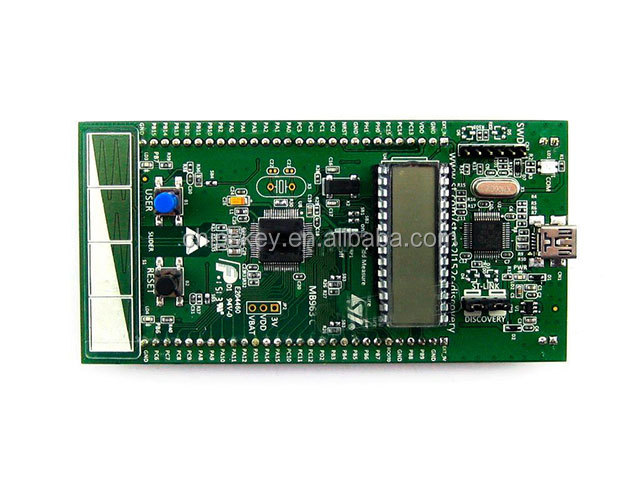

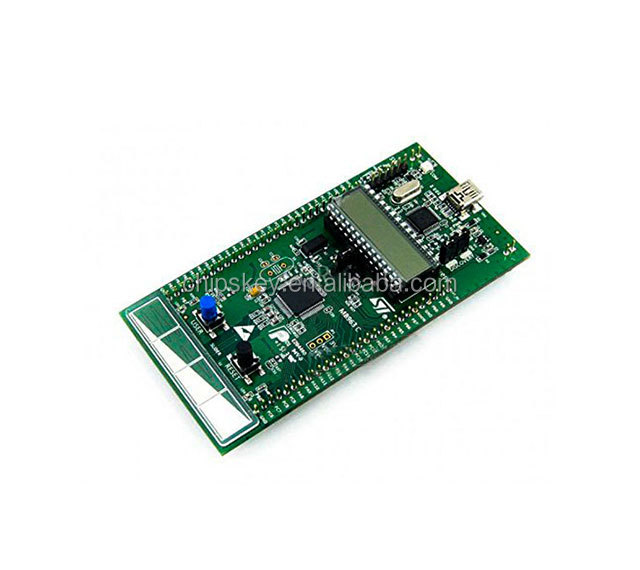

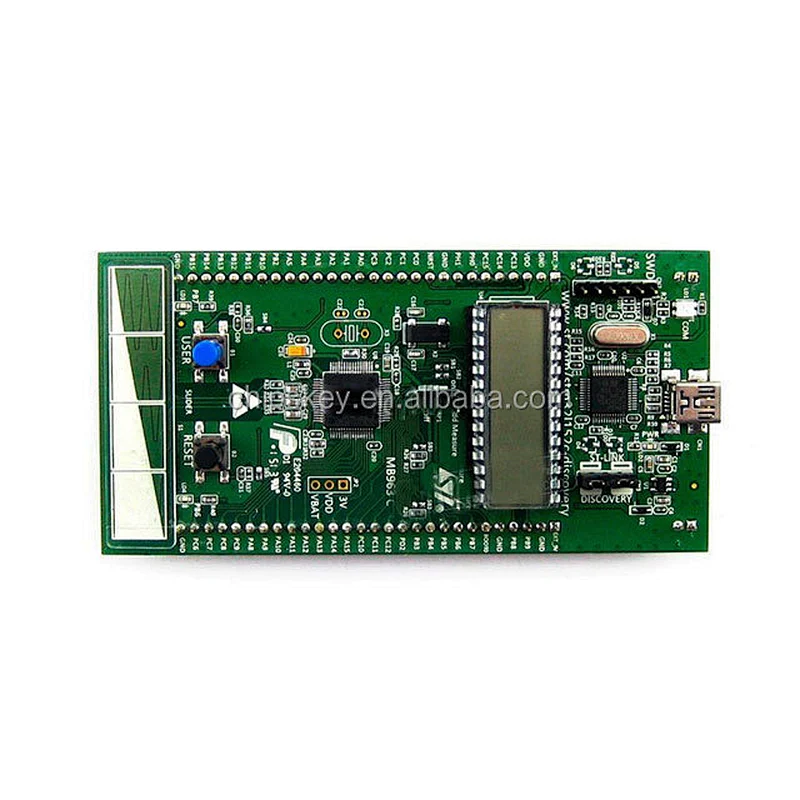

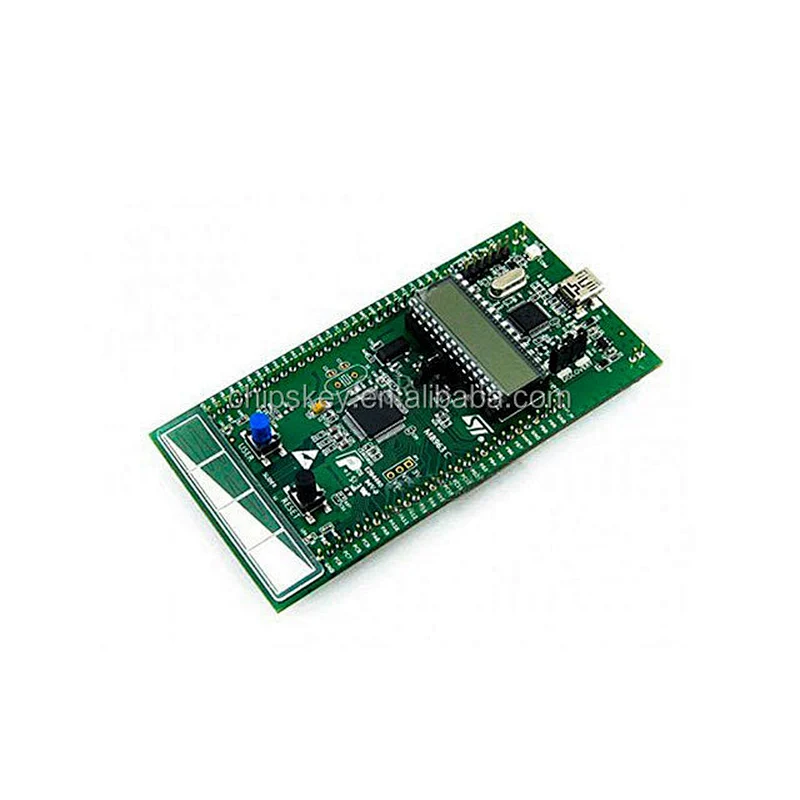

ST STM32L152C-DISCO STM32L1DISCOVERY STM32L152RCT6 Discovery Kit
STM32L152C-DISCO is a ST company launched a series of ultra low power Cortex-M3 design STM32L development board.
The development board is based on the STM32L152RCT6 design, and the development board also integrates the ST-LINK/V2 simulation download (but only provides the SWD interface),
To avoid the trouble of your other purchasing simulator or download.
Allows you to more quickly get started STM32L microcontroller. Let's release your creativity!

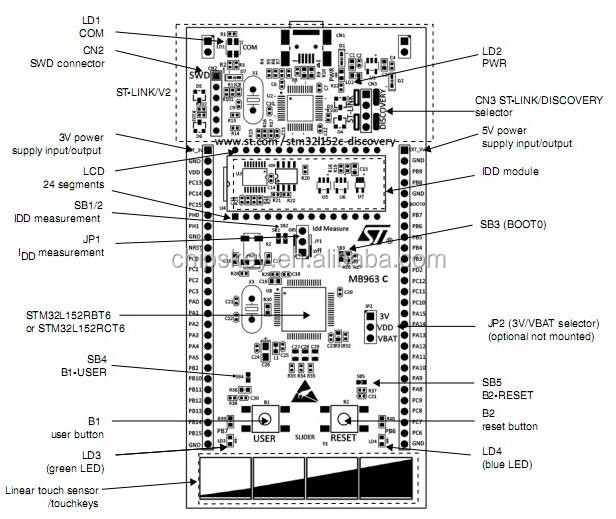

Characteristic
STM32L152RCT6 micro controller
256 FLASH KB, 32 RAM KB, 8 EEPROM KB
64 pin, LQFP package
Development board integrated ST-Link/V2 simulation debugger (but only to provide external SWD interface)
Indicator light
LD1:USB communication indicator light
LD2:3.3V power indicator light
LD3: application indicator
LD4: application indicator
Key
Reset button
Application button
Touch sensitive button
Power Supply
USB through the 5V (system through the voltage regulator chip 3.3V)
External power supply 5V and 3.3V
Display LCD
DIP 28-pin
The 24 paragraph, the 4 public
IDD current detection
Rules of the lead out of all the IO port, easy to do the relevant experiment
