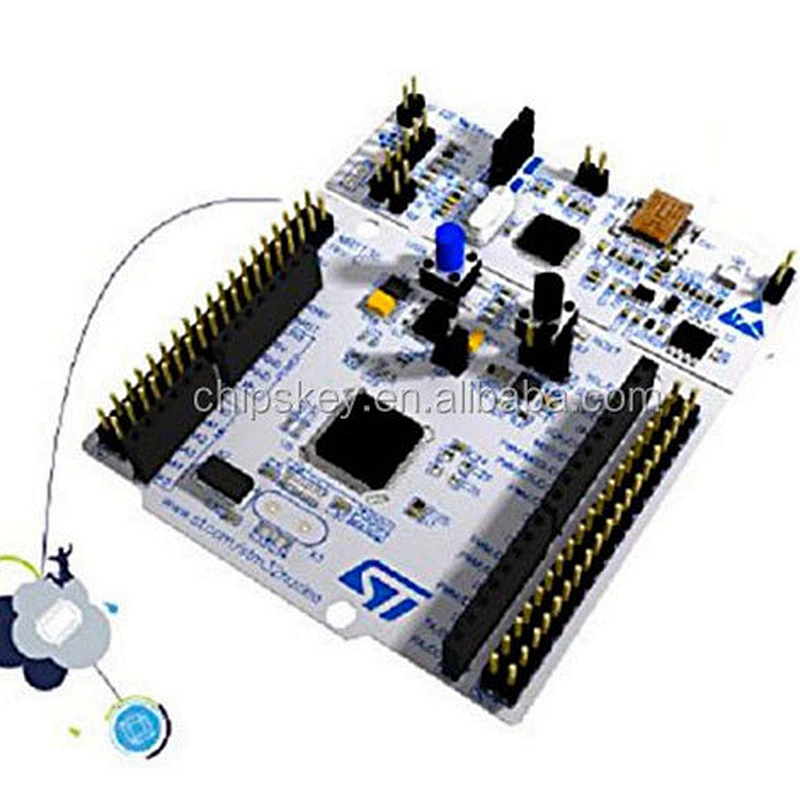

ST NUCLEO-L476RG Cortex-M4 mbed development board

Model NO.: 25200
Minimum order quantity: 1 piece
Country of Origin: HK/SZ

Quantity:

Product Description

Model Number:25200
Type:other
Place of Origin:Guangdong, China
Brand Name:Chipskey
SKU:25200

Product Description

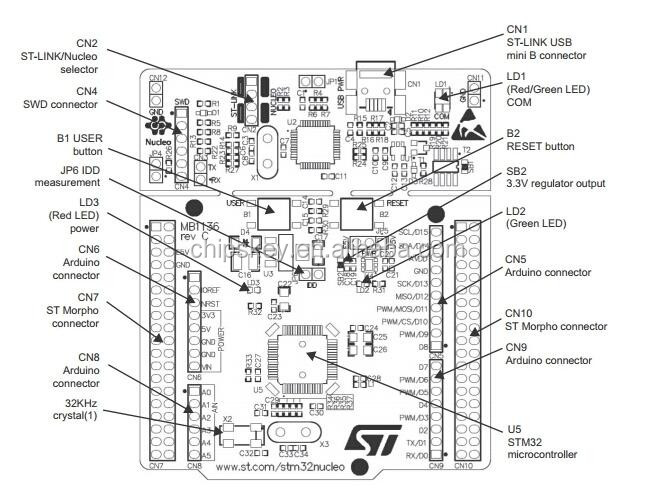

NUCLEO-L476RG Description
The STM32 Nucleo board provides an affordable and flexible way for users to try out new ideas and build prototypes with any STM32 microcontroller line, choosing from the various combinations of performance, power consumption and features. The ArduinosTM connectivity support and ST Morpho headers make it easy to expand the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger and programmer.

The STM32 Nucleo board comes with the STM32 comprehensive software HAL library together with various packaged software examples, as well as direct access to mbed online resources.

STM32 microcontroller with LQFP64 package
Two types of extension resources
- Arduinos Revision 3 connectivity
- STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
mbed-enabled (http://mbed.org)
On-board ST-LINK/V2-1 debugger/programmer with SWD connector
- selection-mode switch to use the kit as a standalone ST-LINK/V2-1
Flexible board power supply
- USB VBUS or external source(3.3 V, 5 V, 7 - 12 V)
- Power management access point
Three LEDs
- USB communication (LD1), user LED (LD2), power LED (LD3)
Two push buttons: USER and RESET
- USB re-enumeration capability: three different interfaces supported on USB
- Virtual Com port
- Mass storage
- Debug port
Supported by wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs
