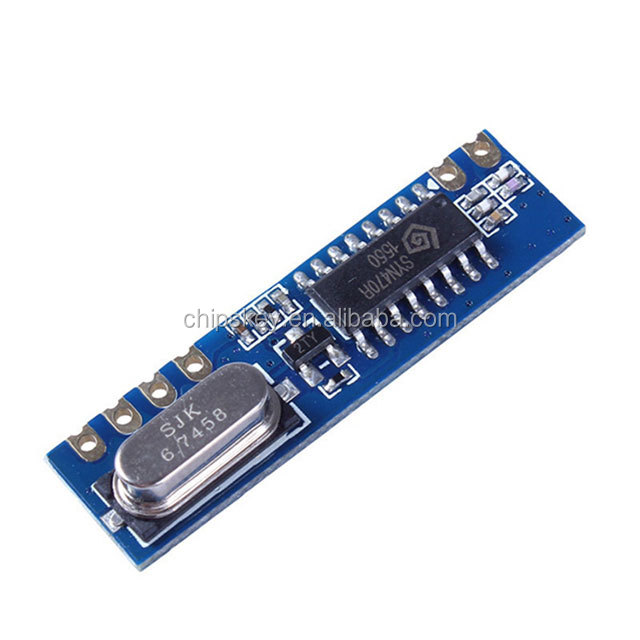

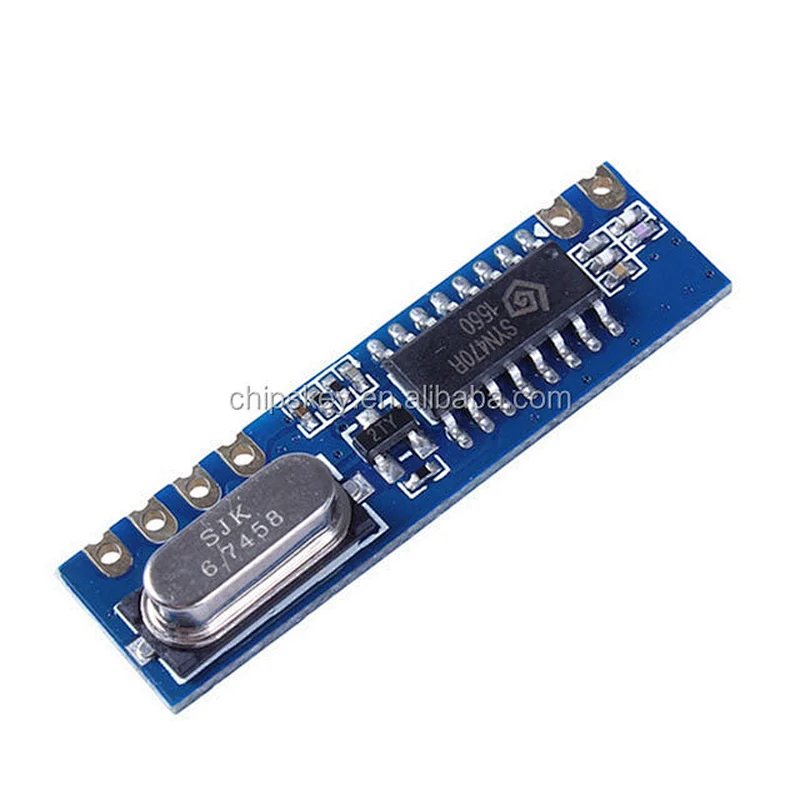

SRX887 433MHZ Wireless Receiver Module Superheterodyne

• Model Number:24169, SRX887 433MHZ
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:China
• SKU:24169
• Brand Name:Chipskey

SRX887 433MHZ Wireless Receiver Module Superheterodyne

"
Product Introduction:
1.Frequency:433 MHz
2.Modulation Mode: ASK/OOK
3.Strong Anti-Power Interference
4.Low Consumption Sleeping Cuurent:less than 1uA
5.Low Radiation
6.Small Size
7.Satable And Reliable Frequency

Pin Definition:
1.ANT:connect with 50 ohm antenna
2.GND:connect with poower ground
3.VCC:connect with power positive
4.CS:module enabled,connect with low level can operate normally,if hanging or connect with high level will in sleep mode
5.DATA:data output port
6.GND:connect with power ground

Appliation Fields:
1.Renote Control Door
2.Wireless Security Alarming
3.Wireless Industrial Control
4.Wirelss Data Transmission"
