- Model Number:8106
- Type:Drive IC
- Place of Origin:Guangxi, China
- Brand Name:Chipskey
- Nature:SmartRF04EB zigbee Emulator Programmer CC2530 CC2531 CC2540
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V

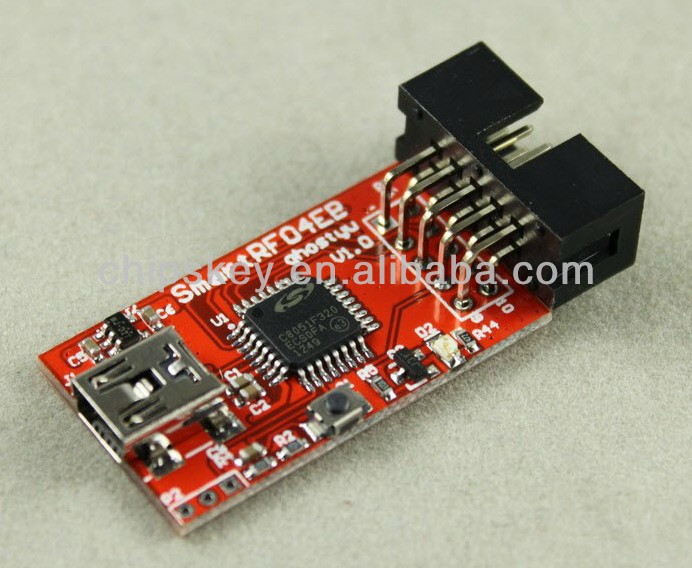

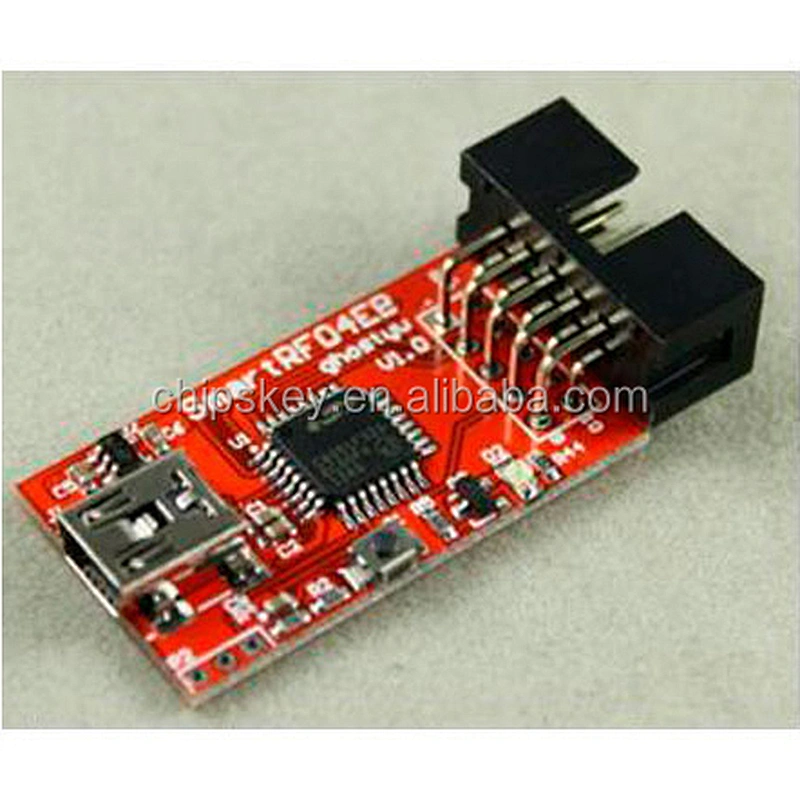

SmartRF04EB zigbee Emulator Programmer CC2530 CC2531 CC2540
Description
The CC Debugger is primarily used for debugging and programming the flash on CCxxxx 8051-based System-on-Chip (SoC) devices from Texas Instruments. CC Debugger also supports CCxxxx RF transceivers. In addition, CC Debugger is used for configuring the CC85xx devices with PurePath Wireless Configurator.
Key Features
Performance
Compatible with the original TI CC Debugger
Supported Operating Systems: Windows 2000, Windows xp sp2/sp3, Windows Vista 32bit, Windows 7 32bit
Target voltage: 1.2V~3.6V
Capable of powering the target board from the debugger
Operating temperature: 0°C~85°C
Supported Software
IAR Embedded Workbench For C8051
SmartRF Flash Programmer
SmartRF Studio
SmartRF Packet Sniffer
PurePath Wireless Configurator
Connects to PC
Computer connection via USB interface
Connects to target board
Target board connection via 10-pin IDC connector (2x5 2.54mm pitch)
LED Status
OFF: The debugger has no power or there is no valid firmware on the debugger.
AMBER (BOTH LEDS ON): The debugger is powered, but there is no valid firmware.
RED LED BLINKING: The Debugger is in Boot Recovery Mode.
RED LED ON: No device detected. This might be due to old firmware on the CC Debugger, or a problem with the hardware connection (make sure the target board is properly powered and connected correctly).
GREEN LED ON: The target device has been properly detected. It is possible to start programming/debugging.
