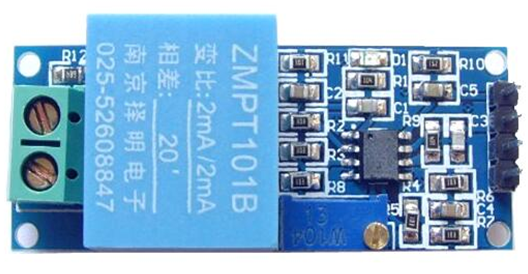

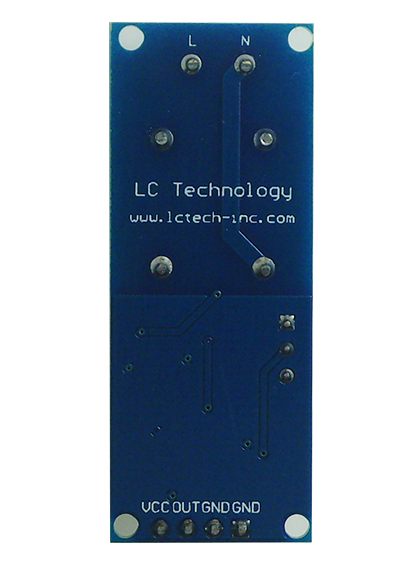

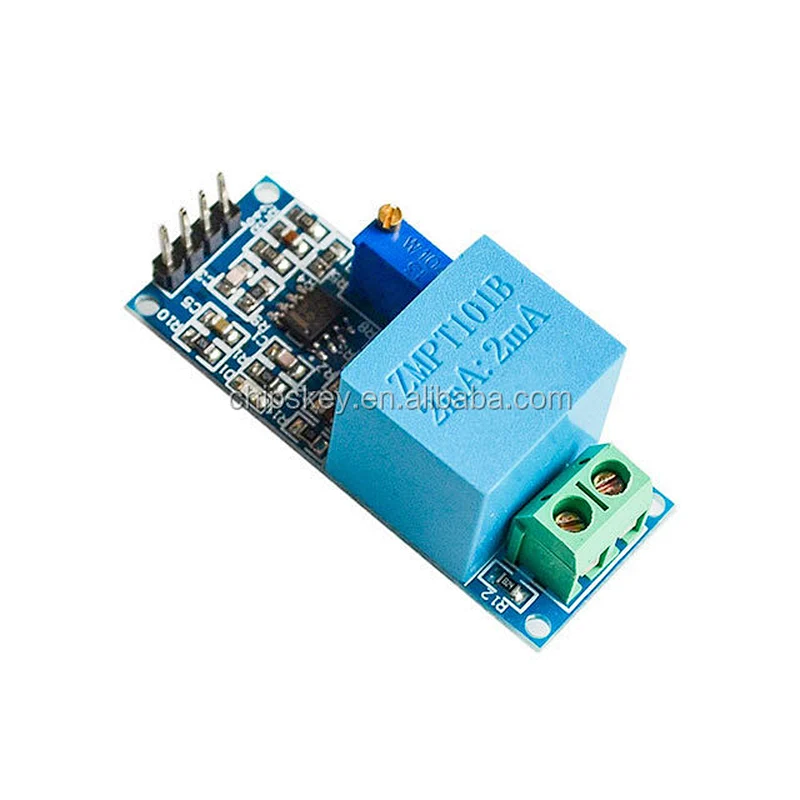

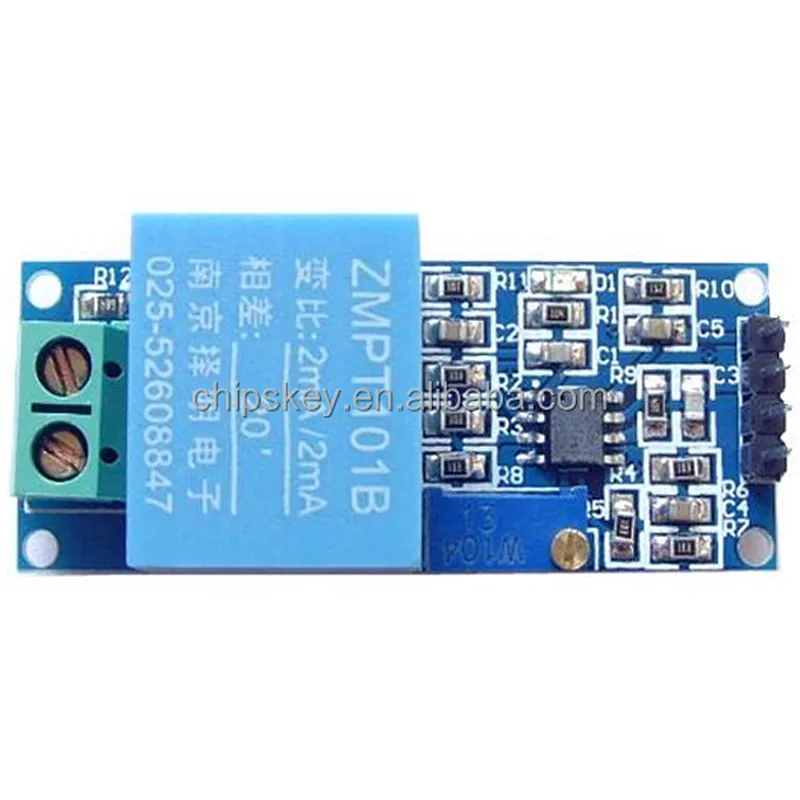

Single Phase AC Voltage Sensor Module

• Model Number:19J020
• Type:Sensor Development Boards and Kits
• Place of Origin:China

Brief introduction

1, on-board micro-precision voltage transformer

2, on-board high-precision op amp circuit, the signal for precise sampling and appropriate compensation function

3, the module can measure less than 250V AC voltage corresponding to the analog output can be adjusted

4, PCB board size: 49.5 (mm) x19.4 (mm)

  5, the power supply voltage (VCC) 5-30V

6, the output voltage 1 / 2VCC
7, the output signal is a sine wave, it can be used for AD sampling
