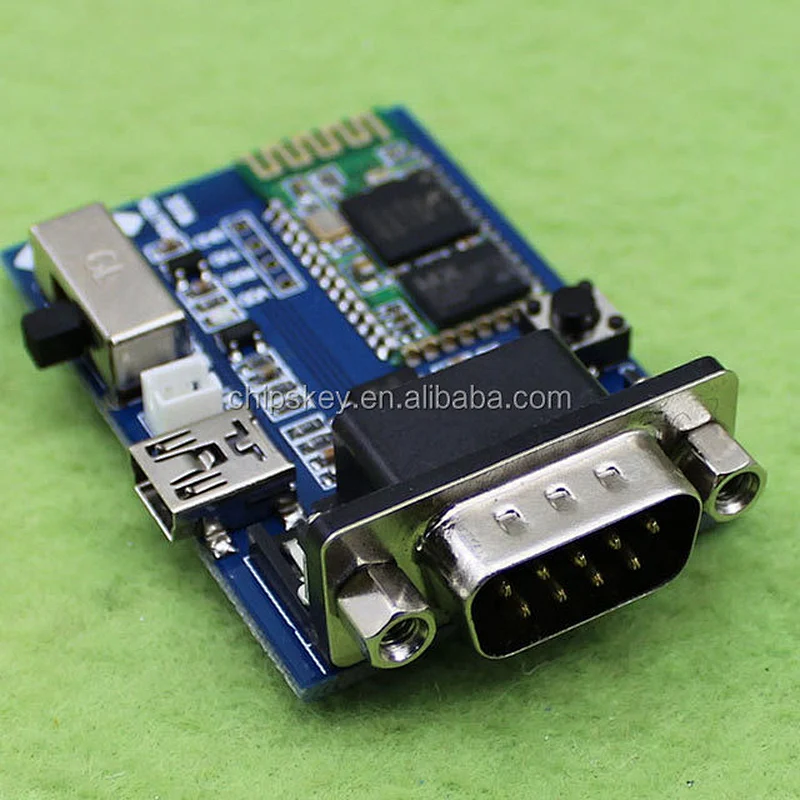

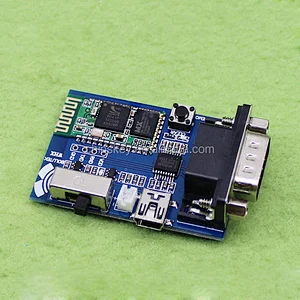

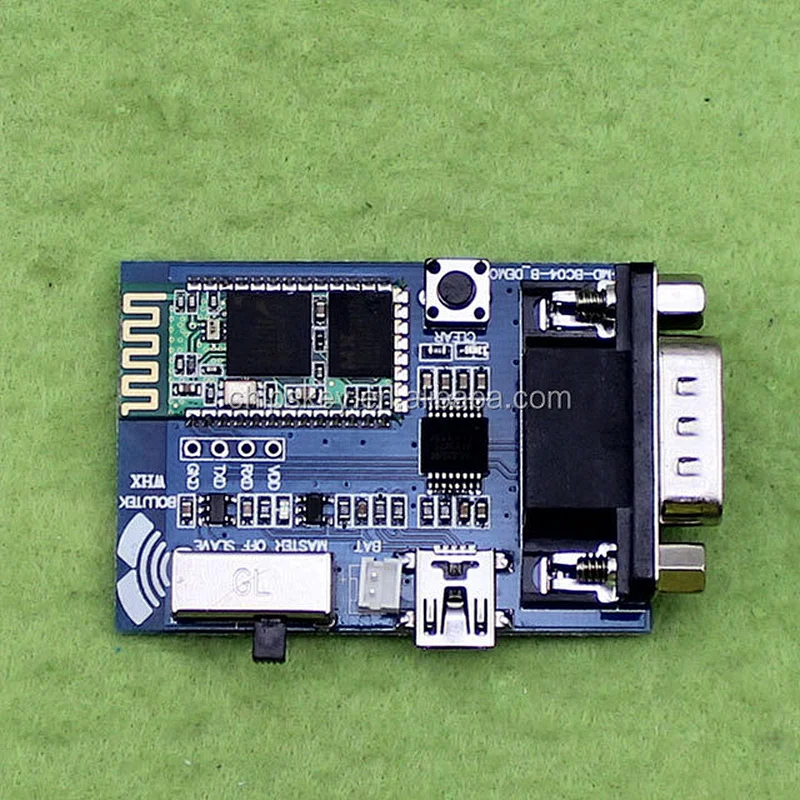

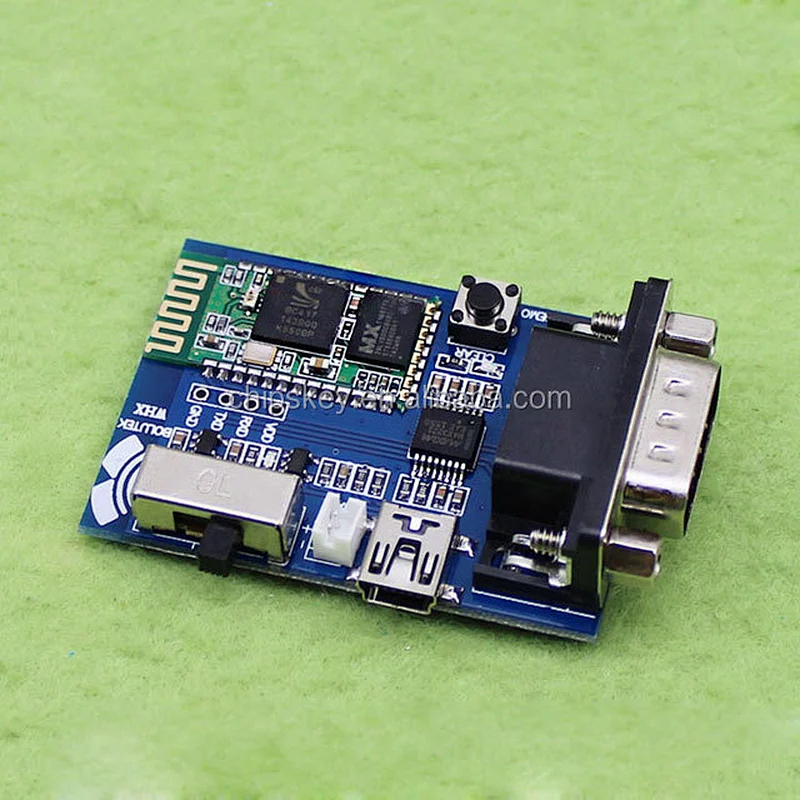

RS232 Serial Adapter Communication Master-Slave 2 Modes MINI USB

• Model Number:11B158
• Place of Origin:Guangdong, China, CN
• Brand Name:Chipskey
• Category:IC
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C

RS232 Serial Adapter Communication Master-Slave 2 Modes MINI USB

Main Specifications
 Standard: v2.1 + EDR,
  protocol: serial port profile (SPP)
 Interface Interface:RS232
 Communication speed: 1200,2400,4800,9600,19200,38400,57600,115200,230400,460800,921600,1382400bps
 Modulation: 2.4G ISM Direct Sequence hopping (FHSS)
 Communication distance: open space 15 meters, Class 2 level
transmit power: 4 dBm
 Receiving sensitivity: -79dBm
 Operating voltage: 5V
Operating current / Sleep Current: 40mA / 1.6mA (typ)
 Operating ambient temperature / Storage temperature: -10-50 ° C / -20-80 ° C
 Dimensions: 56.5mm * 38.5mm * 14.5mm
