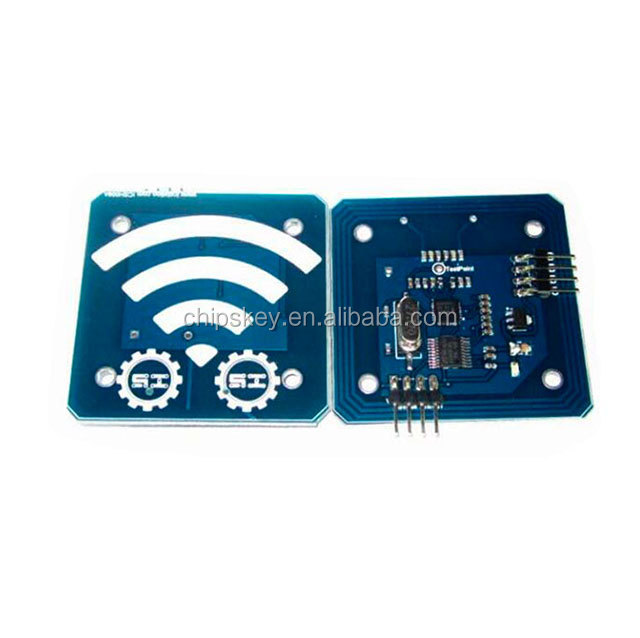

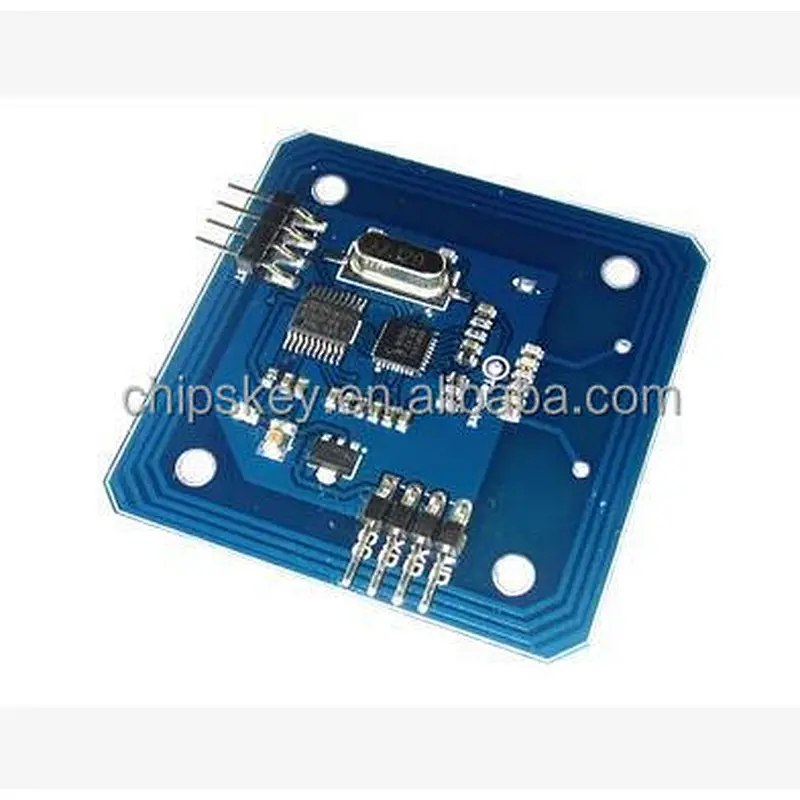

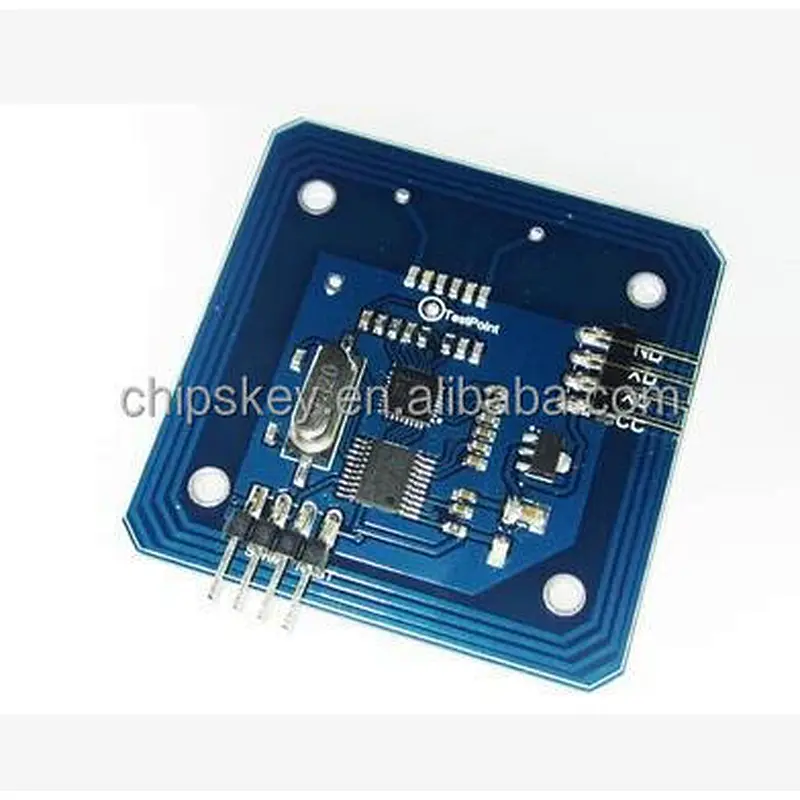

RFID Reader Module RC522 Serial Reader 13.56mhz Ic Card RF Module

• Model Number:27161
• Type:RF/Wireless Development Boards and Kits
• Place of Origin:China
• Delivery Time:24 hours

 FID Reader Module RC522 Serial

Related parameters:

Serial port supply voltage (vcc): 5v

RX serial port to receive

TX serial port to send

VCC 5v power supply

GND power ground

Function Description

Product Type: MIFARE RC522

Sleep current: <80uA

Peak current: <30mA

Operating frequency: 13.56MHz

Reading distance: 0 ~ 45mm

Interface: UART TTL

Baud rate: 115200

Data transfer rate: up to 15Mbit / s

Physical characteristics: Size: 50mm * 50mm

Environmental Operating temperature: ranging from -20 to 80 degrees

Storage temperature: range of -40 - 85 degrees

Humidity: relative humidity 5% - 95%

Protocol: ISO14443A compliant, support Mifare1 S50, S70
