- Model Number:27164
- Type:other
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Delivery Time:24 hours

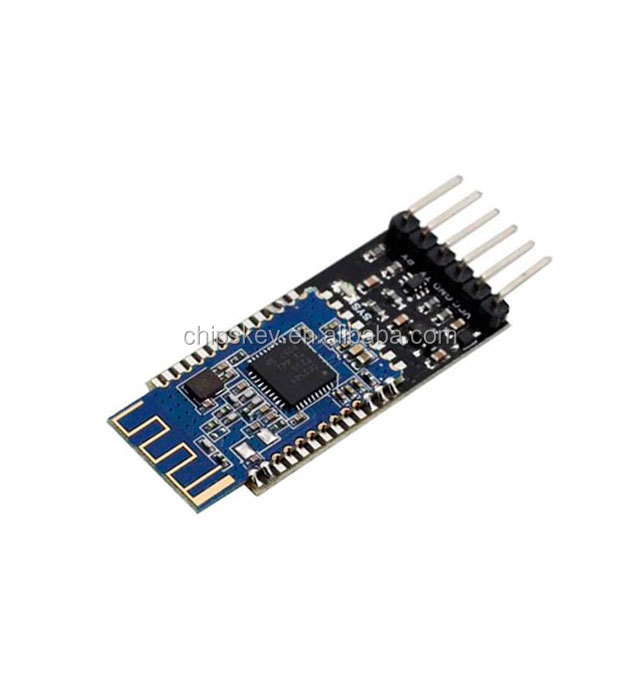

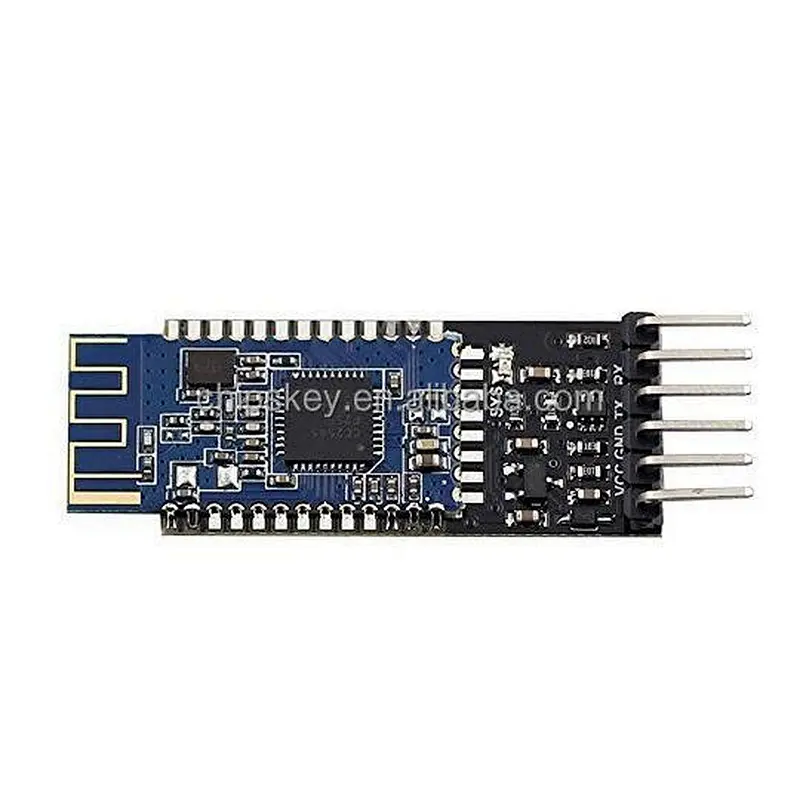

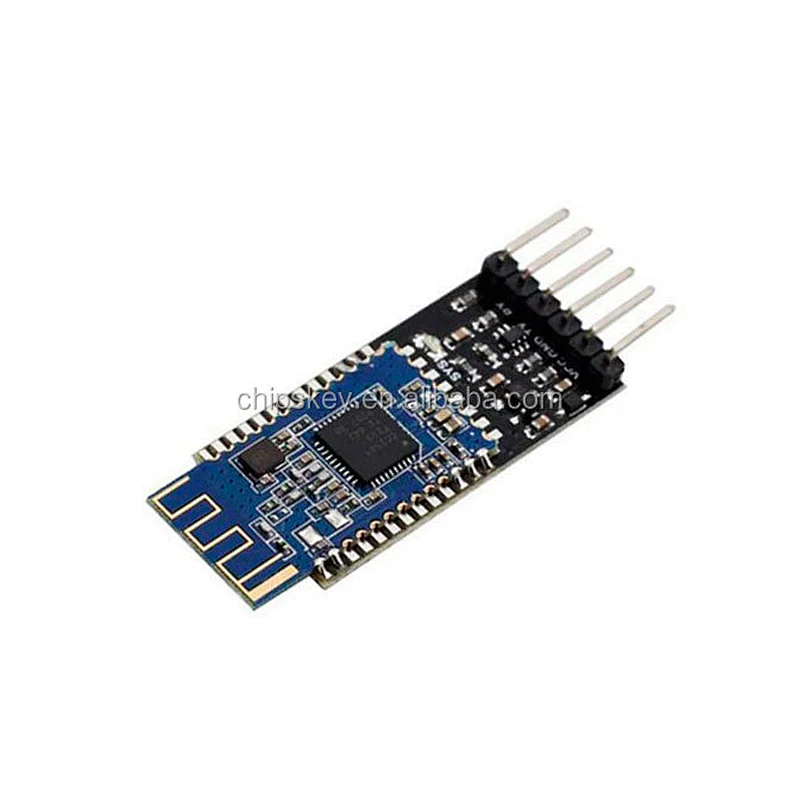

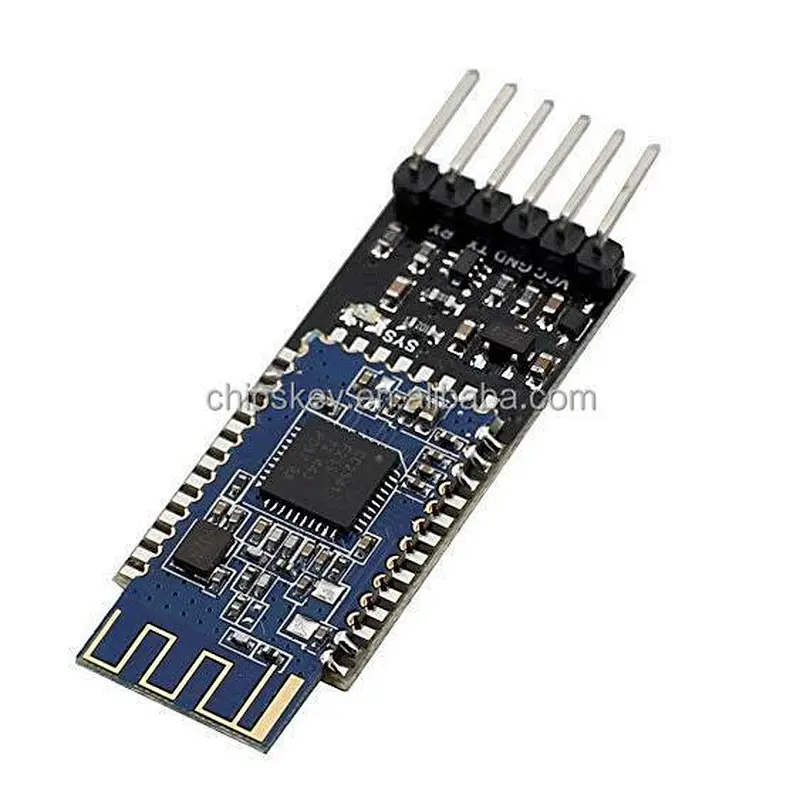

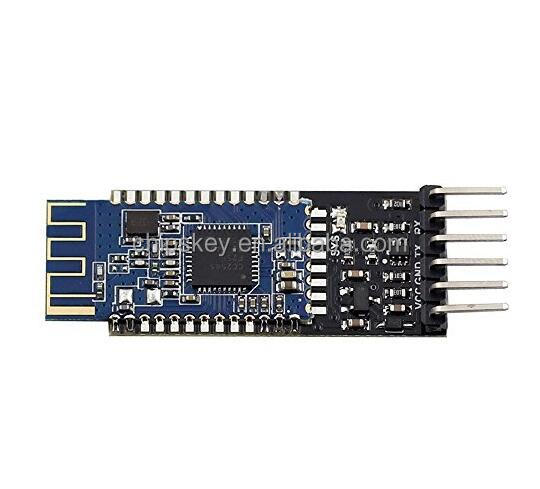

Real HM-10 4.0 Master
Product Description
Note: We have full tech support to assist you with sample projects. For more Sample Code and DIY Project Tutorial,
Product Overview
HM-10 series module use TI CC2540 chip, configure 256KB space,
support the AT command.
Users can change the role (master, slave mode) and the serial port baud rate, equipment name, matching password and other parameters on-demand.
It is very flexible to use.
Product Parameters
Protocol: Specification V4.0 BLE
USB Protocol: USB V2.0
Operating Frequency: 2.4GHz ISM band
Modulation Mode: GFSK (Gaussian Frequency Shift Keying)
Transmitting Power: not more than 4dBm
Sensitivity: ≤-84dBm at 0.1% BER
Transmission Rate: Asynchronous: 6 kbps
Synchronous: 6 kbps
Security Feature: Authentication and encryption
Support Service: Central & Peripheral UUID FFE0, FFE1
Power Supply: +5VDC 50mA
Operating Temperature: -5 ~ +65 Centigrade
Physical Dimension: 27mm x 13mm x 2.2 mm.
Application
Industrial remote control, remote sensing
POS system, and keyboard, mouse, and joystick
Automobile testing equipment
Portable, battery-powered medical equipment
Automation data acquisition
remote control toys
Wireless LED display system
printer
Smart Home and Industrial Control
Package including:
1x HM-10 Module
