- Model Number:11B132
- Place of Origin:Guangdong, China, CN
- Brand Name:Chipskey
- Category:IC
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C

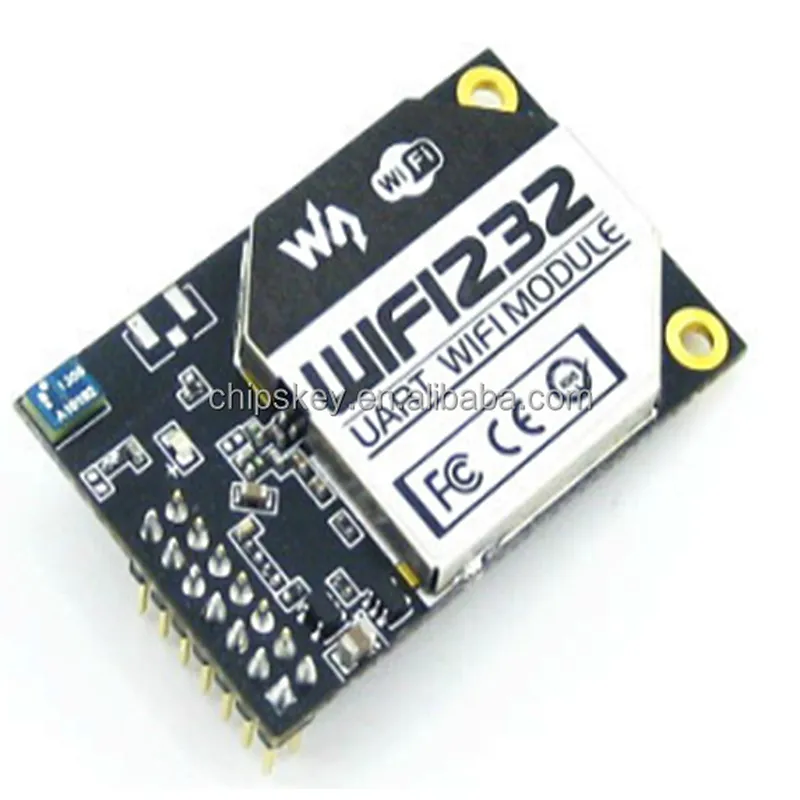

WIFI Module RS232 UART to WIFI Converter On-board chip antenna USR-WIFI232-B
Product Introduction
Product features, performance:
Using marvell leading professional high quality WIFI module, high-speed core processing power and ensure stability.
A router solution: hardware AP, Station mode supports up to 32 modules connected.
Communication distance: External antenna 3DB 400 meters, 150 meters built-in antenna. (Work environment: open to the horizon; the hardware configuration: two modules for transmission)
Support WIFI encryption and algorithms: WEP / WAP-PSK / WAP2-PSK / WAPI, etc.
Support wireless LAN standard: IEEE 802.11 b / g / n
Supported network protocols: TCP / UDP / ARP / ICMP / HTTP / DNS / DHCP
Support multiple operating modes: TCP Server / TCP Client / UDP (TCP Server mode can support up to 32 Client connections)
Support to restore factory settings: Reload IO mouth by pulling one second to restore the factory settings, no need to worry about setting error
Support routing / bridging mode network architecture
Supports transparent / protocol data transfer mode, up to 1M cache space
Supports DHCP to automatically obtain IP
Support AT + instruction set configuration
Support Web Configuration
Supports serial sub-frame delay and the amount of data set
Supports baud rates up to 460800bps
Built-in watchdog and heartbeat mechanism
Built-PA, 57600 baud bidirectional pass each other without loss, easy to wear three concrete walls
Offers a variety of software support: WINDOWS, test software under Andrews
Features:
Start time: 6S. (Available in the market, most ordinary WIFI module startup time than 6S, part even close to 30S)
Power: 3.3V power supply, 170mA-300mA. (Power is far below normal market WIFI module)
Protective measures: the module packet core part. (On the market most of the modules, chips directly bare, exposed)
AP + STA mode: support. (Other manufacturers of modules do not support this feature)
FCC / CE certification: The products sold in the European Union and the United States can be used. (Only a few manufacturers of these modules certified)
TCPB features: Support 2 x TCP function, which can support two network connections. (Available in the market do not have this feature common module)
Product parameters:
Interface: 2.0mm pin spacing
Power: 3.3V DC
Dimensions: 25 x 40 (mm)
Working temperature: -20 ~ 80 ° C

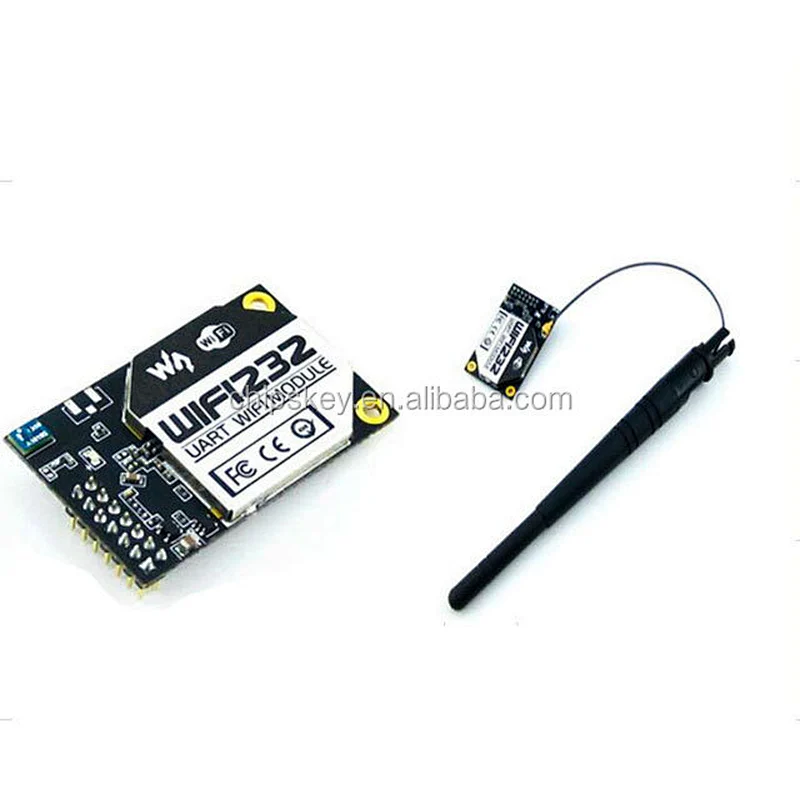

Antenna: Optional built-in antenna or external antenna
