- Model Number:8107
- Type:Drive IC
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Part number:CC Debugger CC-Debugger
- Brand:MIC
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Supply Voltage:1.5V-6V

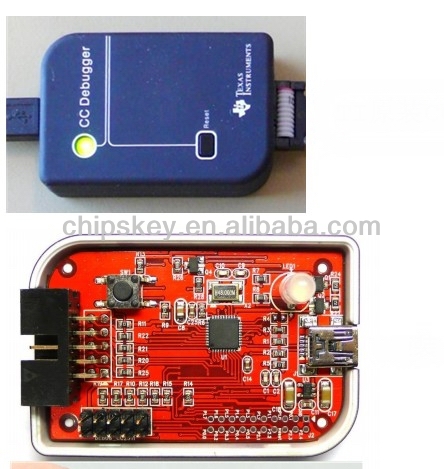

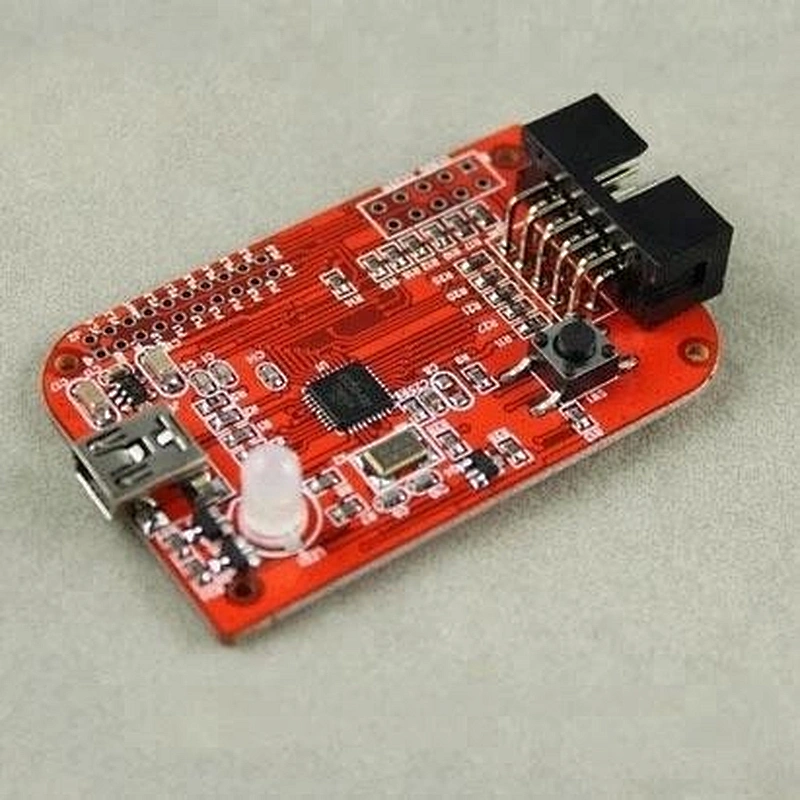

CC Debugger CC-Debugger CCxxxx ZigBee Wireless Module Emulator Programmer for RF System-on-Chips
Product Description
The CC Debugger is primarily used for debugging and programming the flash on CCxxxx 8051-based System-on-Chip (SoC) devices from Texas Instruments. CC Debugger also supports CCxxxx RF transceivers. In addition, CC Debugger is used for configuring the CC85xx devices with PurePath Wireless Configurator.
Key Features
Performance
Compatible with the original TI CC Debugger
Supported Operating Systems: Windows 2000, Windows xp sp2/sp3, Windows Vista 32bit, Windows 7 32bit
Target voltage: 1.2V~3.6V
Capable of powering the target board from the debugger
Operating temperature: 0°C~85°C
Supported Software
IAR Embedded Workbench For C8051
SmartRF Flash Programmer
SmartRF Studio
SmartRF Packet Sniffer
PurePath Wireless Configurator
Connects to PC
Computer connection via USB interface
Connects to target board

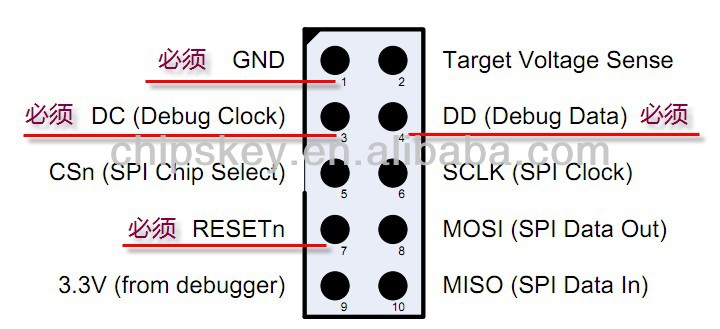

Target board connection via 10-pin IDC connector (2x5 2.54mm pitch)
Support Software:
SmartRF Studio, SmartRF Flash Programmer, IEEE Address Programmer, PacketSniffer, PurePathWireless, IAR for 8051 multiple versions (including the latest z-stack stack used 8.10), and so on!
Supported operating systems:
WINXP, WIN7
Support chips overview:
TI 8051 CC with a full range of chip and a plurality of transceivers, as follows:
A, the chip can be programmed and simulation are:
CC1110, CC1111
CC2430, CC2431
CC2510, CC2511
CC2530, CC2531, CC2533
CC2540, CC2541
CC2543, CC2544, CC2545
B, can be controlled via SmartRF Studio chips are:
CC1120, CC1121, CC1125, CC1175
CC1101, CC110L, CC113L, CC115L
CC2520
C, can also be used to program the PurePath Wireless chip
CC8520, CC8521
CC8530, CC8531
