- Model Number:31009
- Type:Data Conversion Development Boards and Kits
- Place of Origin:China
- SKU:31009
"product description

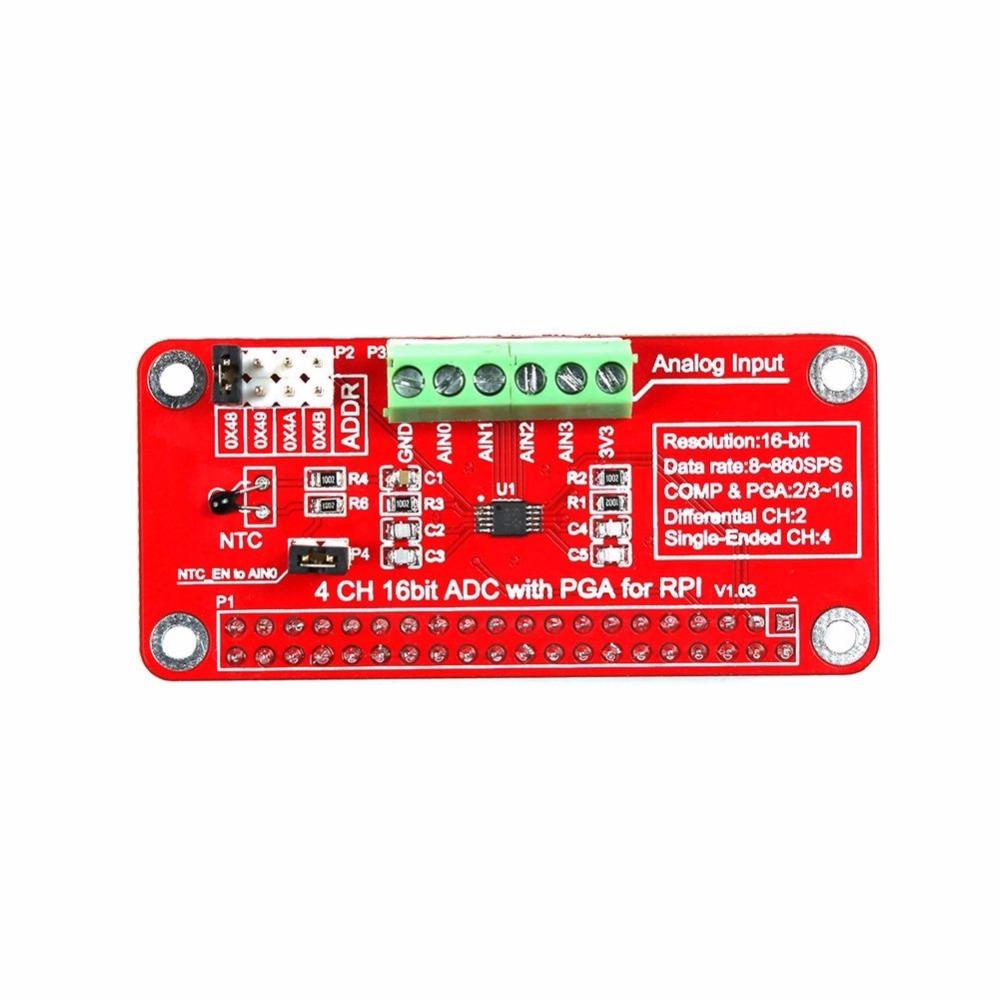

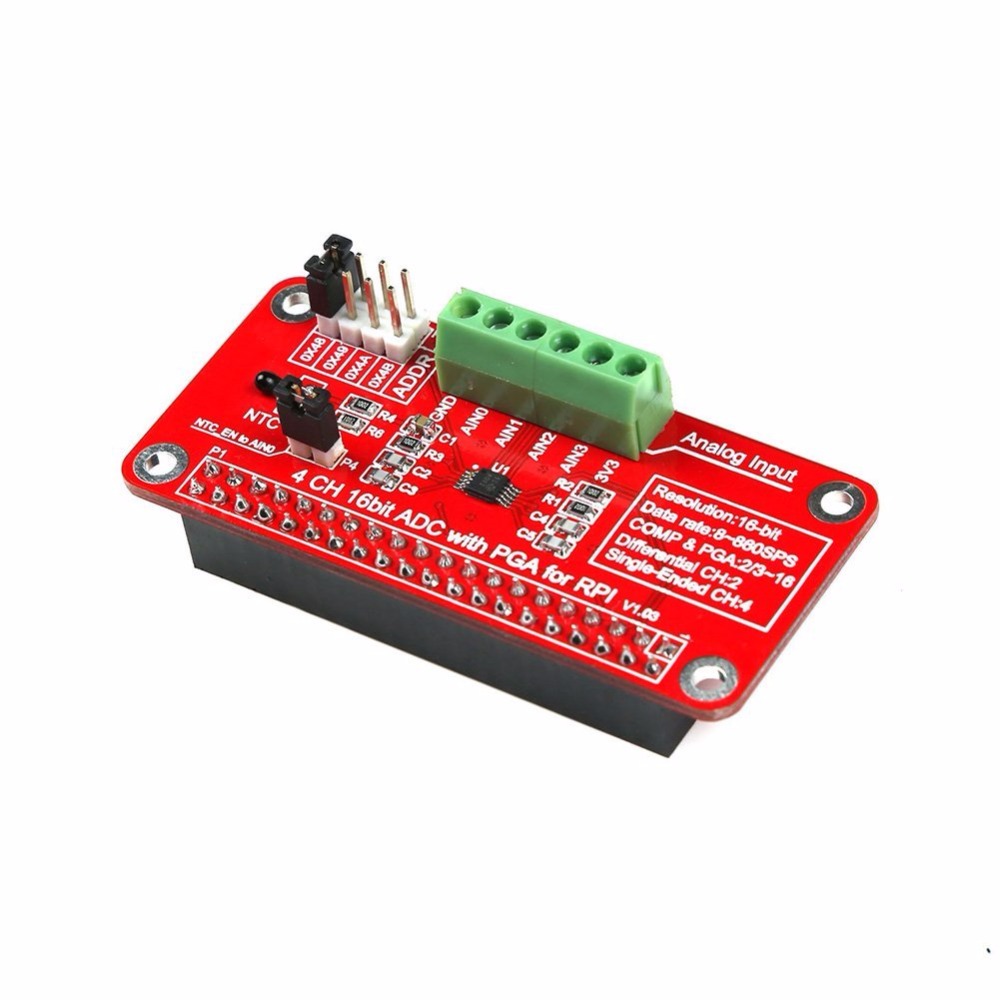

16-bit I2C ADS1115 ADC module
description
The ADS1115 is a precision analog-to-digital converter (ADC) with 16-bit resolution in an ultra-small MSOP-10 package.
The data is transmitted through the I2C-compatible serial interface and can select from four I2C slave addresses, using a single 3.3V power supply.
It can be used to detect analog signals and convert them to digital signals.
You can connect a handle or other analog sensors such as NTC, temperature, dust sensor and more.
characteristic
Size: 65.0 mm x 30.0 mm x 18.0 mm
Analog input voltage: GND to VDD
Programmable data rates: 8SPS to 860SPS
Low internal drift: Voltage reference
Internal PGA: Available
Resolution of 16 bits
I2C interface: Pin-selectable address
Number of channels: 4 single-ended or 2 differential inputs
Programmable comparators: 2/3 ~ 16
Internal NTC support: Available
How to connect
Just plug the module into GPIO.
Note: Fit the pin of the first pin to your GPIO 1 pin.
product information
Package size 4.7 x 3 x 1.6 inches"
