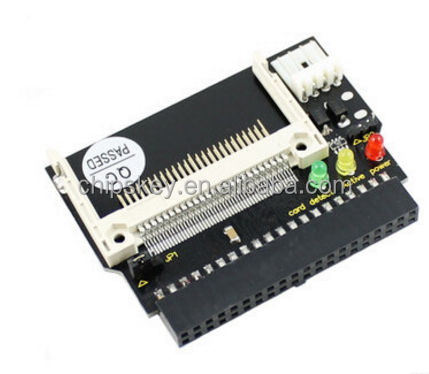

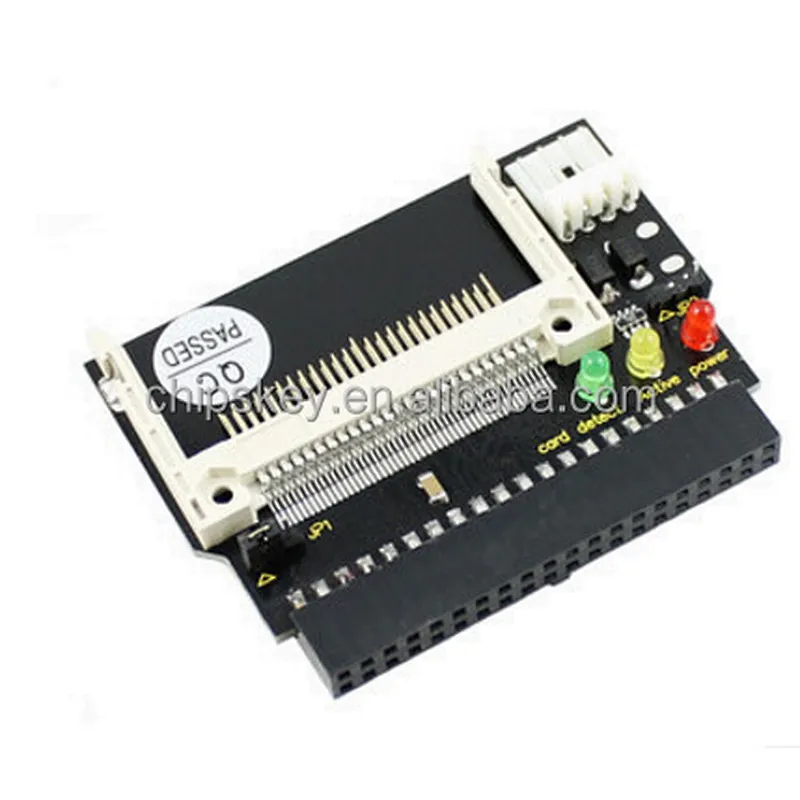

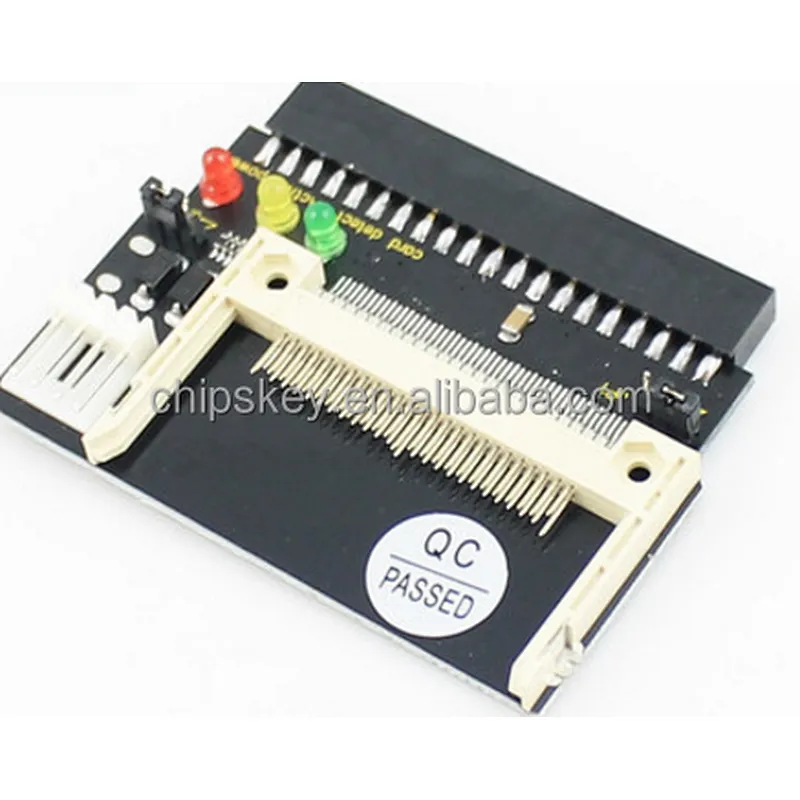

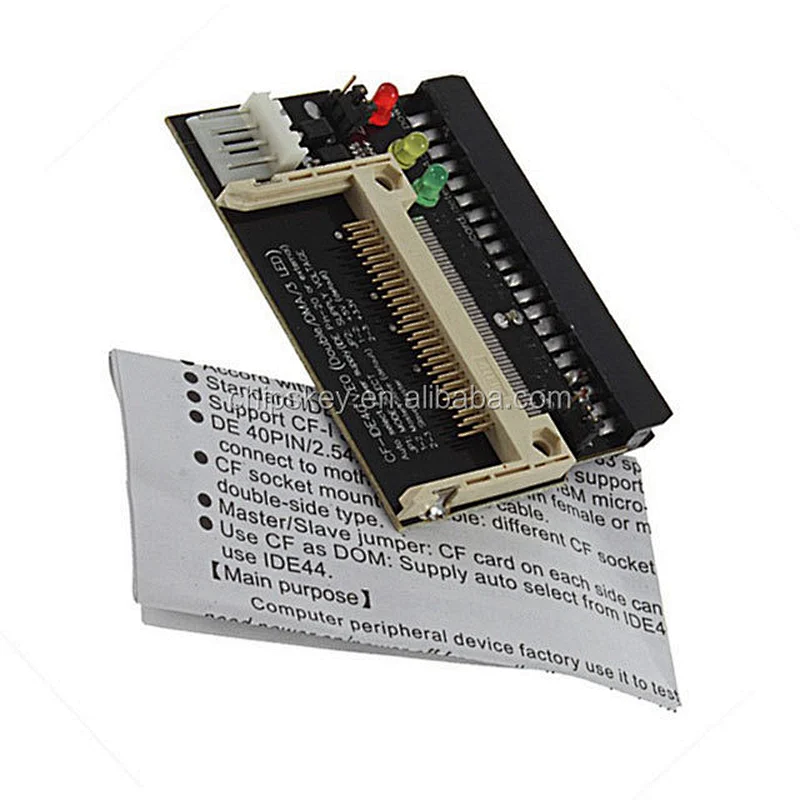

Power Frequency Converter Compact Flash CF to 3.5 Female 40 Pin IDE Bootable Adapter Converter Card

• Model Number:25089
• Place of Origin:China
• Brand Name:Chipskey
• Lead Time:24 Hours
• SKU:25089
• Stock:In Stock ,Can Ship out Immedicate

Power Frequency Converter Compact Flash CF to 3.5 Female 40 Pin IDE Bootable Adapter Converter Card

Flash (CF) card is a kind of movable solid state electronic disk, which has the standard IDE interface. The utility model is an electronic disk with small volume and large capacity. We developed a series of CF to IDE adapter to facilitate your use of CF card in the standard of IDE.

CF card is an electronic disk low price card, it is widely used in notebook computer, personal digital assistant (PDA), portable instrument, or industrial equipment. In the electronic factory, people use CF Kadang do the hard disk to store test software, because of the frequent on / off computer power is easy to damage the traditional mechanical hard disk.

Performance characteristics:

* compliance criteria: CF specification Ver2.0, IDE/ATA-33 specification.

* standard IDE interface: true-IDE mode, and support DMA-33 transfer mode.

* support CF-I and CF-II two types of cards: CF-II interface also supports IBM micro hard disk.

* IDE interface for 40 pin /2.54mm female connector can be directly inserted in the socket on the IDE card.

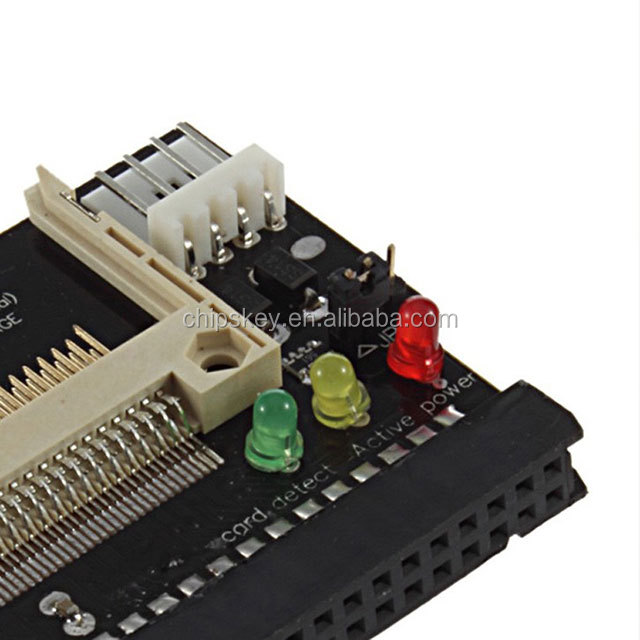

* 3 LED indicator: power (power LED), CF access (active LEd), the card is inserted (card detect LED)

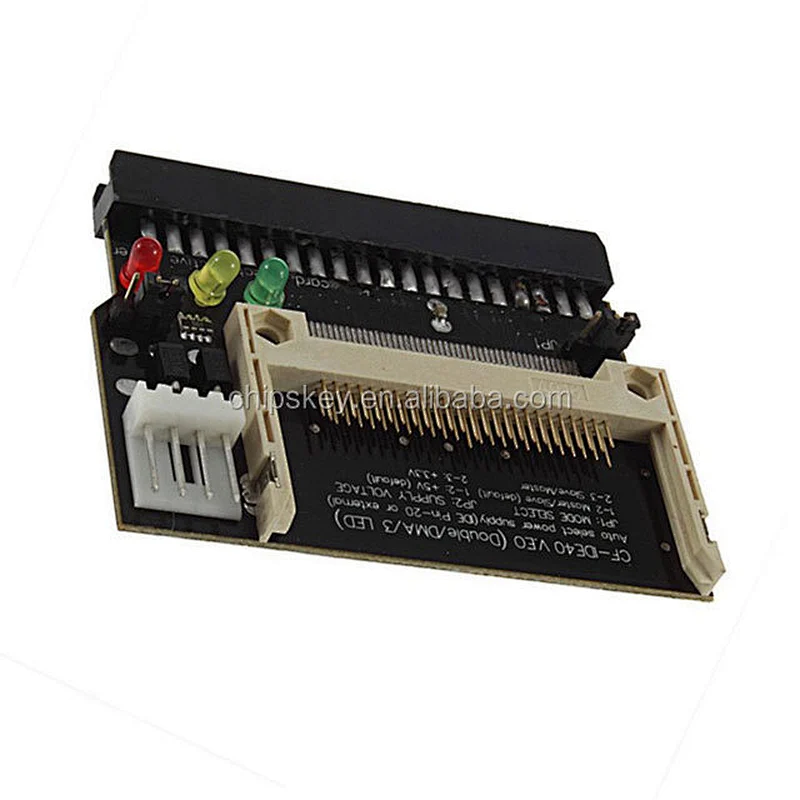

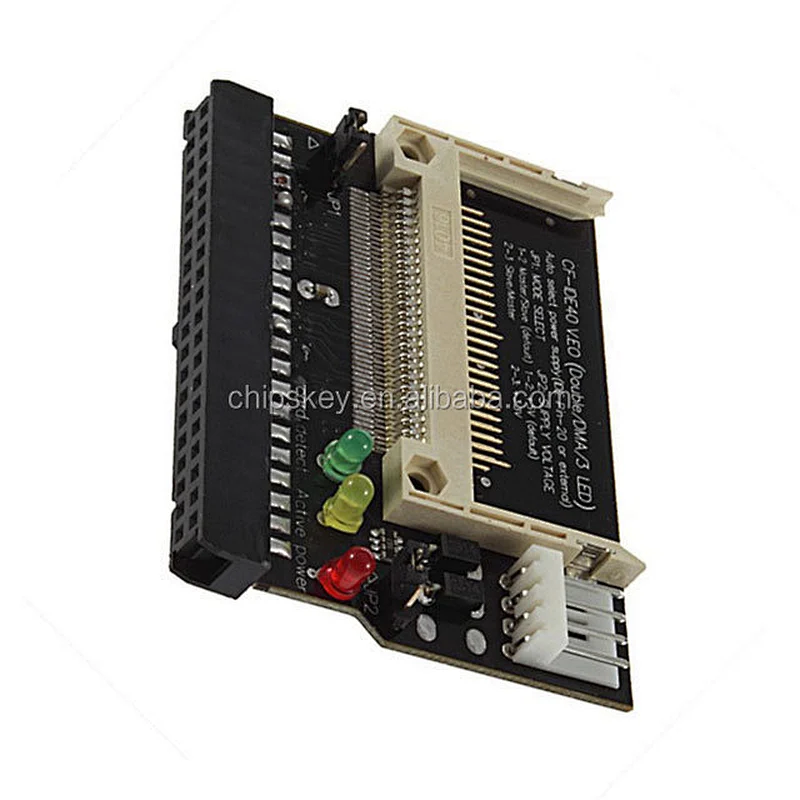

* Master / slave Jumper: can be configured as master or slave.

* CF Kadang DOM: automatic from the IDE 20 pin or external floppy drive power supply base.

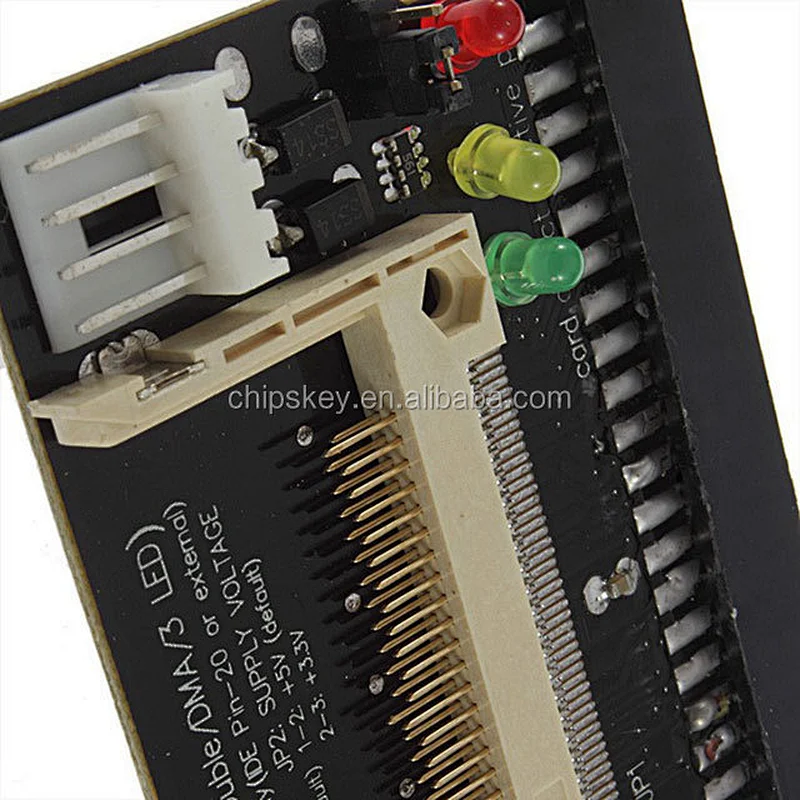

* 5.0V or 3.3V power supply: according to your CF to choose the appropriate power supply voltage.

Main use:

Computer peripheral equipment manufacturer with CF-IDE card and CF card test board, sound card, graphics card and other products. Frequent turn on / off power supply on these occasions. Traditional mechanical hard disk is easy to damage. CF is a kind of electronic hard disk, the principle is different from the mechanical hard disk, in these situations is not easy to damage.

Portable instrument with embedded X86 or RISC kernel usually have IDE interface, if the CF card can not connect directly to the instrument, you can use this converter to do.

Personal computer (PC): the computer is usually X86 kernel, which is the main purpose, some digital cameras have CF card interface, you can use this card to access your picture data on the desktop.

The use of the card industry PC and CF card, used to store the embedded operating system as embedded LINUX or WIN CE, you can use the CF

As a mobile hard disk, the data can be moved at will.
