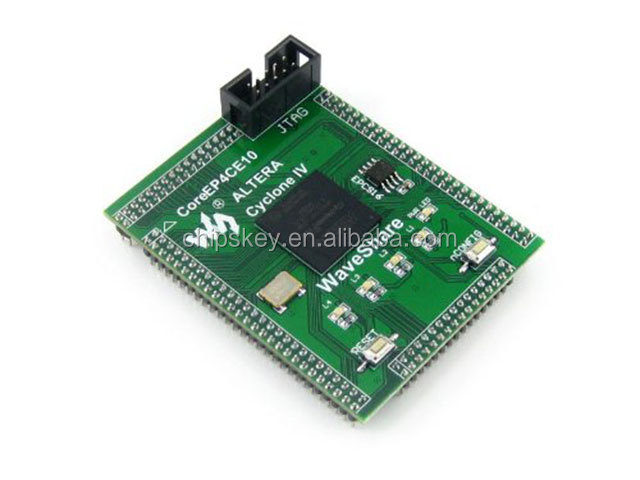

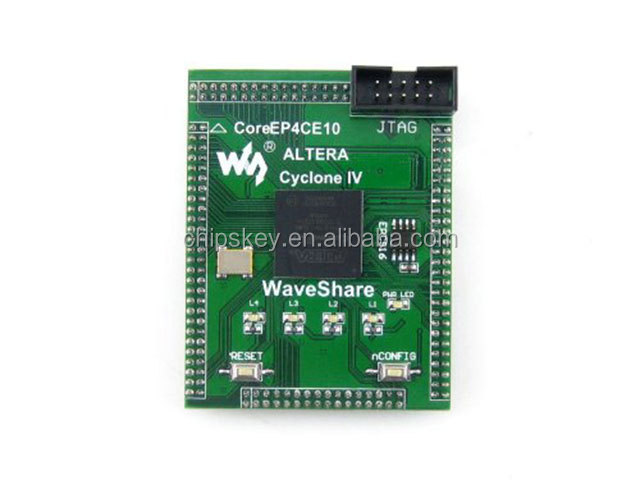

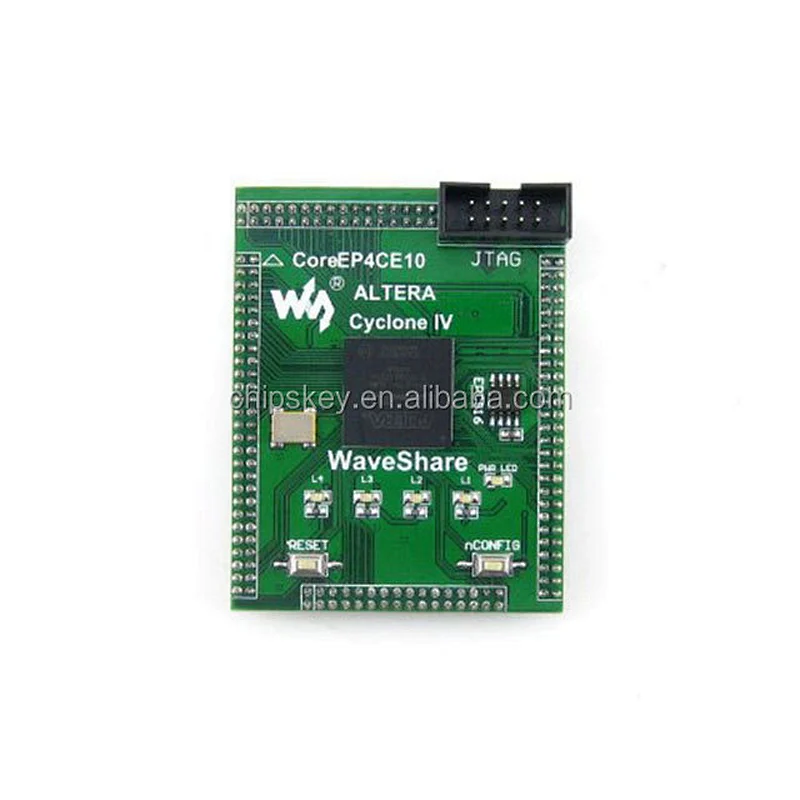

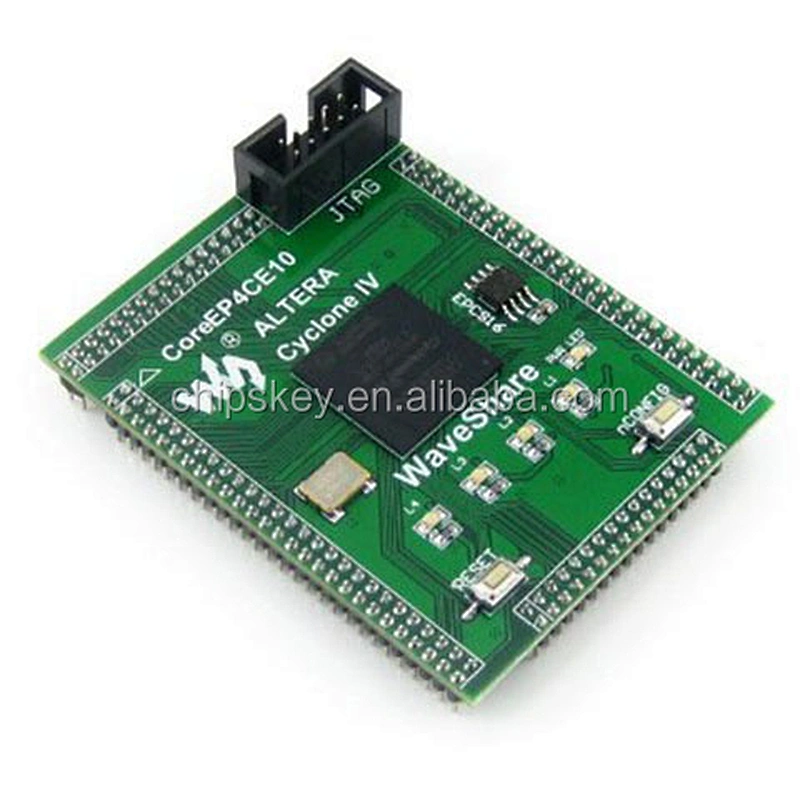

CoreEP4CE10 EP4CE10 EP4CE10F17C8N ALTERA FPGA Cyclone IV Development Board Full I/O Expander JTAG Interface

• Model Number:24037
• Type:Other
• Place of Origin:China

"product description
EP4CE10F17C8N: ALTERA Cyclone IV FPGA device with the following features:
Working frequency: 50MHz
Working voltage: 1.15V ~ 3.465V
I / O: 164
LE: 10K
Memory: 414kb
PLLs: 2
Debug / Programming: Supports JTAG
AMS1117-3.3 (bottom), 3.3V voltage regulator
AMS1117-2.5 (bottom), 2.5V voltage regulator
AMS1117-1.2 (bottom), 1.2V voltage regulator
EPCS16, on-board serial FLASH memory for storing code
Power Indicator
led
reset button
nCONFIG button: Used to reconfigure the FPGA chip, equivalent to resetting the power supply
50M active crystal
JTAG interface: for debugging / programming
FPGA pin extenders, VCC, GND, and all I / O ports are accessed through the expansion connector for further expansion

product information
Product size 7.1 x 3.9 x 3.5 inches
Product weight 1.44 ounces
"
