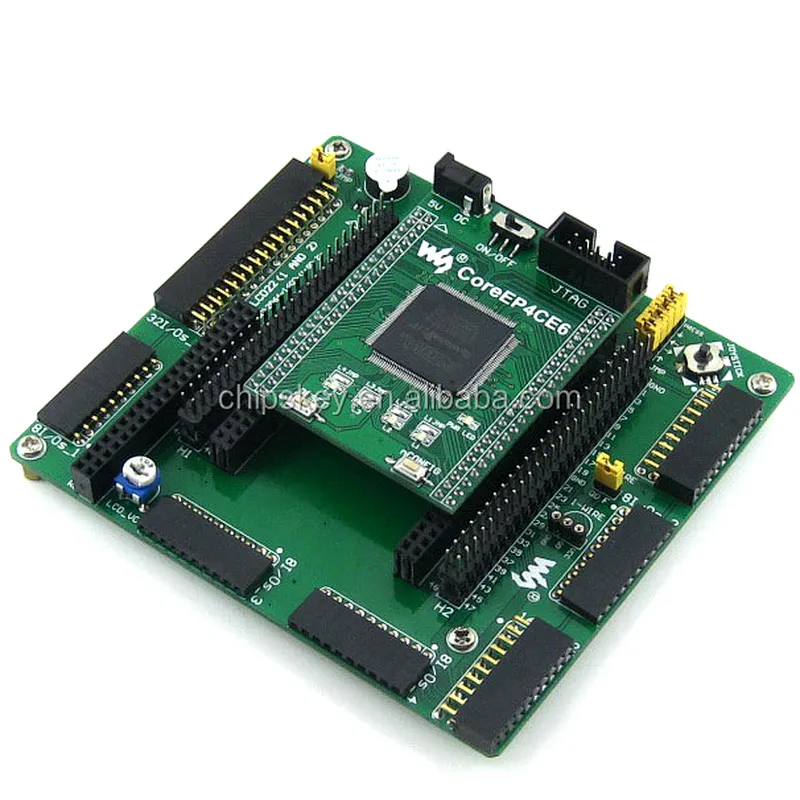

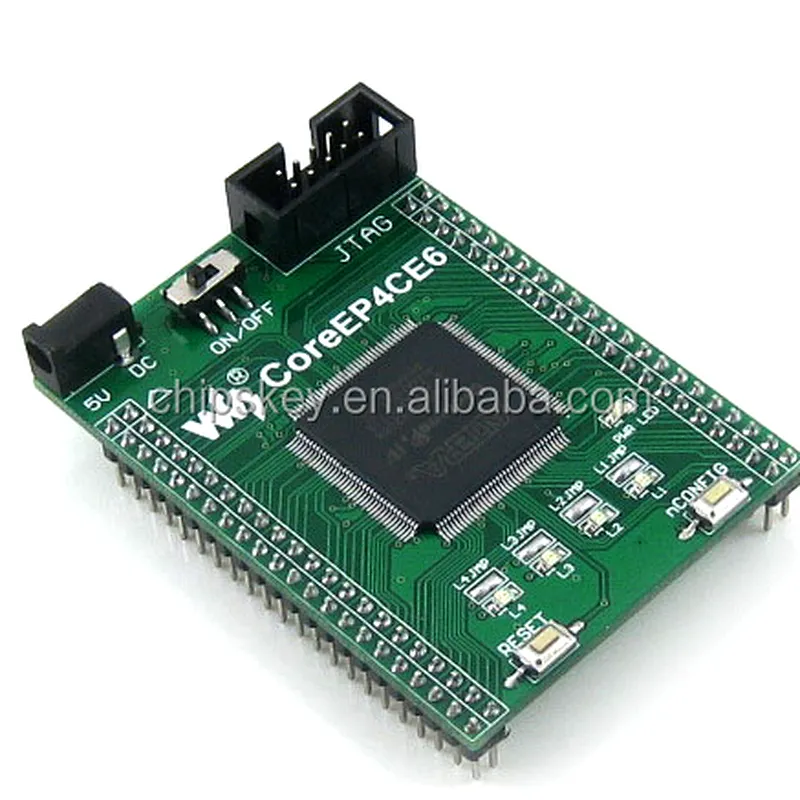

CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface
CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface
CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface
CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface
CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface
CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface
CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface
CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface
CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface

CoreEP4CE6 EP4CE6 EP4CE6E22C8N FPGA ALTERA Cyclone IV Development Board Full I/O Expander JTAG Interface

Model NO.
24028
Minimum order quantity
1 piece
Country of Origin
HK/SZ
Quantity:
  • Model Number:24028
  • Place of Origin:Guangdong, China
  • Brand Name:24028

Product Description



  1. EP4CE6E22C8N: the ALTERA Cyclone IV FPGA device which features:
    • Operating Frequency: 50MHz
    • Operating Voltage: 1.15V¡«3.465V
    • Package: QFP144
    • I/Os: 80
    • LEs: 6K
    • RAM: 270kb
    • PLLs: 2
    • Debugging/Programming: supports JTAG

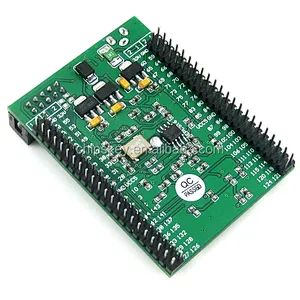

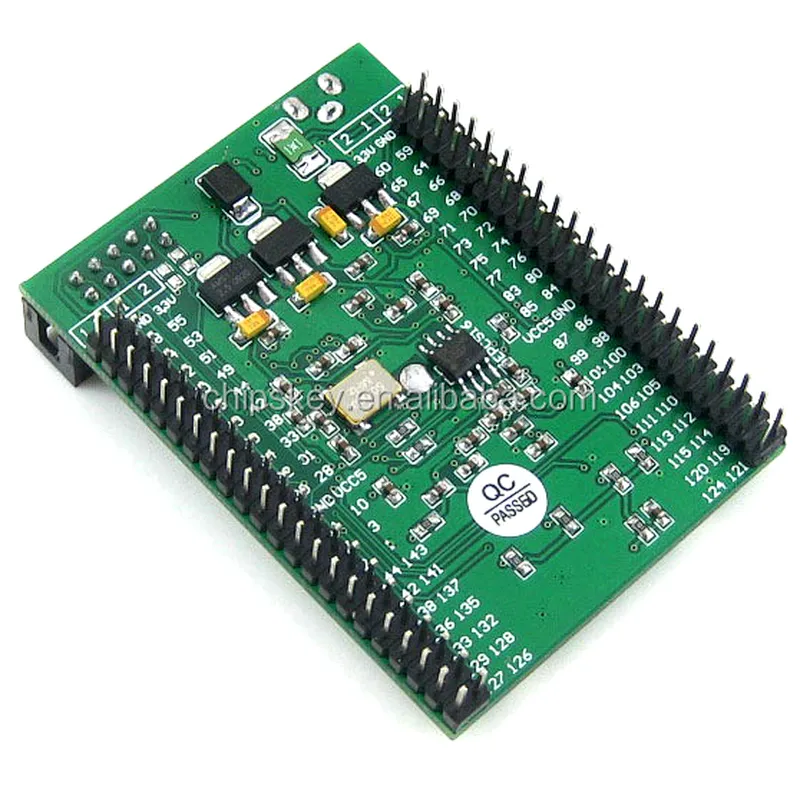

  2. AMS1117-3.3, 3.3V voltage regulator
  3. AMS1117-2.5, 2.5V voltage regulator
  4. AMS1117-1.2, 1.2V voltage regulator
  5. EPCS16, onboard serial FLASH memory, for storing code
  6. Power indicator
  7. LEDs
  8. Reset button
  9. nCONFIG button: for re-configuring the FPGA chip, the equivalent of power reseting
  10. Power switch
  11. 50M active crystal oscillator
  12. 5V DC jack

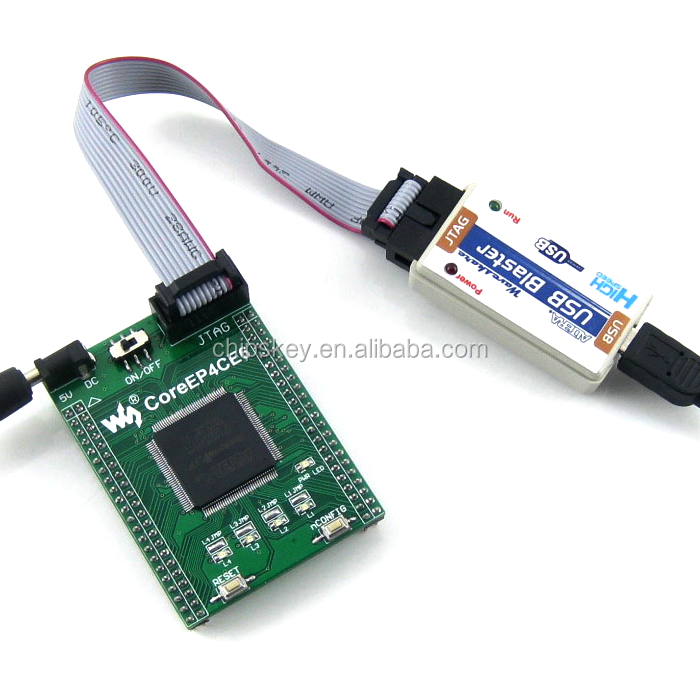

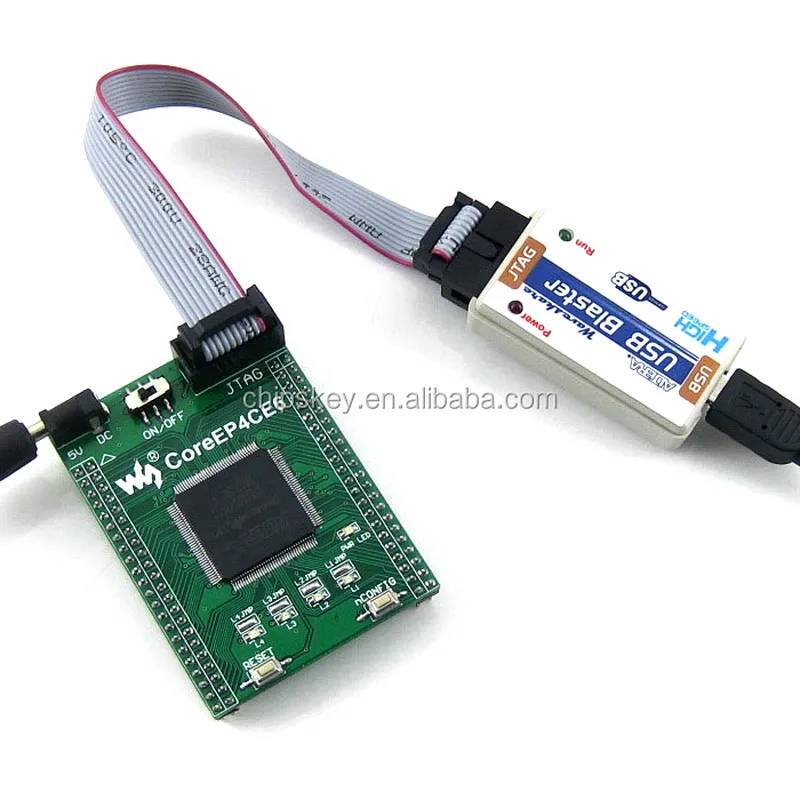

  13. JTAG interface: for debugging/programming
  14. FPGA pins expander, VCC, GND and all the I/O ports are accessible on expansion connectors for further expansion
  15. LED jumpers
  1. CoreEP4CE6 core board x 1
  2. USB power cable x 1
  3. User guide CD x 1
