- Model Number:26017
- Place of Origin:Guangdong, China
- Brand Name:Chipskey
- Part number:26017
- Brand:chipskey
- Lead Free Status:Lead free / RoHS Compliant
"product description

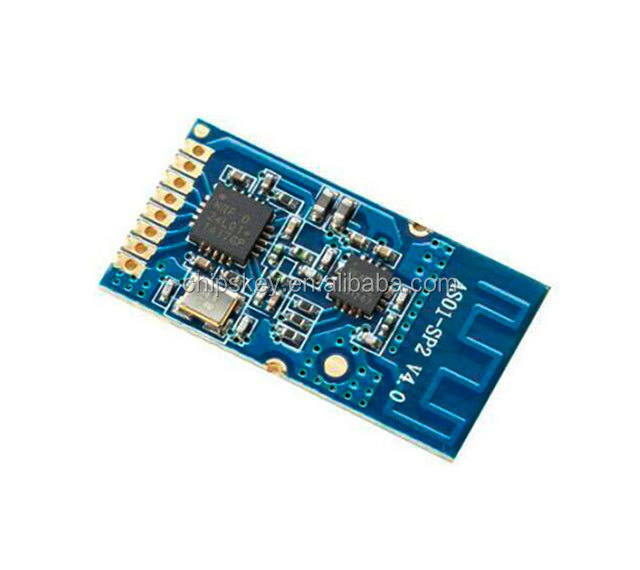

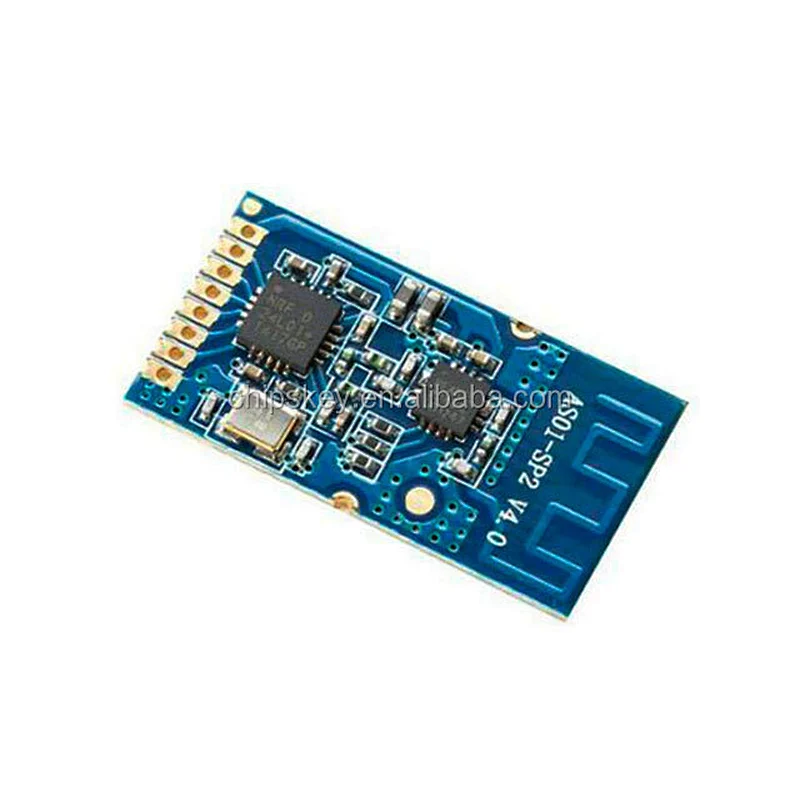

AS01-ML01SP2 is a 2.4GHz, 100mW, high speed (maximum air speed up to 2Mbps), high stability of the industrial wireless transceiver data transmission module.
Module comes with high performance PCB antenna, accurate impedance matching, using the original nRF24L01P NORDIC RF chip and RFX2401C amplifier chip, built-in LNA, receiver sensitivity increased by 10dBm, working in the 2.4GHz ~ 2.5GHz ISM band.
The module transmits enough power, spectral characteristics, small harmonics, small-channel crosstalk, small size, and all Murata raw materials, industry-standard models.
feature
It is equipped with high performance PCB antenna, the limit up to 1500 meters
Small size 25x13mm, 1.27mm single-chip package
Operating frequency range: 2.400GHz ~ 2.525GHz
Wide voltage range: 1.8V ~ 3.6V
Operating temperature range: -40 ℃ ℃ ~ +70 ℃
Four adjustable transmit power
Data transfer rate support 250Kbps, 1Mbps, 2Mbps
Receive current 23mA, 20dBm power emission current of 130mA, power-down mode only 1uA
6 data channels, 126 communication channels, 1MHz steps
CRC checksum and multipoint address enhancement""ShockBurst""mode, control hardware
Each packet can be transmitted 1 ~ 32Byte data
4-wire SPI communication port, communication speed up to 10Mbps, suitable for connection with a variety of MCU, programming simple
Software can set the working frequency, mailing address, transfer rate and packet length
Module IRQ interrupt output indication
application
Hotel electronic locks, biometric access control system
Intelligent teaching equipment, infant care, medical ward call system
Household appliances and lighting intelligent control
Water, electricity, gas, warm automatic meter reading or reactive compensation system and network monitoring
LED screen wireless transmission of text, pictures and radio control
Wireless crane scale, vehicle monitoring, equipment aging test wireless mouse, keyboard, joystick game console
UAV long-range communication
Wireless access
Wireless data communication
Security system
Remote control device
telemetry
Intelligent sports equipment
Industrial sensor
toy
"
