- Model Number:13D093
- Type:Sensor Development Boards and Kits
- Place of Origin:China
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Supply Voltage:1.5V-6V

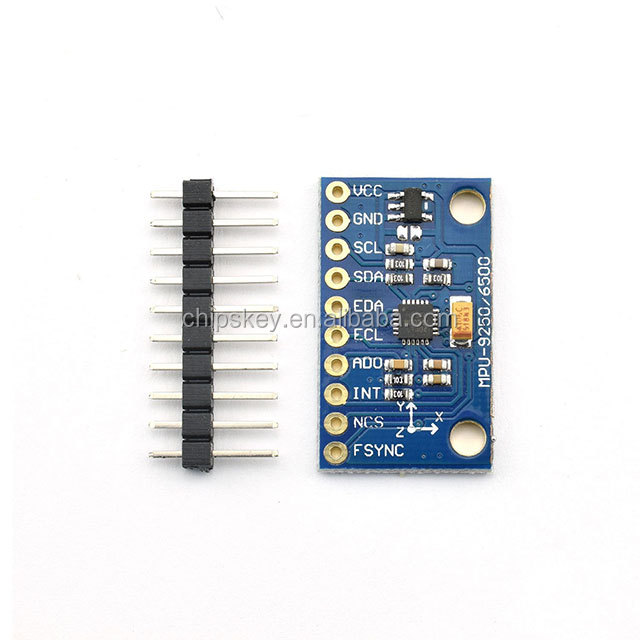

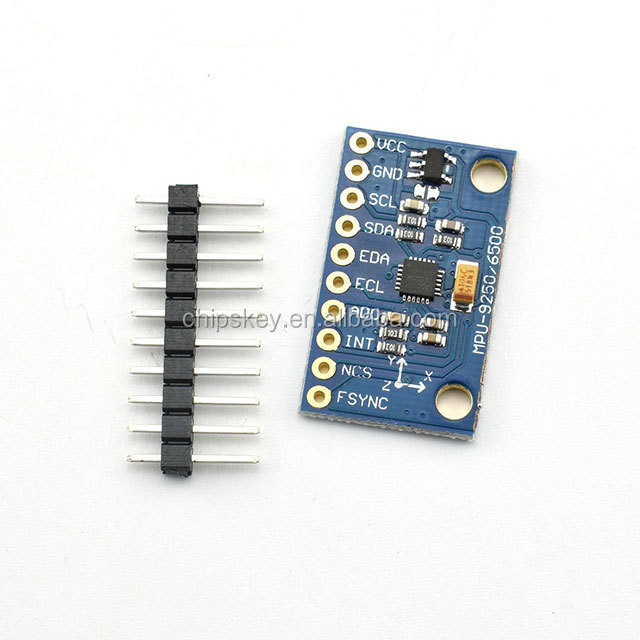

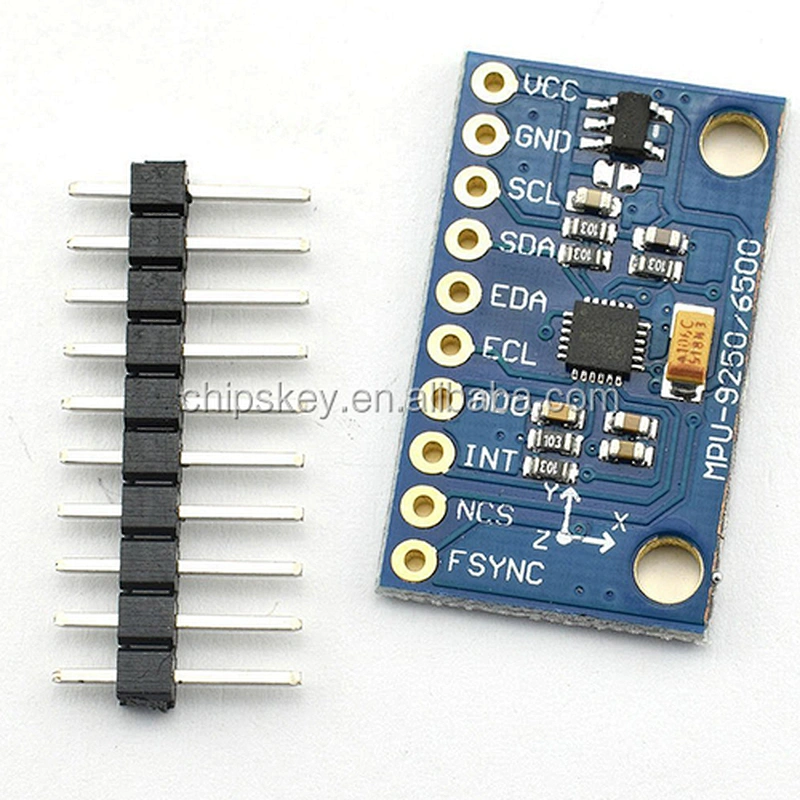

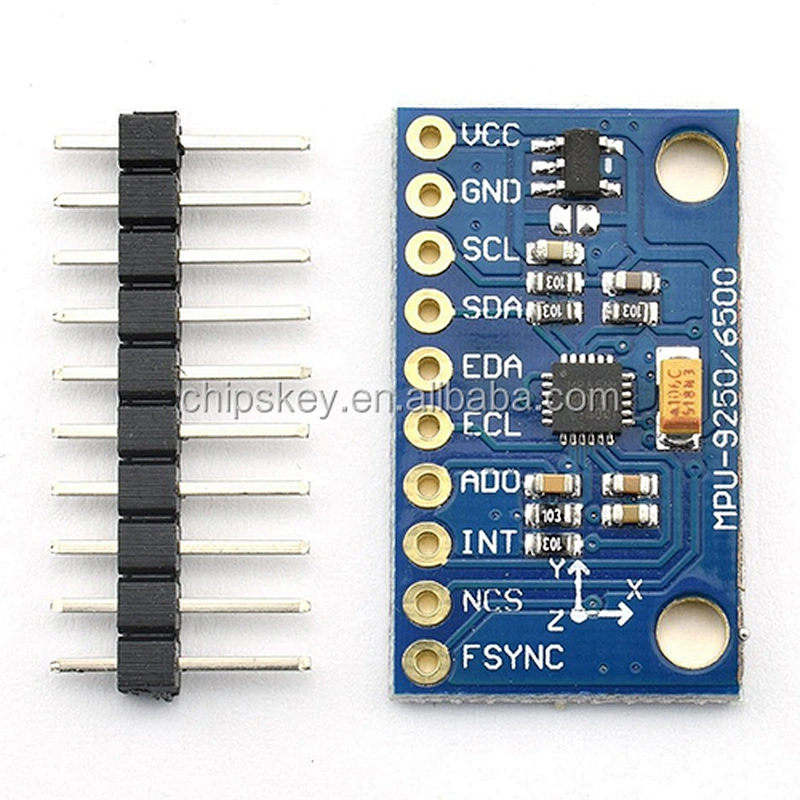

GY-6500 MPU6500 SPI/I2C Interface Alternative Sensor Three-axis gyroscope + triaxial accelerometer
Main Features: This module contains 16-bit ADC output of 3 axis accelerator and 3 axis gyro
Chip: MPU6500
Power voltage: 3 - 5V
Communication mode: I2C / SPI
Gyro range: + / -250, + / -500, + / -1000, + / -2000dps
Accelerator range: + / -2G, + / -4G, + / -8G, + / -16G
Register: 1MHz
SPI / I2C: 400KHz
Gyro working current: 3.2mA
Gyro sleeping current: 8uA
Accelerator working current: 450uA
Accelerator sleeping current: 8uA
Chip: MPU6500
Power voltage: 3 - 5V
Communication mode: I2C / SPI
Gyro range: + / -250, + / -500, + / -1000, + / -2000dps
Accelerator range: + / -2G, + / -4G, + / -8G, + / -16G
Register: 1MHz
SPI / I2C: 400KHz
Gyro working current: 3.2mA
Gyro sleeping current: 8uA
Accelerator working current: 450uA
Accelerator sleeping current: 8uA
| General | |
|---|---|
| Model | N/A |
| Quantity | 1Piece |
| Color | Deep Blue |
| Material | Plastic + iron |
| Specification | |
| Chipset | MPU-6500 |
| English Manual / Spec | No |
