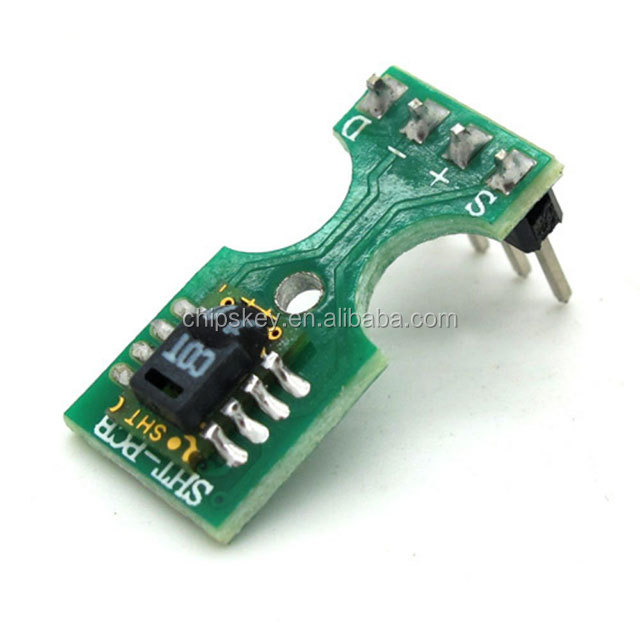

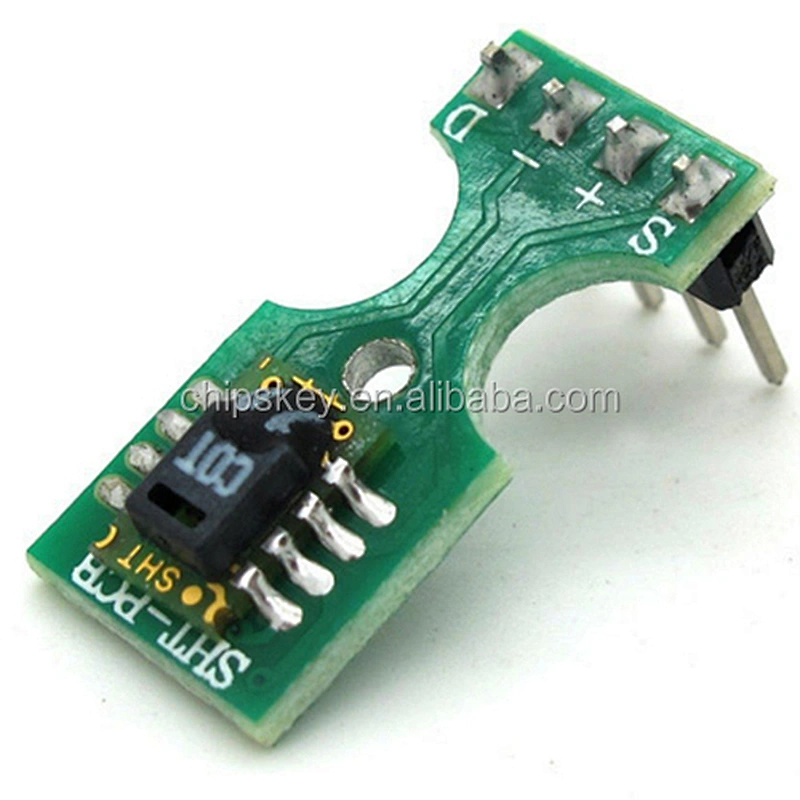

SHT10 Digital Temperature and Humidity Sensor with Developing Single Chip Microcomputer Function

• Model Number:13d051
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C
• Warranty:360days
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Supply Voltage:1.5V-6V

SHT10 Digital Temperature and Humidity Sensor with Developing Single Chip Microcomputer Function

This product is suitable for HVAC HVAC, test and inspection equipment, automotive, data loggers, consumer electronics, automatic control weather stations, home appliances, medical a humidistat, building control, environmental monitoring and other measurement occasions.

Measuring humidity range: 0 ~ 100% RH
Temperature range: -40 ~ 120 ℃
Response time: Humidity: 8s, temperature: <30s
Resolution: Humidity: 0.03% RH, temperature: 0.01 ℃
Repeatability: Humidity: 0.1% RH, temperature: 0.1 ℃
Accuracy: ± 4.5% RH, temperature accuracy: ± 0.5 ℃ (there are other precision optional)
Hysteresis: ± 1% RH
Long-term stability: <0.5% RH / year
Installation: 2.54mm pin
Dimensions: 20 * 10 * 4.3mm
