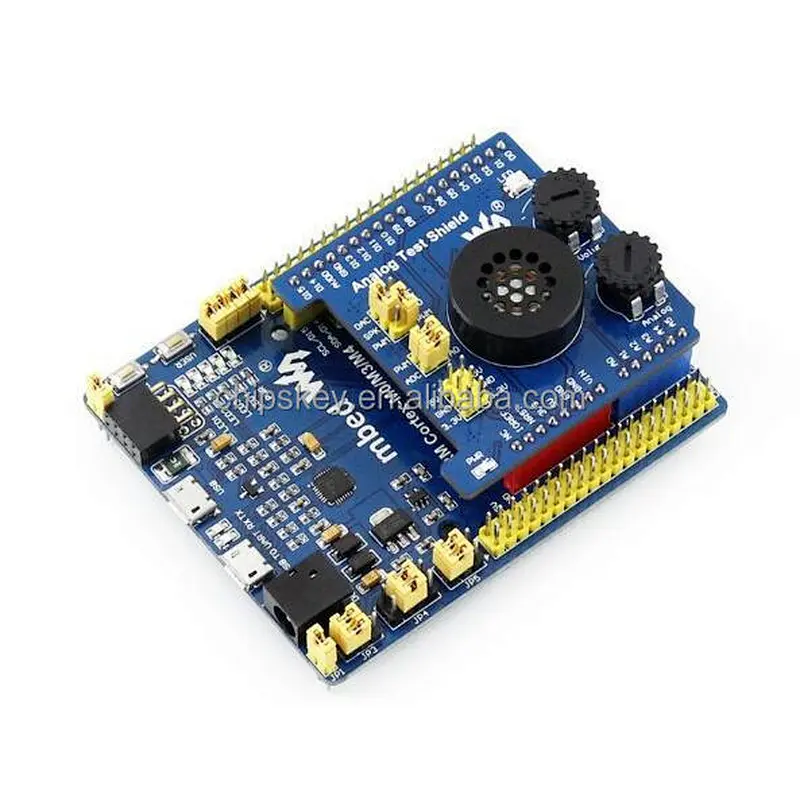

Analog Test Shield Adapter Expansion Developemnt Board Features AD Acquisition DA Output Compatible with Devel,Leonardo, NUCLEO,

Overview

Analog Test Shield is an Arduinos expansion board, provides functionalities of both AD acquisition and DA output. It's an easy way to know about the analog electronics.

Features

• Arduinos standard interfaces, compatible with Arduinos boards like Arduinos Development Board, Leonardo, NUCLEO, XNUCLEO
• Rotate the potentiometer to adjust AD sampling data
• Onboard 12bit DAC MCP4725, outputs required wave form
• Demonstrate the DAC/PWM effects via LED and buzzer

Package Contains

1. Analog Test Shield x 1
