- Place of Origin:Hainan, China, USA
- Brand Name:Chipskey
- Model Number:8074
- Category:Strain gauge pressure sensor
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Application:Watch
- Supply Voltage:1.5V-6V
Product Description
"Product Features

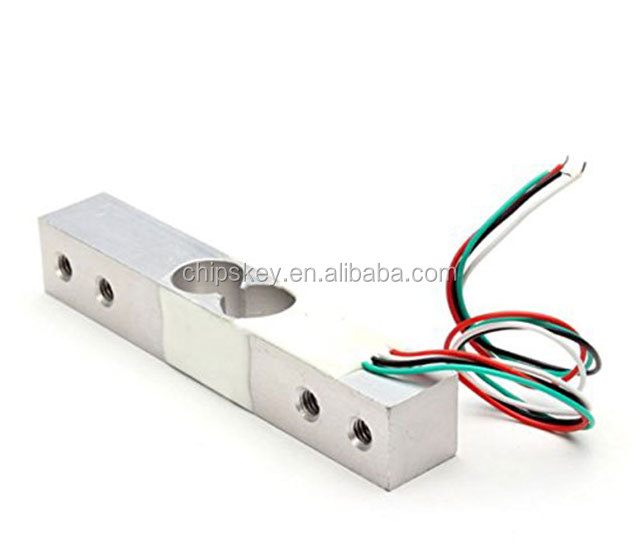

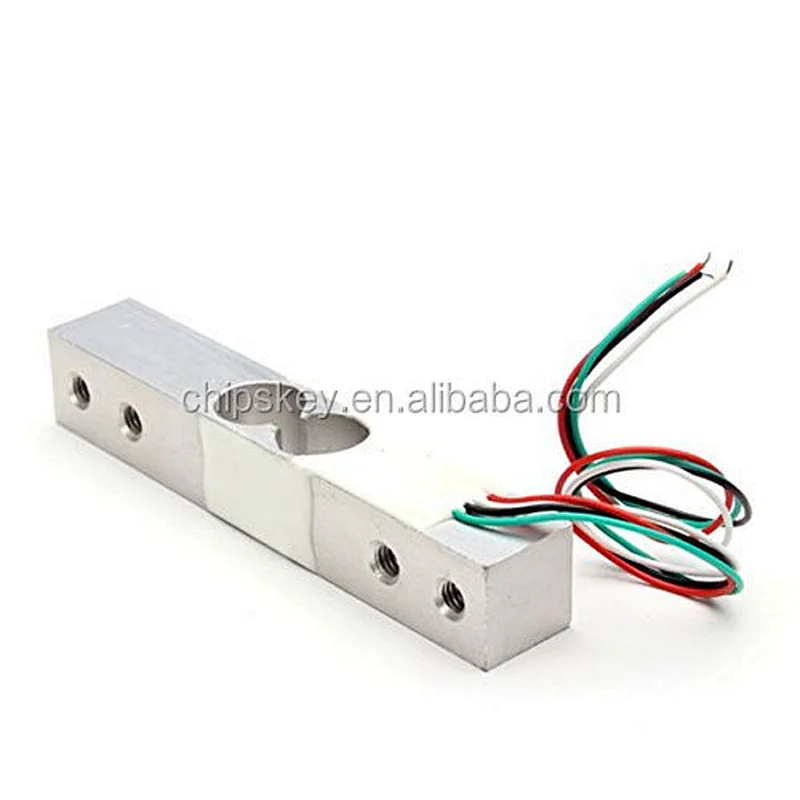

Rugged aluminum construction with strain relief pre-attached strain relief. Accurately measure 0-5 kg (0-11 lbs) of strength.

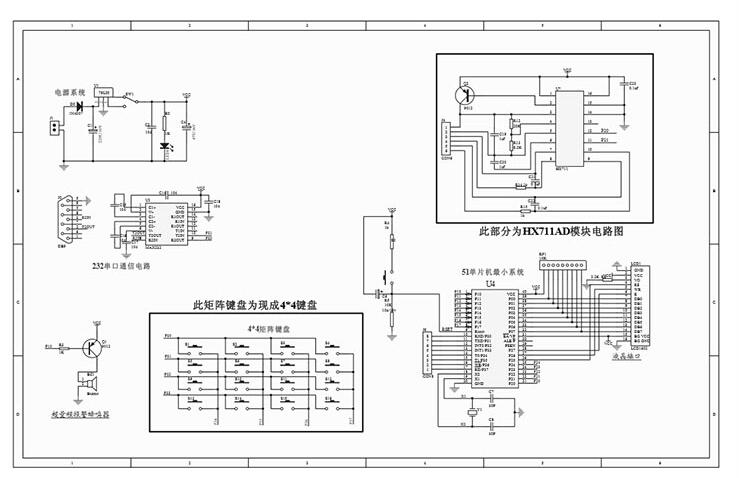

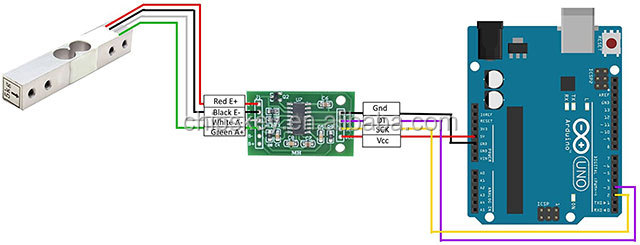

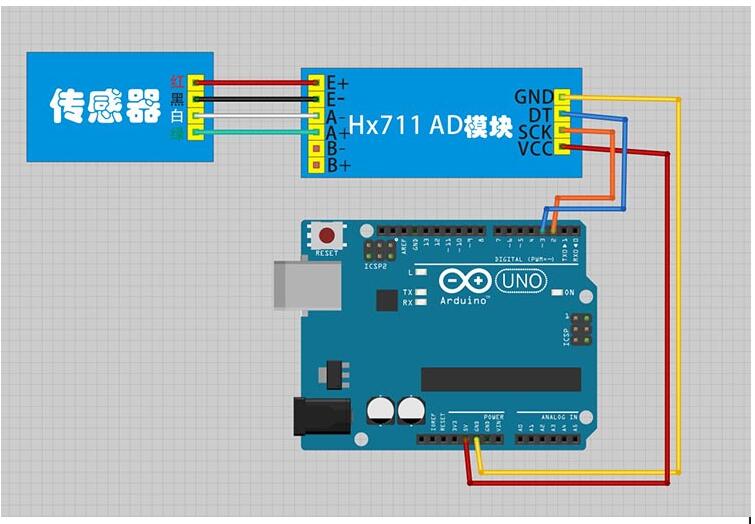

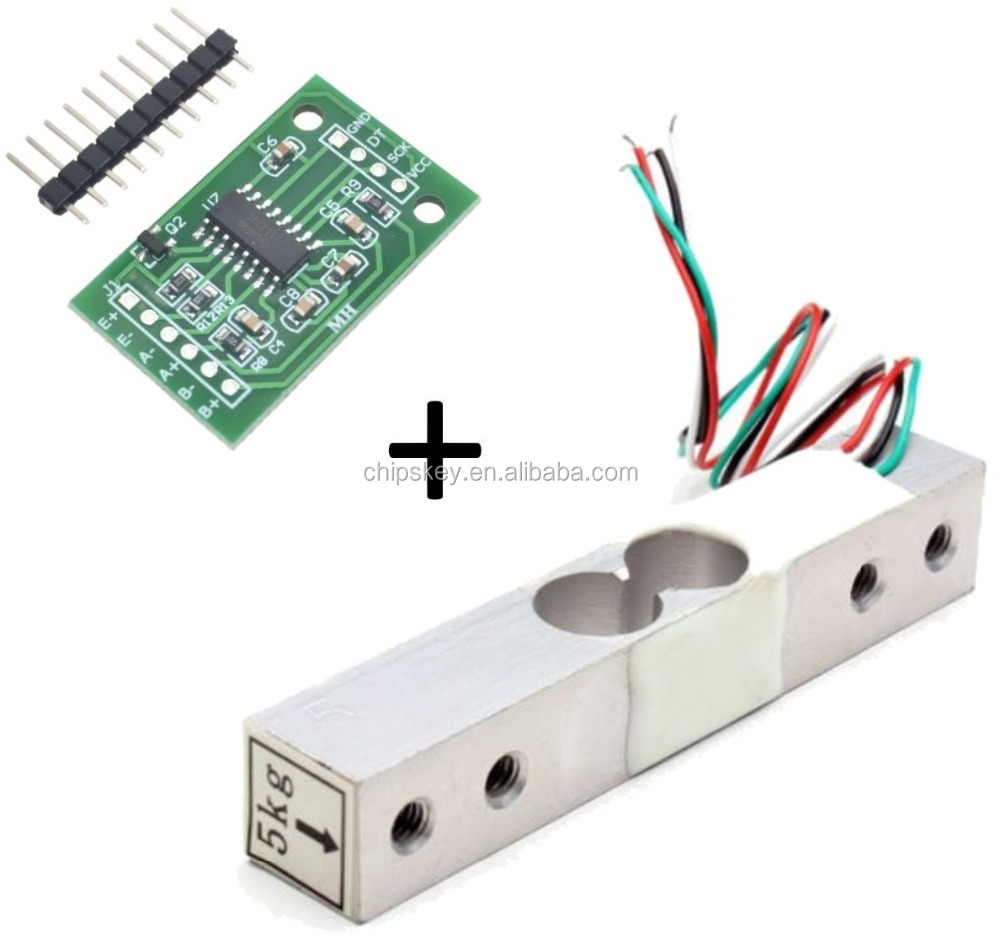

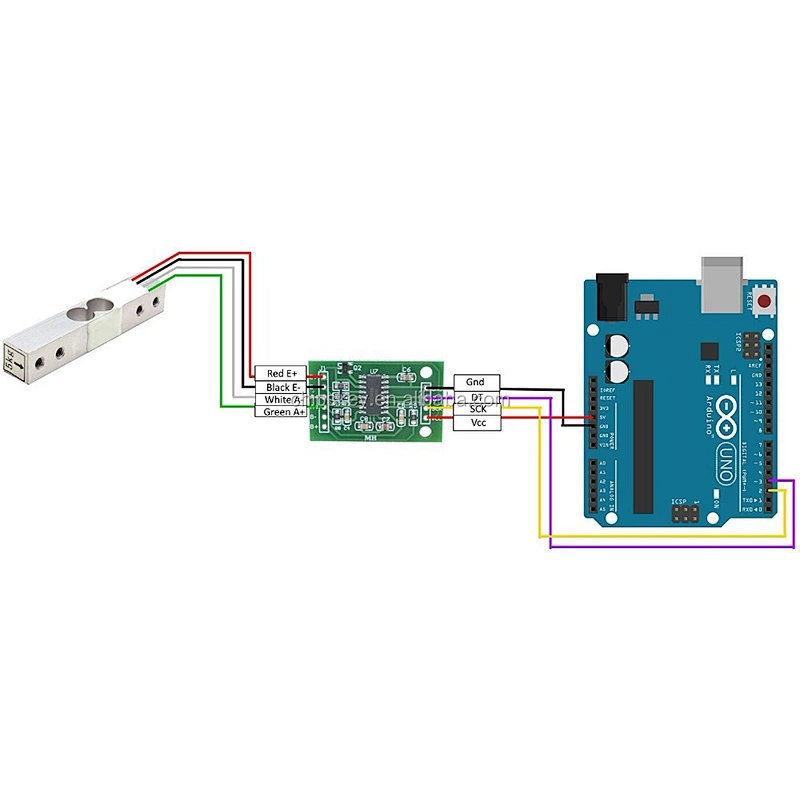

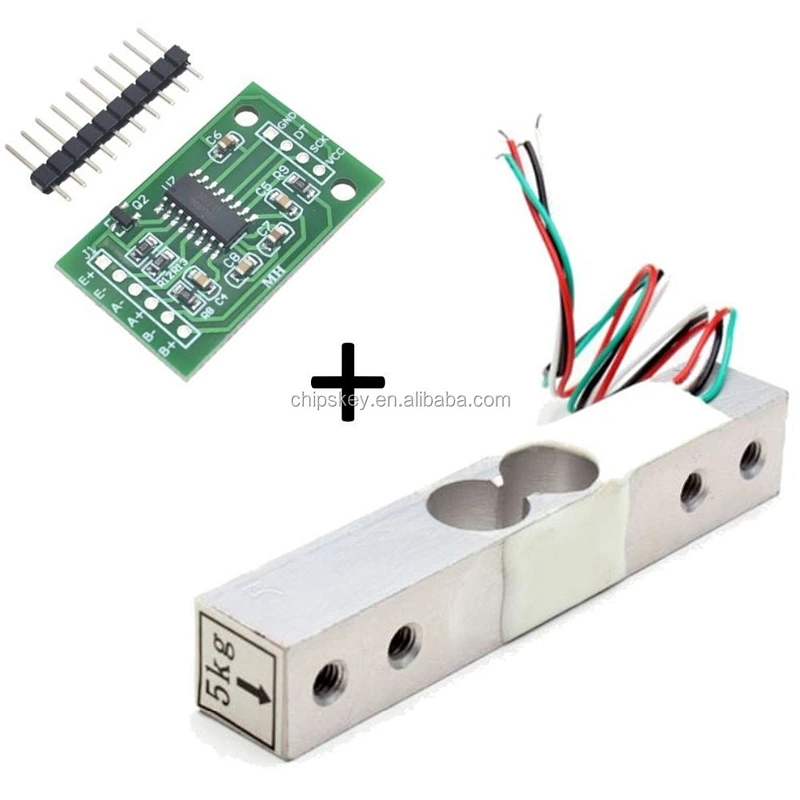

HX711 - The top of the line sensor amplifier mounted on the breakout board is paired perfectly with the load cell to provide fast, accurate force measurements. It measures small changes in the resistance of the strain gauges mounted on the load cell and passes these values directly to any microcontroller such as the or Raspberry Pi.

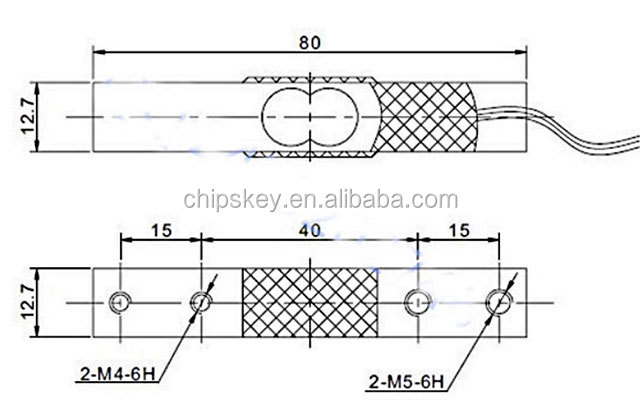

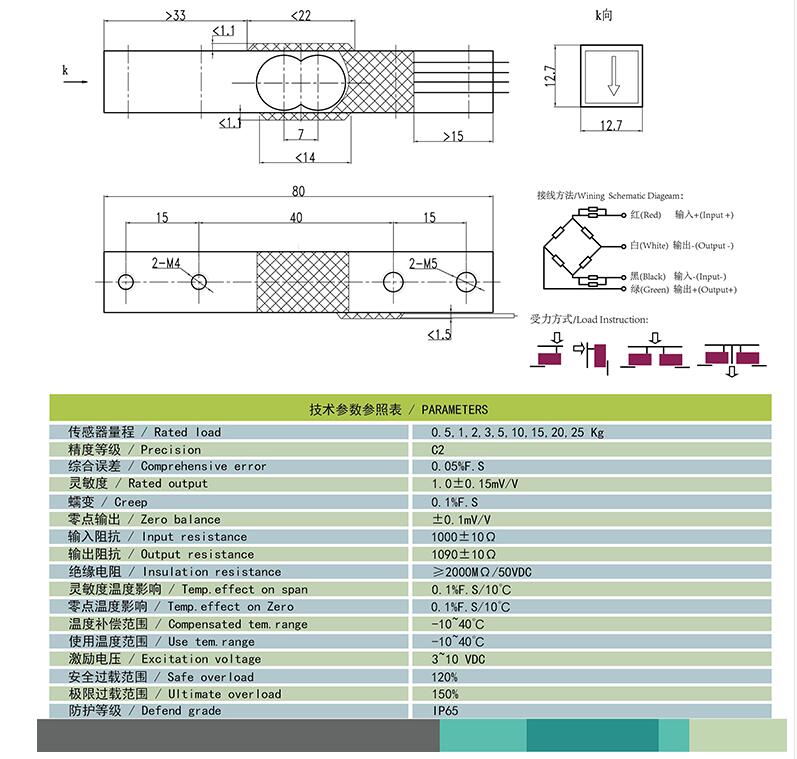

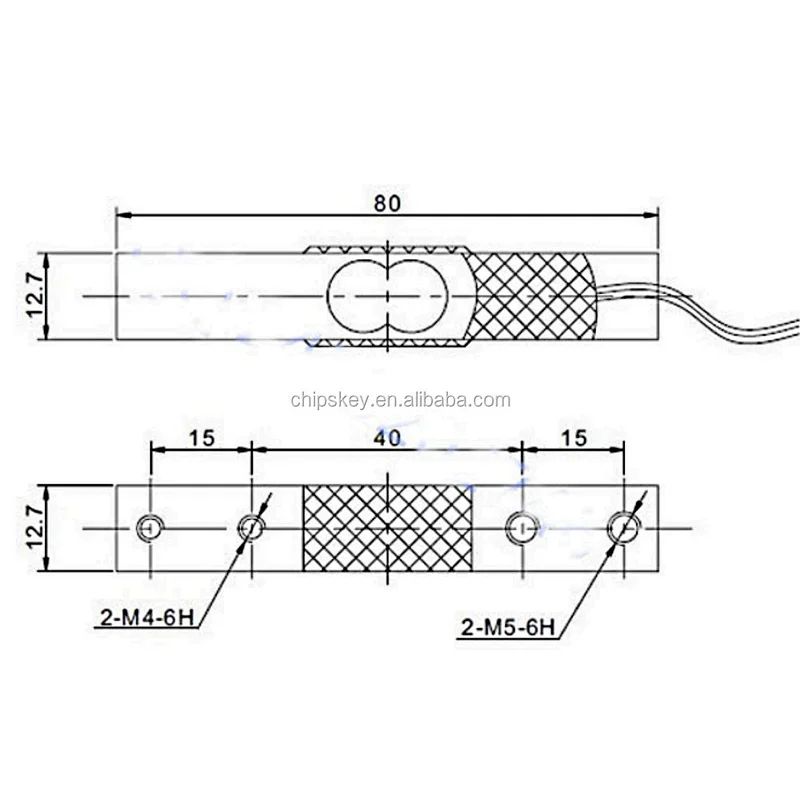

Load Battery Specifications - Pre-installed 22 cm (8.5 in) wire. The dimensions are 12.7 mm high, 12.7 mm wide and 80 mm long (0.5 inch x 0.5 inch x 3.15 inches). 4 mounting holes, 15mm apart on each side. One double tapping M4 thread and the other double tapping M5 thread.
Rugged aluminum construction with strain relief pre-attached strain relief. Accurately measure 0-5 kg (0-11 lbs) of strength.
HX711 - The top of the line sensor amplifier mounted on the breakout board is paired perfectly with the load cell to provide fast, accurate force measurements. It measures small changes in the resistance of the strain gauges mounted on the load cell and passes these values directly to any microcontroller such as the or Raspberry Pi.
Load Battery Specifications - Pre-installed 22 cm (8.5 in) wire. The dimensions are 12.7 mm high, 12.7 mm wide and 80 mm long (0.5 inch x 0.5 inch x 3.15 inches). 4 mounting holes, 15mm apart on each side. One double tapping M4 thread and the other double tapping M5 thread.
