10DOF IMU BMP180 HMC5883L MPU9255 Flight Control Sensor Module MWC 3-Axis Gyroscope 3-Axis Accelerometer 3-Axis Compass Barometr

• Model Number:16G073
• Type:Sensor Development Boards and Kits
• Place of Origin:China
• Certification 1:ROHS
• Certification 2:CE

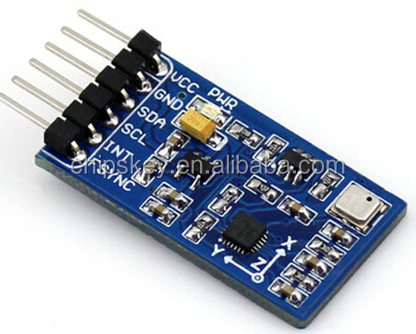

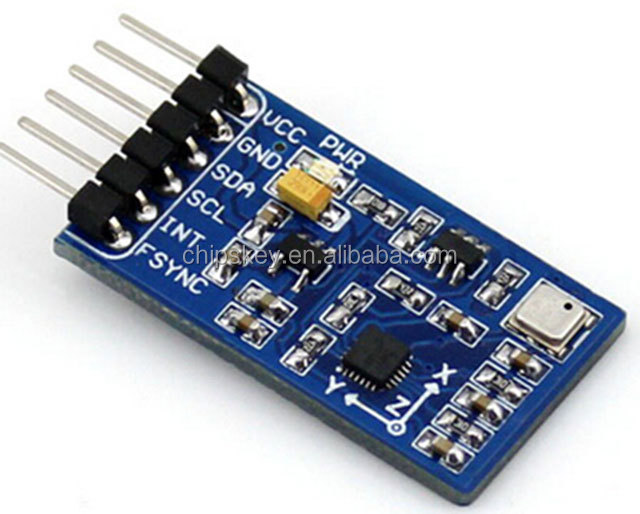

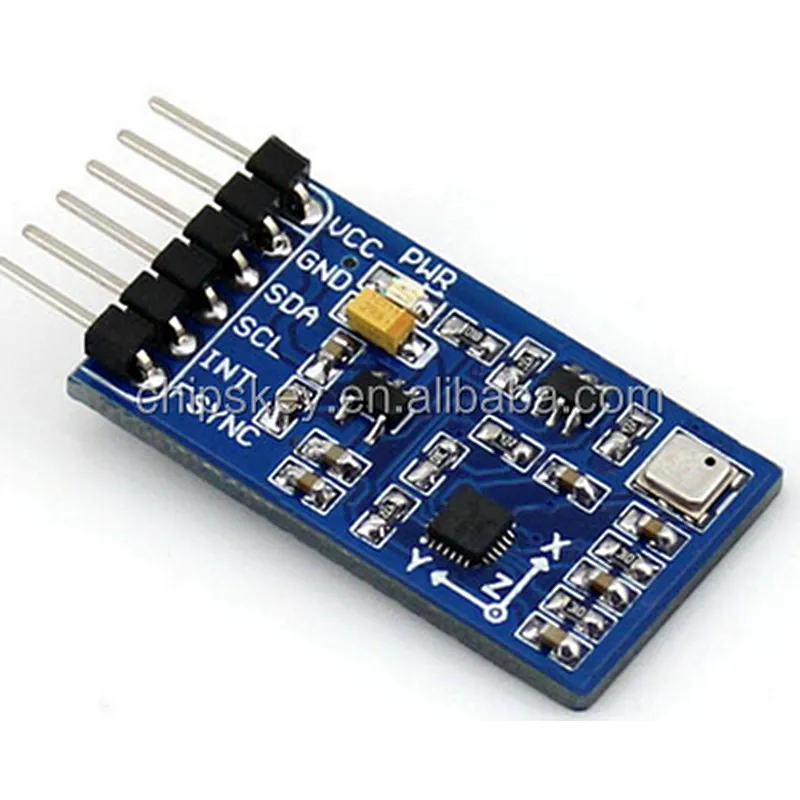

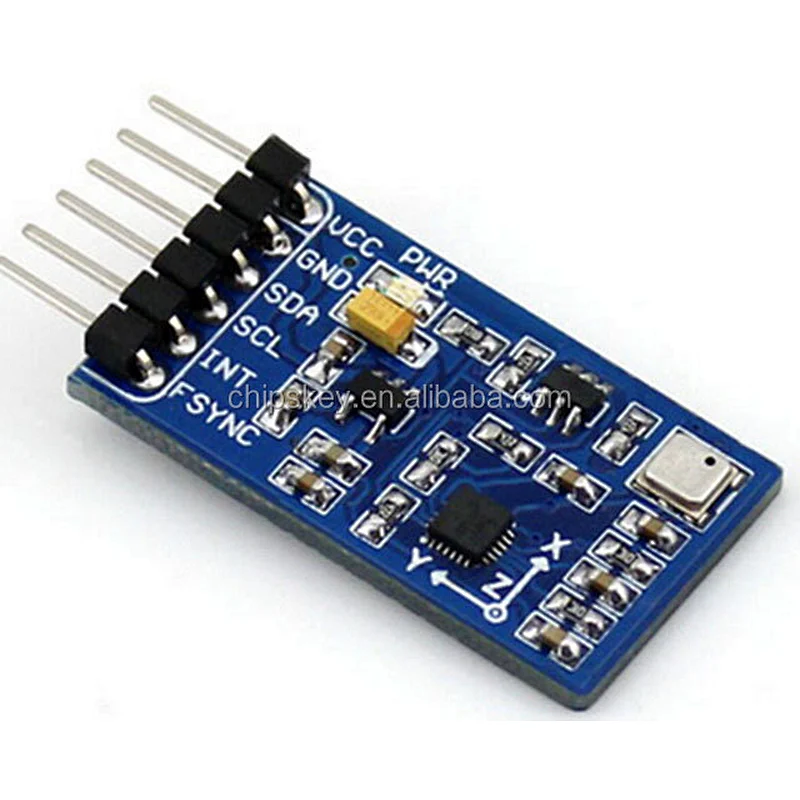

Onboard MPU9255 (3-axis accelerometer, 3-axis gyroscope and 3-axis magnetometer), built-in digital motion processing engine, can reduce the complexity of data fusion algorithms, reducing processor load
Compared to MPU6050, it has lower power consumption, more suitable for wearable device
Onboard BMP180 (barometric altimeter), built-in temperature sensor, temperature compensation
Will be able to get 10-axis data through I2C communication

[My arguments]
Power range: 3.3V ~ 5.5v (internal low dropout regulator)
Accelerometer features:

Resolution: 16
Range (optional): ± 2, ± 4, ± 8, ± 16g
Operating Current: 450uA
Gyro Features:
Resolution: 16
Range (optional): ± 250, ± 500, ± 1000, ± 2000 ° / sec
Working Current: 3.2mA
Magnetometer features:
Resolution (optional): 14 or 16
Range: ± 4800μT
Operating Current: 280uA
Barometric altimeter features:
Resolution (optional): 16 - 19
Range: 300 ~ 1100hPa (altitude: + 9000m ~ -500m)
Accuracy: 0.02hPa (0.17m)
