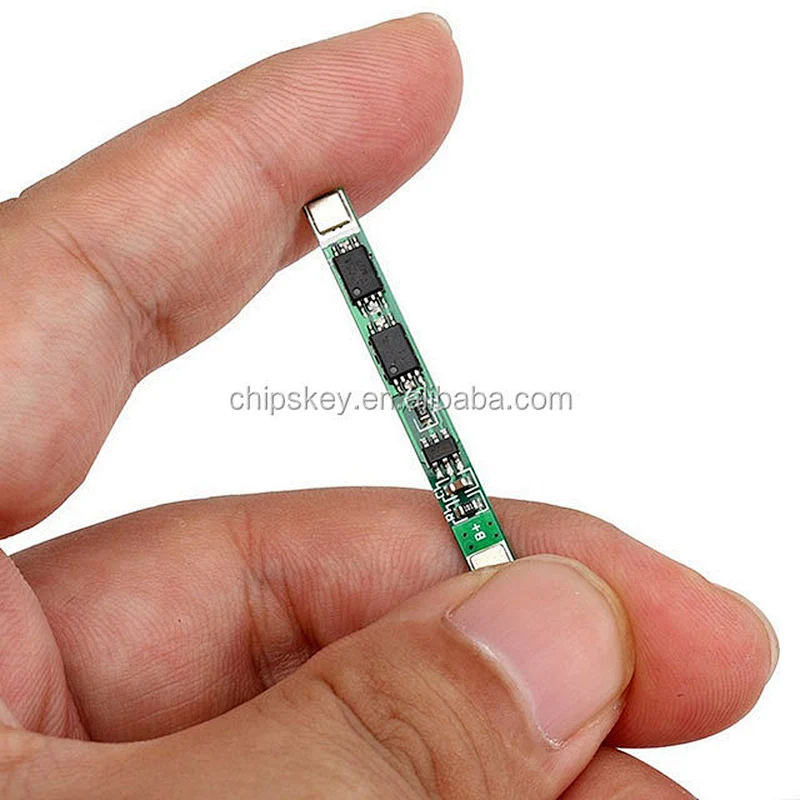

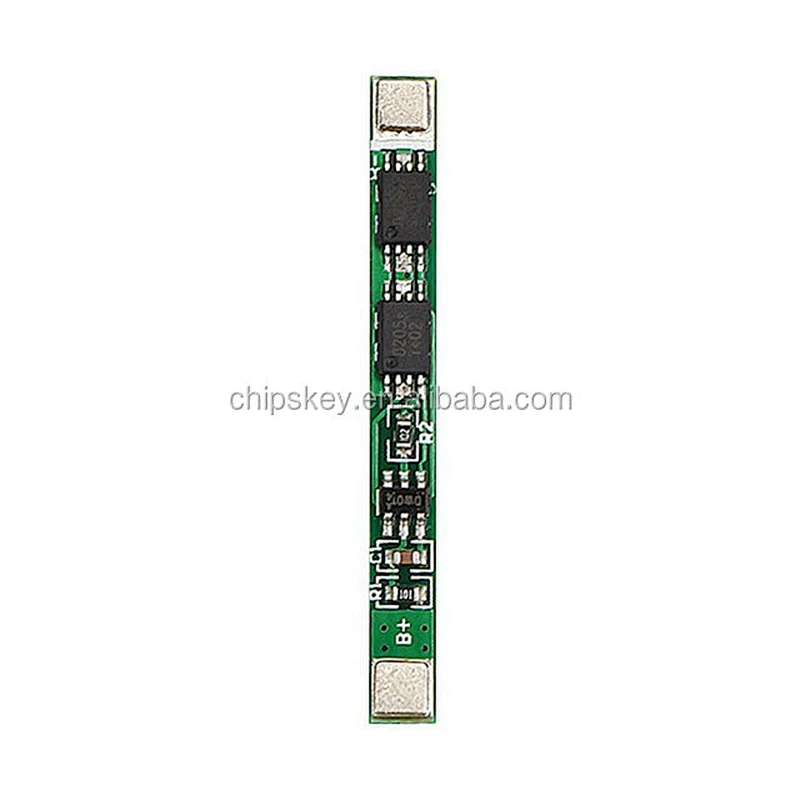

Double MSO Single 3.7V Shield Plate, with iron tablets can be welding, polymer lithium batteries 18650

• Model Number:26132
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Part number:26132
• Brand:chipskey

"Product description

Material: PCB board
Color: Green
Size: 3.8*0.4*0.2cm
Weight: 0.01kg
Technical parameter:
Over charge detection voltage: 4.25 + 0.05V
Over charge release voltage: 4.23 + 0.05V
Over discharge detection voltage: 2.54 + 0.1V
Overcurrent detection current: 5A
Main function:
Overcharge protection function, over discharge protection function, short circuit protection function, over current protection function
Wiring instructions:
B+ battery positive.
B- battery negative.
P+ is the positive input for the battery output
The P- outputs a negative electrode for the battery"
