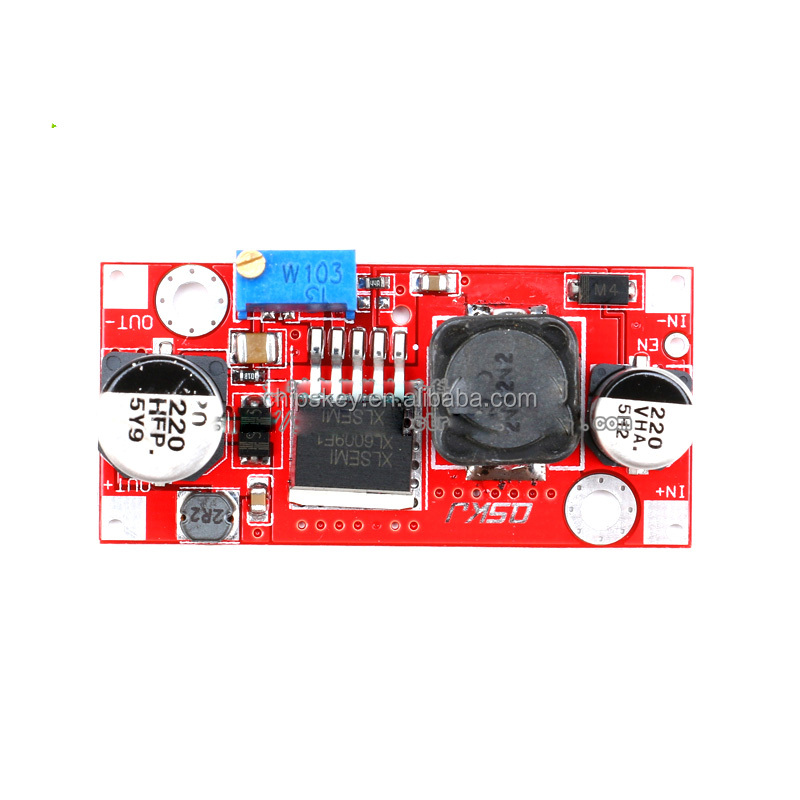

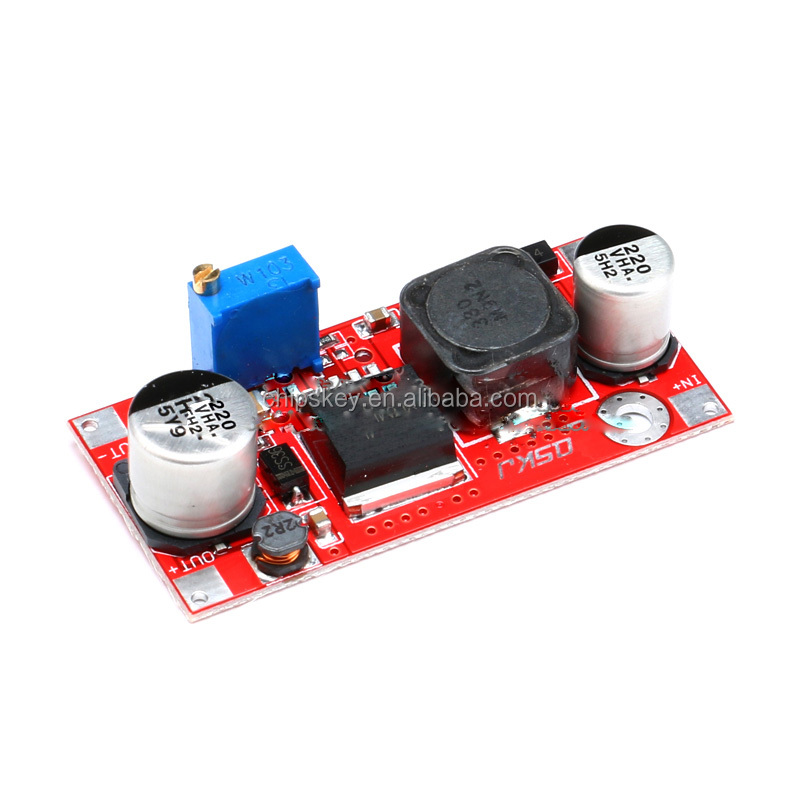

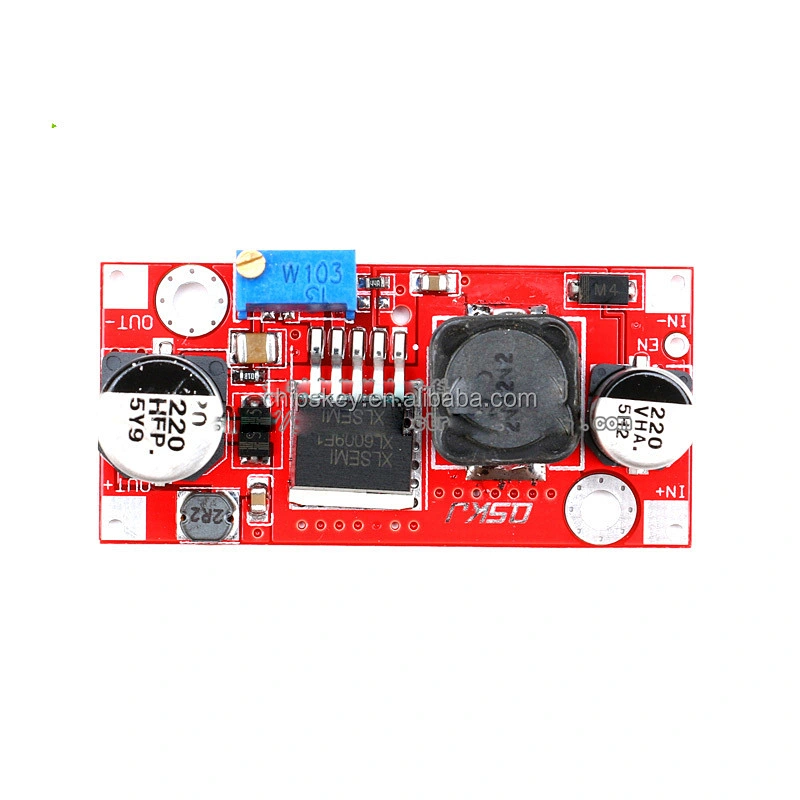

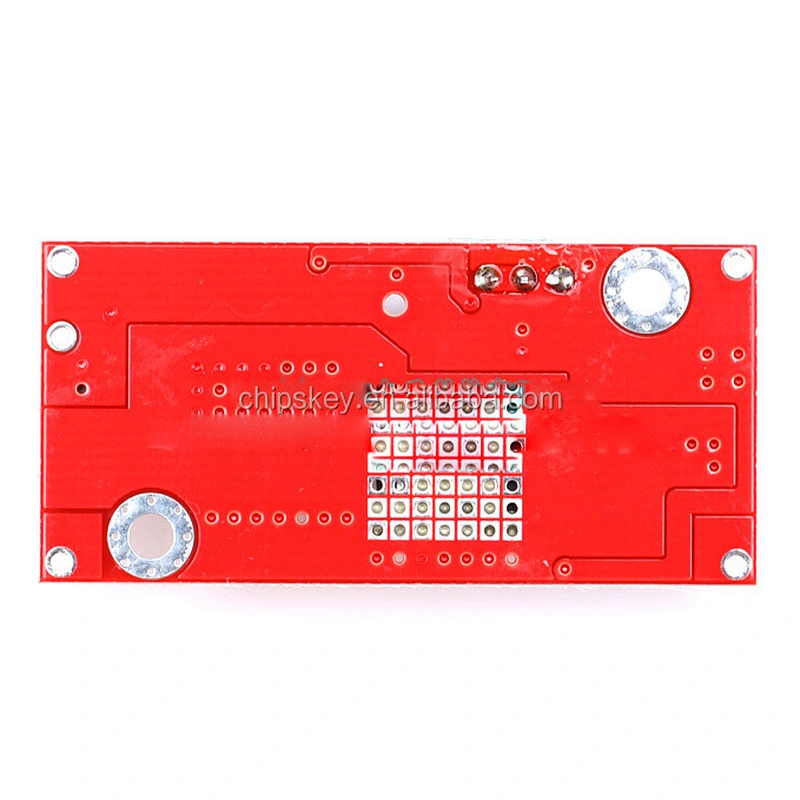

XL6009 DC-DC adjustable power supply boost module Ultra LM2577 high performance low ripple with enable

• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Model Number:5009
• Part number:5009
• Brand:Chipskey
• Category:Module

XL6009 DC-DC adjustable power supply boost module Ultra LM2577 high performance low ripple with enable

15W power module with enable port

Size: 49(length)*23.4(width)*11.4(height) mm (without potentiometer)

Module parameters

Module nature: non-isolated boost module (BOOST)
Input voltage: 5-32V
Output voltage: (1) Continuously adjustable (5-50V)
(2) Fixed output 5V
Output current: 2.5A (MAX)
Input current: 4A (MAX)
Output power: natural cooling 15W, plus heat sink 25W (MAX) actual power
Large output power = input voltage * 4A * conversion efficiency
Output ripple: input 12V output 24 0.5A ripple 30MV 20M bandwidth
Working temperature: (-40°C to +85°C) (The ambient temperature exceeds 40°C, please reduce the power to use, or strengthen the heat dissipation)
Full load temperature rise: 45℃
Working frequency: 400khz
No-load current: 5V to 12V 15mA, 8.4V to 12V 7mA, 12V to 24V 9mA, 12V to 36V 18mA, 24V to 48V 9mA, 24V to 36V 6mA.
Load regulation rate: ±0.5%
Voltage adjustment rate: ±0.5%
Dynamic response speed: 5% 200uS

Enable control port: Yes, the default high level is 1.4V-VIN (ON)

Short circuit protection: None (please install a fuse or protection circuit in the input)

Input reverse connection protection: none

Installation method: can be screwed (fixed hole 3 mm), 2 fixed holes

Wiring method: soldering, after adding pins, it can be soldered directly on the PCB
