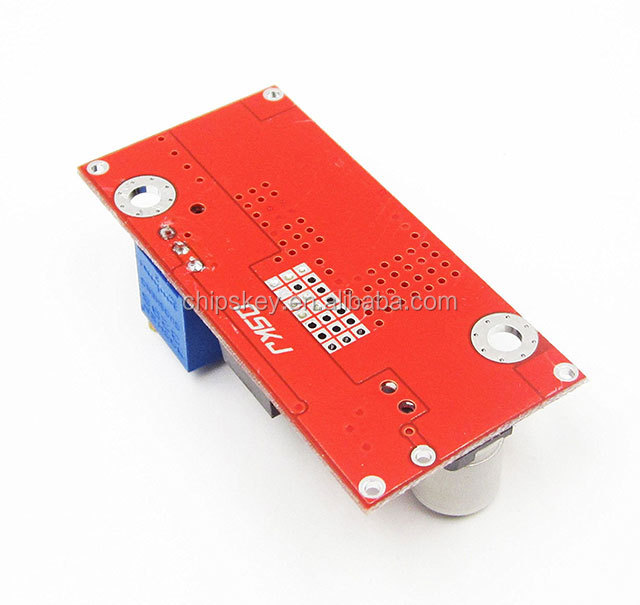

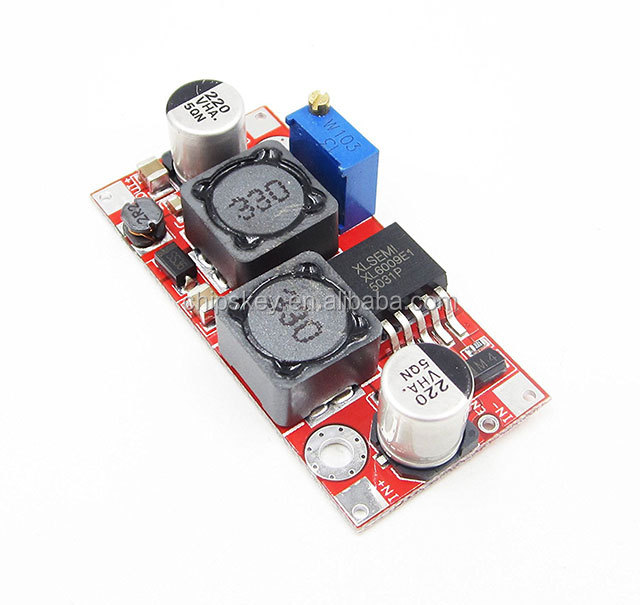

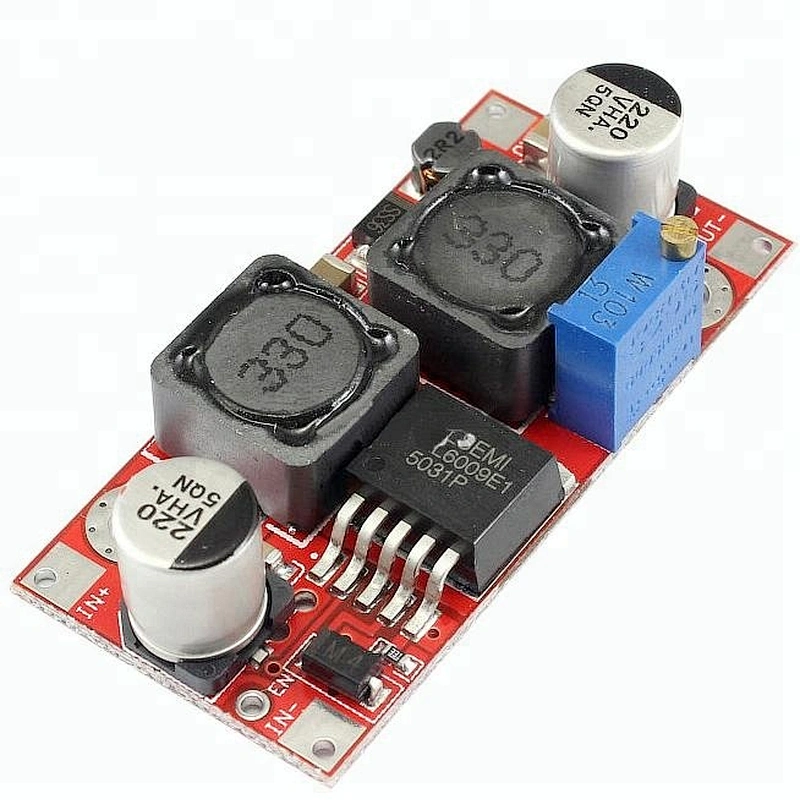

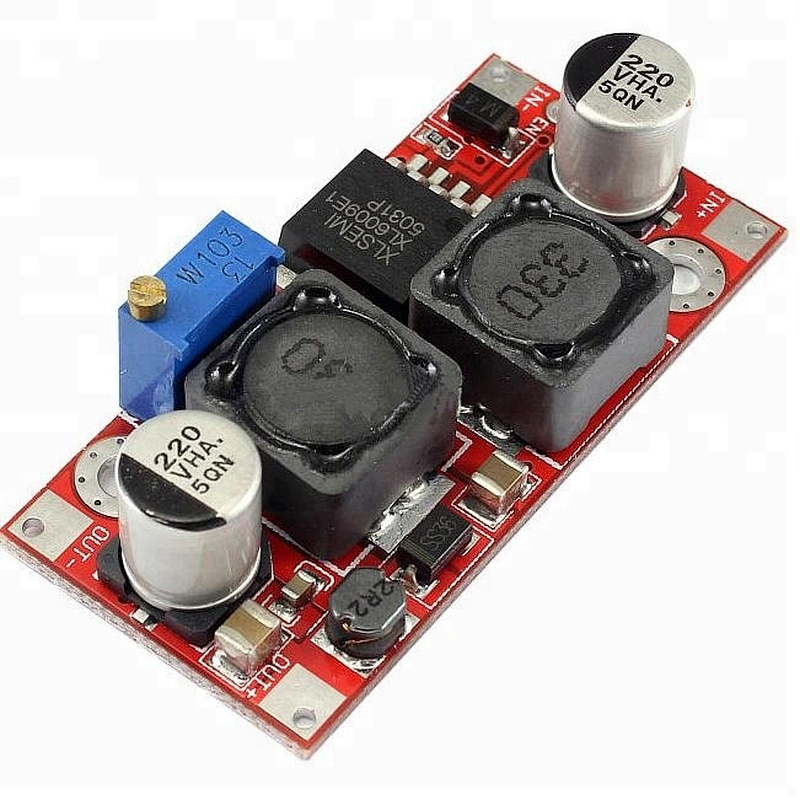

Boost Buck DC-DC Adjustable Step Up Down Converter XL6009 Power Supply Module 20W 5-32V to 1.2-35V High Performance Low Ripple

• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Model Number:28113
• SKU:28113
• Stock:In Stock ,Can Ship out Immedicate
• Delivery Time:24hours
• Quality:New&Original
• Application:Great for DIY project

Boost Buck DC-DC Adjustable Step Up Down Converter XL6009 Power Supply Module 20W 5-32V to 1.2-35V High Performance Low Ripple

Product description

Introduction

Up to 400Khz operating frequency, and LC filter circuit, output ripple is very low.

Input and output three MLCC Multilayer ceramic capacitors, interference enhance stability.

PCB use kb of A grade sheet material, to prevent cardboard, garbage plate.

Built-in MOSFET, the LM2577 built-triode say goodbye, can reach 94% efficiency.

Increased enable the port, you can control whether the boost circuit.

Dimensions: 49 (L) * 23.4 (W) * 11.4 (H) mm (excluding potentiometer)

Parameters

Maximum output power = input voltage conversion efficiency * 4A *conversion efficiency

Operating temperature: Industrial grade (-40 C to + 85 C) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)

Full load temperature rise: 45 C

Operating frequency: 400khz

Load current: 5V turn 12V 15mA

Load regulation: ± 0.5%

Voltage regulation: ± 0.5%

Dynamic response speed: 5% 200uS

Enable Control Port: Yes, high 1.4V-VIN (ON), low 0-0.8V (OFF), the default high

Short circuit protection: None (Please install fuse or protection circuit input)

Input reverse polarity protection: None, please with our reverse protection diode board or in the input series.

Installation: You can screw (Fixing holes 3 mm), 2 fixing holes
