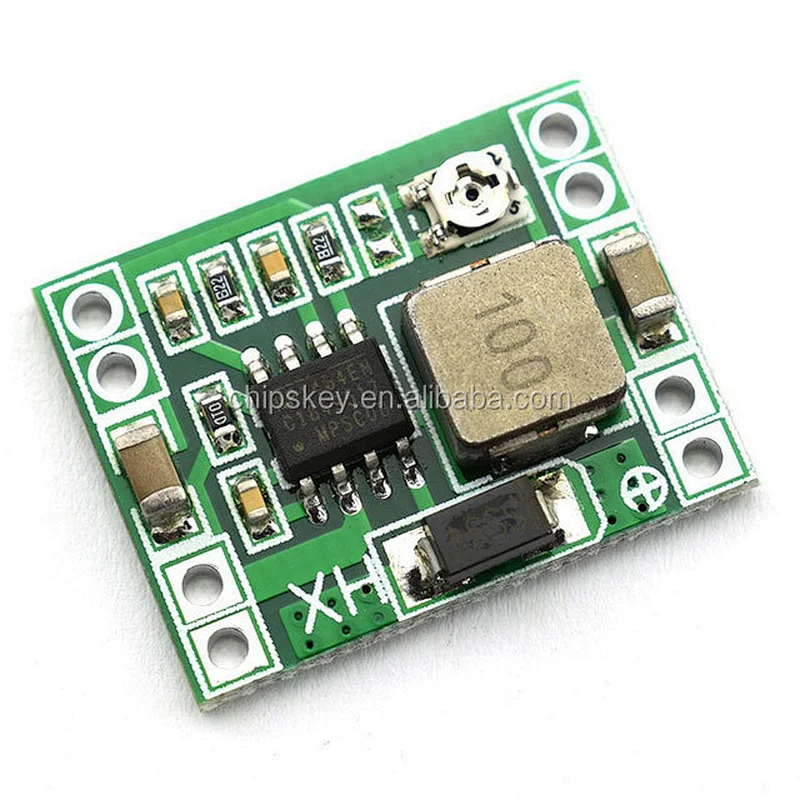

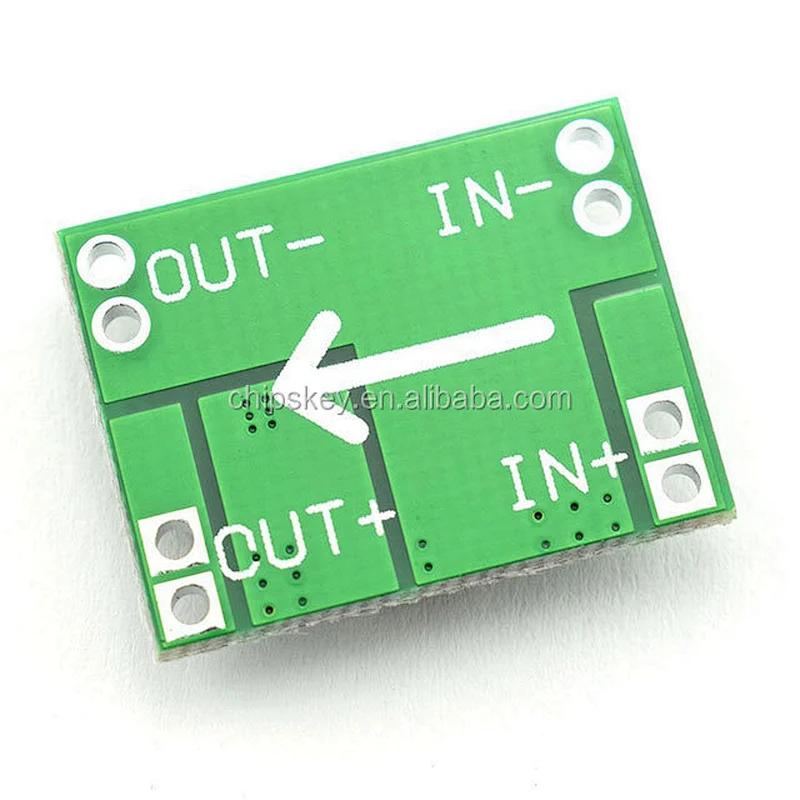

MP1484EN DC-DC Input voltage 4.75V-23V Output voltage 1.0V-17V peak output current 3A, long 1.8A. Dimensions 22.3MM*17.5MM*4MM

• Model Number:26133
• Type:Power Management Development Boards and Kits
• Place of Origin:China
• Part number:26133
• Brand:chipskey

"product description

Module Size: 22.3x17.5x4mm
Module Type: Non-isolated buck module
Rectifier: synchronous rectification
Input voltage: DC 4.75V-23V
Output voltage: DC 1.0V-17V
Output current: 3A (maximum), 1.8A long time work
Transmission efficiency: 96% (MAX)
Output ripple: less than 30mV
Switching frequency: 340KHZ
Load Regulation: +/- 0.5%
Voltage Regulation: +/- 2.5%
Operating temperature: -45 degrees to +85 degrees

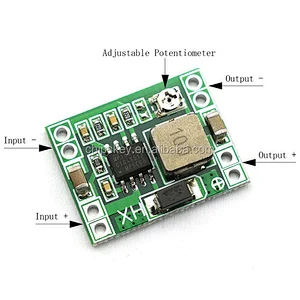

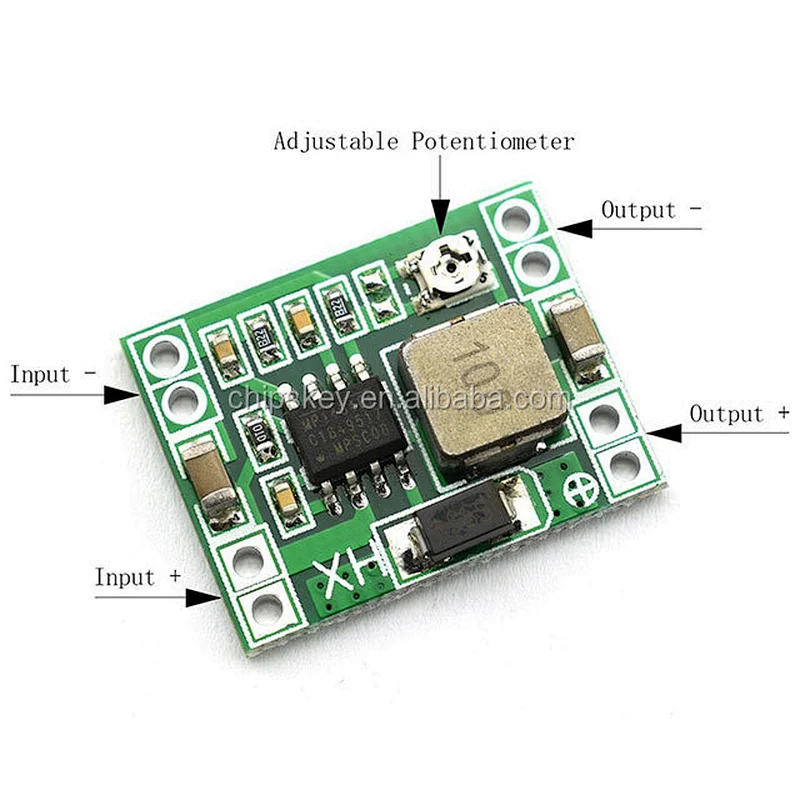

You can put a multimeter synchronization control voltage at the output, adjust the potentiometer with a screwdriver, you can get accurate voltage through fine tuning.
application:
DC-DC step-down module (supports 2S-5S polymer lithium battery), aviation model power supply, DIY portable power supply, display power supply, car power supply, camera power supply, vehicle power supply, communication equipment power supply and other various requirements of high volume and weight
