- Place of Origin:Guangdong, China, CN
- Brand Name:Chipskey
- Model Number:11B165
- Category:IC
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Maximum Operating Temperature:-40C ~ 125C
"product description
color: blue
Input voltage: DC 3.5V-30V (use please keep the margin, otherwise the instrument will burn out)
Output voltage: DC 3.5V-30V (boost module; ensure input voltage
Maximum input current: 10A (peak)
Output Power: 100W max (U-in * I-in * Efficiency = U-out * I-out)
Voltmeter accuracy: +/- (0.5% + 1 bit)
Static power consumption: generally around 15ma

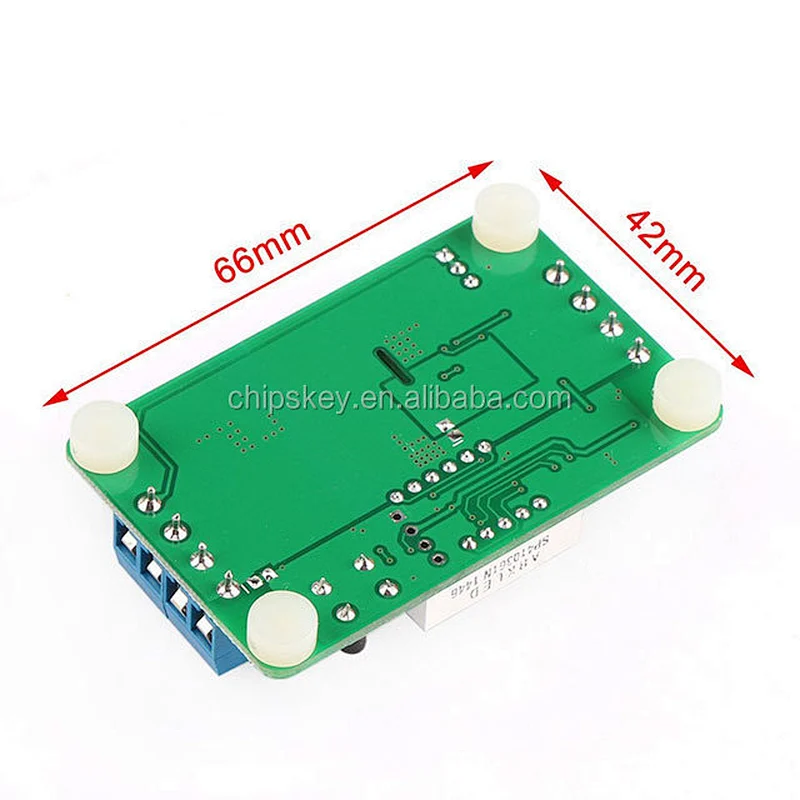

Size: 67x42x18 mm (L * W * H)
LED indicator: yes
Anti-reverse protection: Yes
Operating mode:
Output Voltage Mode: The LED is off when in output voltage mode (default).
Input voltage mode: press the button to switch to input voltage mode, the LED indicator light.
Alternate mode: Press the button again, followed by input / output voltage display, each lap continued for 3 seconds (press again to return to the output voltage display mode)

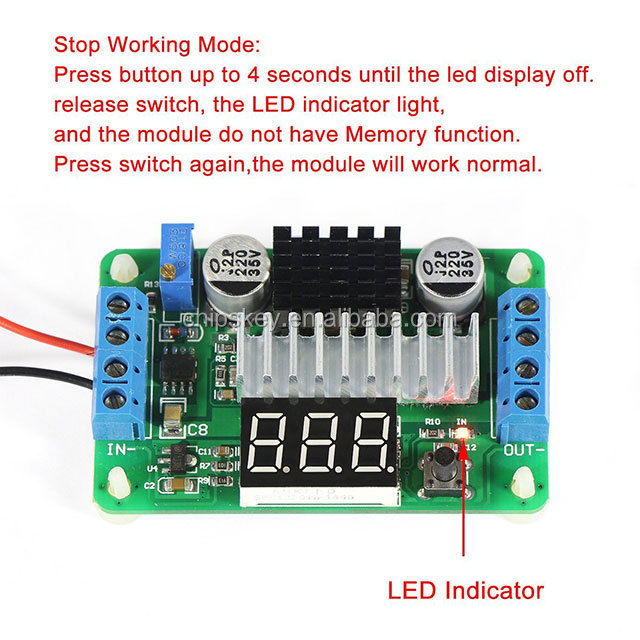

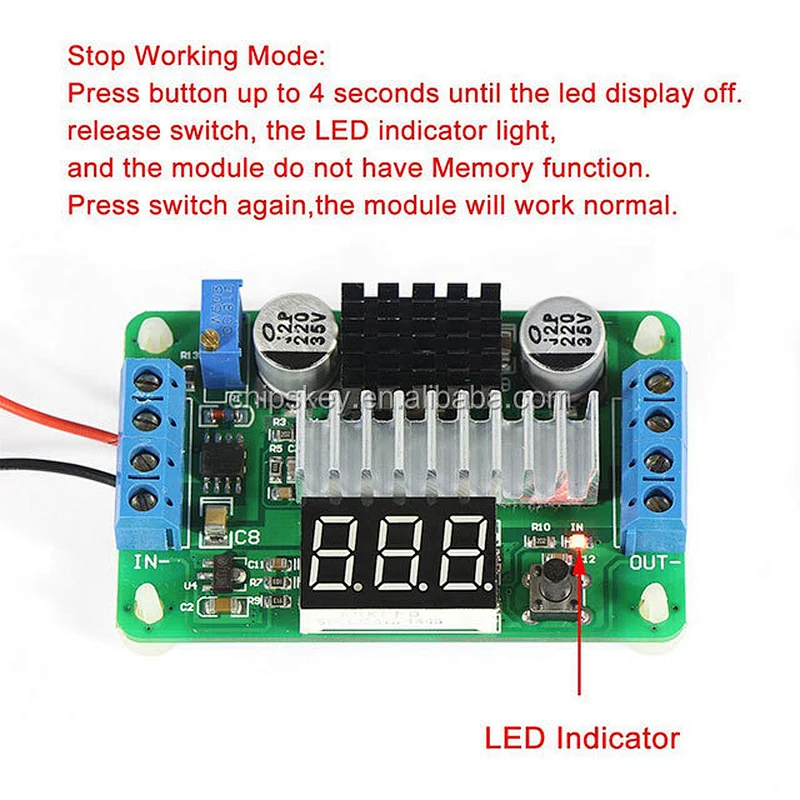

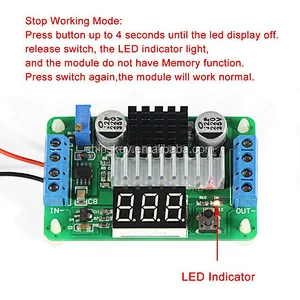

Stop working mode:
Press the button for up to 4 seconds until the LED indicator turns off, then release the button and the LED indicator lights up. At this time the module has no memory function. Press the button again, the LED voltmeter will work normally.

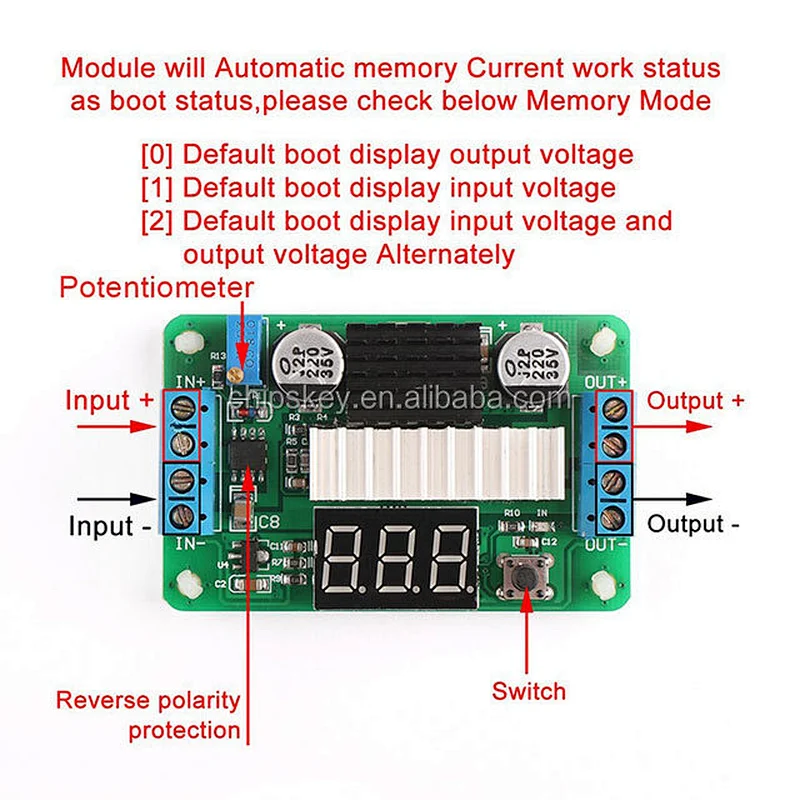

If you press and hold the key for 2 ~ 4 seconds, the module will automatically remember the current working status as the boot status, please check the following storage mode:
[0] Power-on default output voltage display [1] Default input voltage display at power-on [2] Default input / output voltage alternates with
