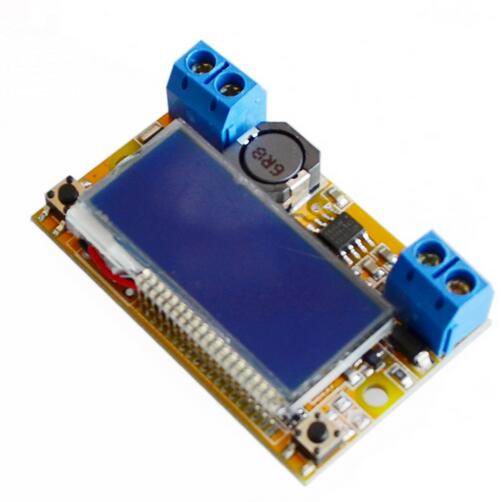

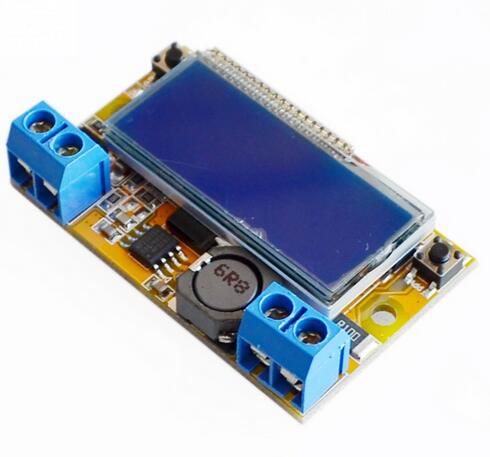

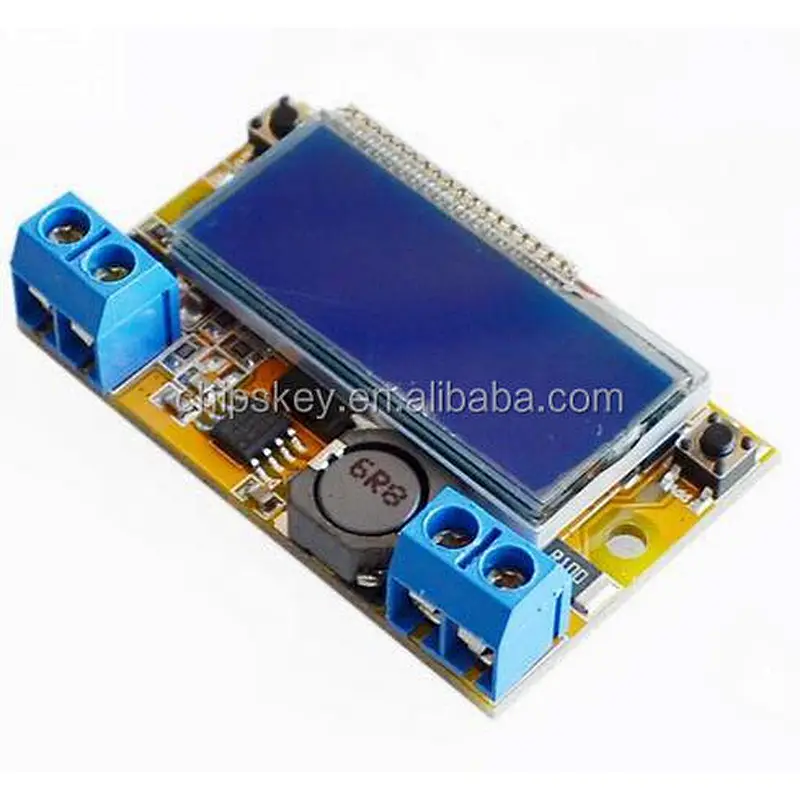

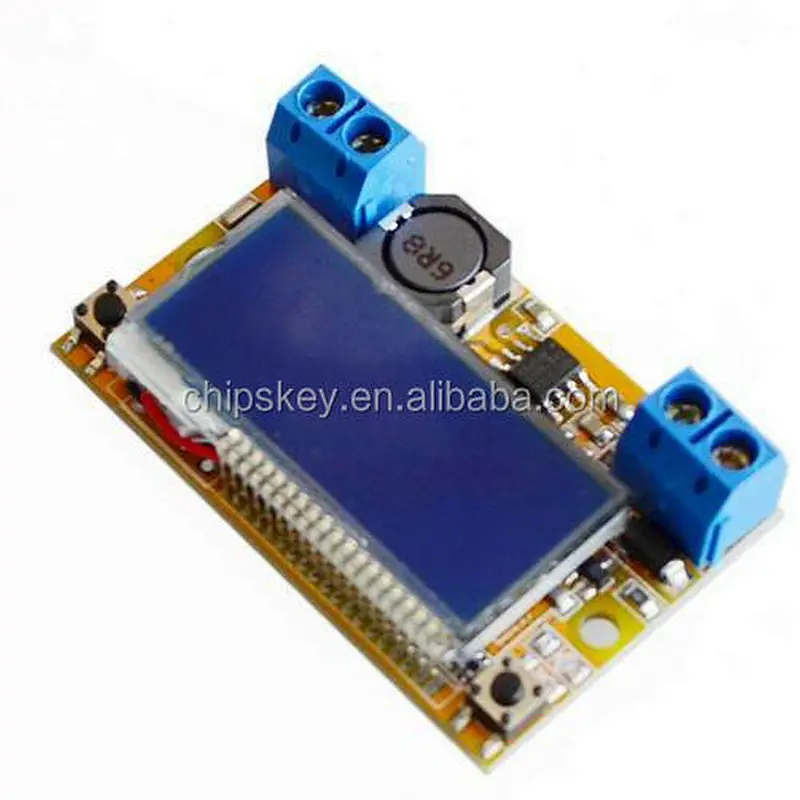

Adjustable DC DC Buck Converter Voltage Regulator Step Down Power Supply Ammeter Voltmeter Volt Amp DC5-23V to 0-16.5V 5V 20V

• Model Number:29104
• Type:Power Management Development Boards and Kits
• Place of Origin:China
• SKU:29104
• Brand:Chipskey

Adjustable DC DC Buck Converter Voltage Regulator Step Down Power Supply Ammeter Voltmeter Volt Amp DC5-23V to 0-16.5V 5V 20V 23

Module performance and features:
  With a terminal block, no soldering iron can also be used easily
  Input voltage: 5 ~ 23V, up to 23V, it is recommended to use within 20V, input anti-reverse. (The input voltage must be higher than the output voltage 1V or more)
  Adjustable output voltage range 0V ~ 16.5V continuously adjustable, automatically save the last set voltage.
  Peak current 3A, recommended for use within 2A. Accuracy of 1%, the minimum display 0.01, the unit is A, more than 2A fever, please think of ways to solve the heat problem.
  Conversion efficiency, up to 95% (efficiency and input, output voltage, current, pressure related)
  Load regulation rate S (I) ≤ 0.8%, voltage regulation rate S (u) ≤ 0.8%
  Size 62mm * 44mm * 18mm
  Weight 45g
