PIC MCU Minimum System Development Board Universal Programming KIT2 KIT3 ICD2

• Model Number:29080
• Type:Other, Drive IC
• Place of Origin:China, USA
• SKU:29080
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C
• Warranty:360days
• Dissipation Power:1W-6W
• Application:Watch
• Supply Voltage:1.5V-6V

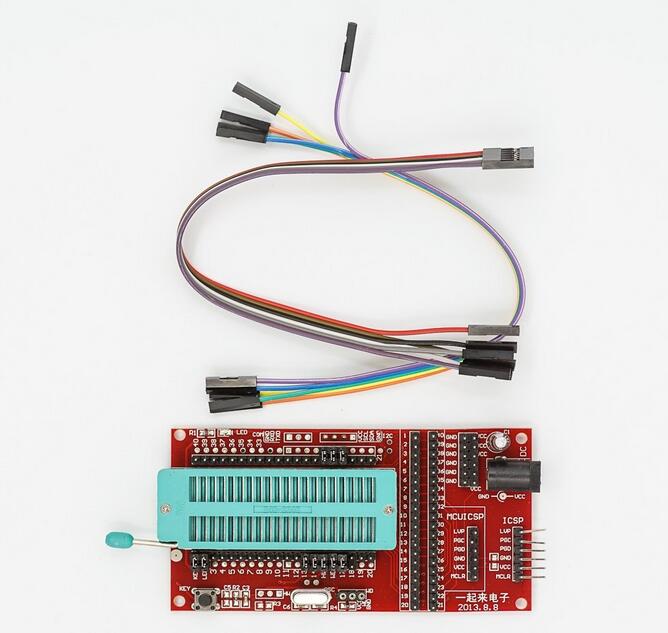

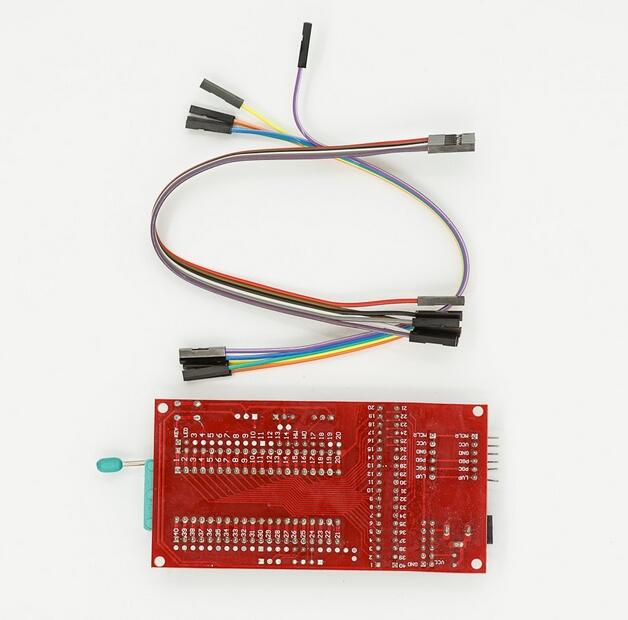

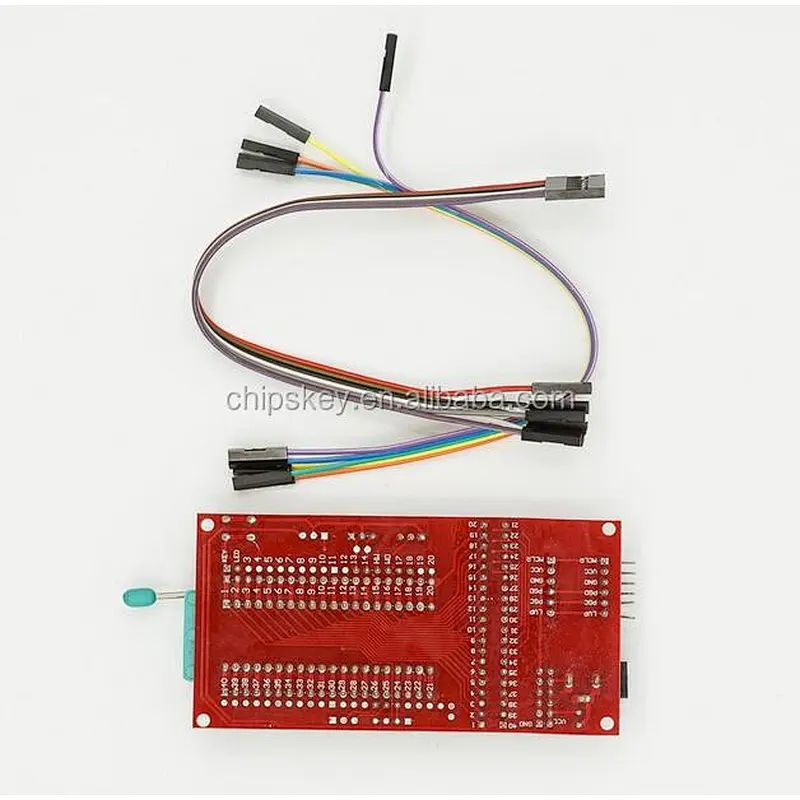

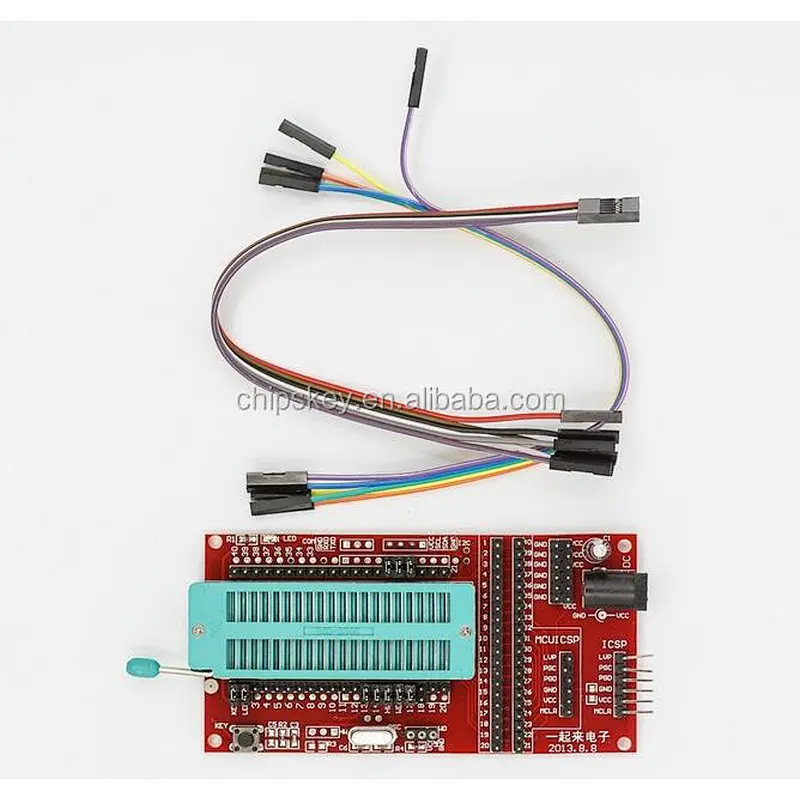

PIC MCU Minimum System Development Board Universal Programming KIT2 KIT3 ICD2

1, LED, can be connected to any I/O;
2, easy to change the crystal interface, can connect to any pin, meet all IC.
3, a button (to do the reset button).
4, all I/O external expansion;
5, auxiliary power expansion port;
6, SIP6 online download / online debug interface;
7, DC power interface.
8, single wire 18B20 temperature detection interface;
9, infrared receiver head interface;
10, COM port lead (based on PIC16F877A);
11, I2C interface (based on PIC16F877A).
With DC interface, all I/O external expansion, reset, 5V power supply. Equipped with 12M David crystal.
