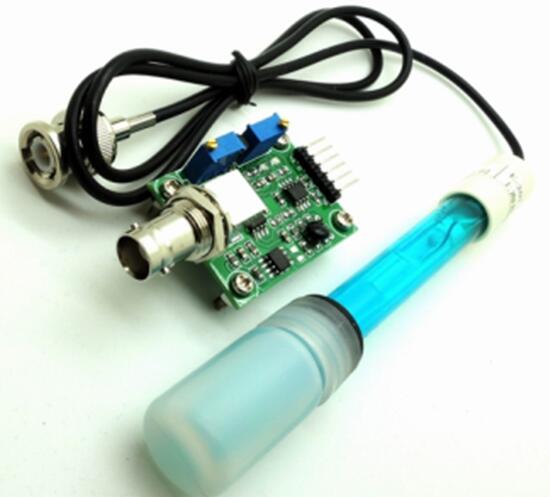

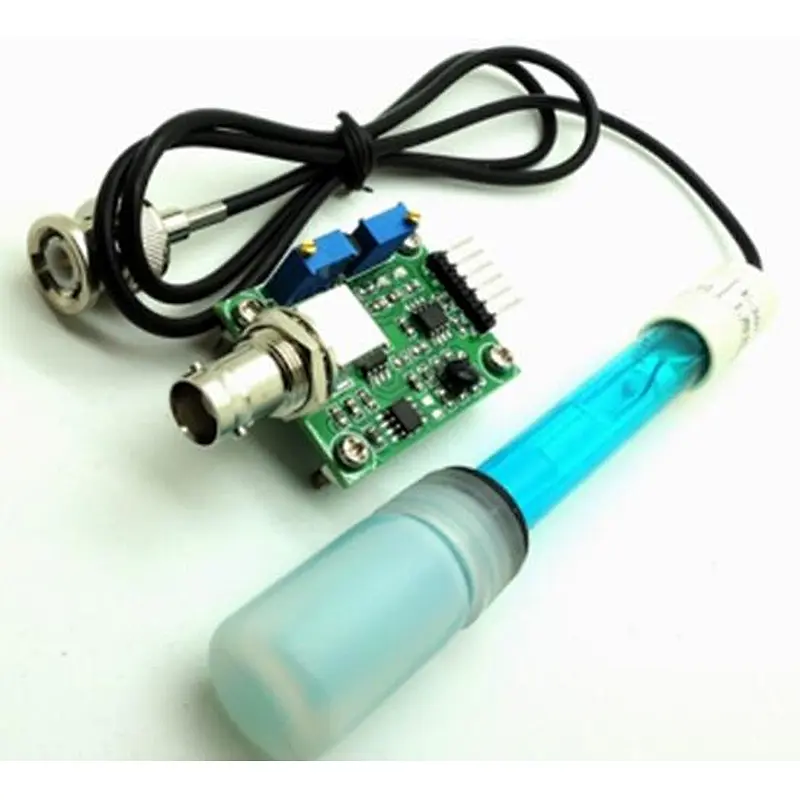

PH Sensor For Arduinos

• Place of Origin:Guangdong, China, Italy
• Brand Name:Chipskey
• Model Number:10a066
• Category:Module
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Brand New With Original Manufacturer
• Maximum Operating Temperature:-40C ~ 125C
• Warranty:360days
• Operating Temperature:-40C ~ 125C
• Dissipation Power:1W-6W
• Application:Watch
• Supply Voltage:1.5V-6V

"
Product features
Module Power : 5.00V
Measuring Range :0-14PH
Measuring Temperature :0-60 ℃
Accuracy : ± 0.1pH (25 ℃)
Response Time : ≤ 1min
Product description
Introduction

Need to measure water quality and other parameters but haven't got any low cost pH meter? Find it difficult to use  Here comes an analog pH meter, specially designed for controllers and has built-in simple, convenient and practical connection and features. It has an LED which works as the Power Indicator, a BNC connector and PH2.0 sensor interface. To use it, just connect the pH sensor with BND connector, and plug the PH2.0 interface into the analog input port of any  controller. If pre-programmed, you will get the pH value easily. Comes in compact plastic box with foams for better mobile storage.
Applications

Water quality testing

Aquaculture

Specification

Module Power : 5.00V

Module Size : 43mmx32mm

Measuring Range :0-14PH

Measuring Temperature :0-60 ℃

Accuracy : ± 0.1pH (25 ℃)

Response Time : ≤ 1min

pH Sensor with BNC Connector

pH2.0 Interface (3 foot patch)

Gain Adjustment Potentiometer

Power Indicator LED

Shipping List

pH sensor (BNC connector) ×1

pH sensor circuit board ×1

Analog cable ×1

Documents

Wiki Doc

Schematic

PCB layout

PH composite electrode manual

Zips for all above"
