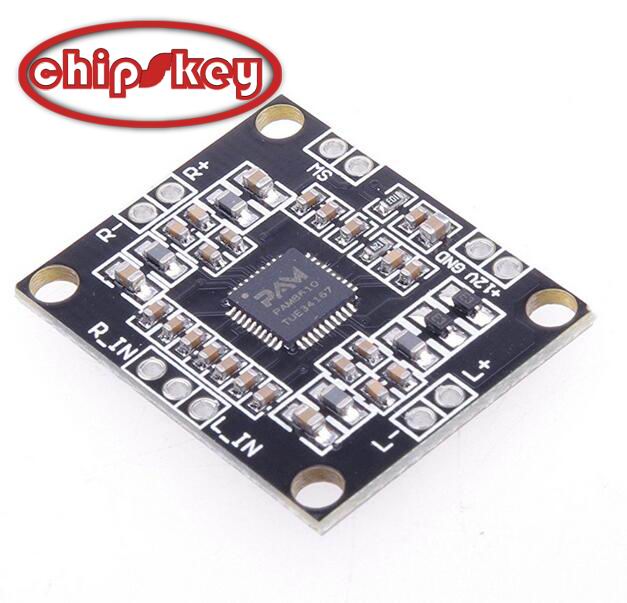

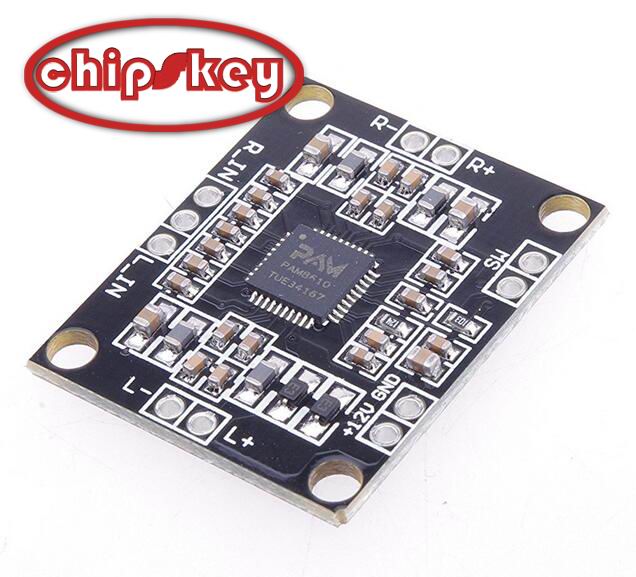

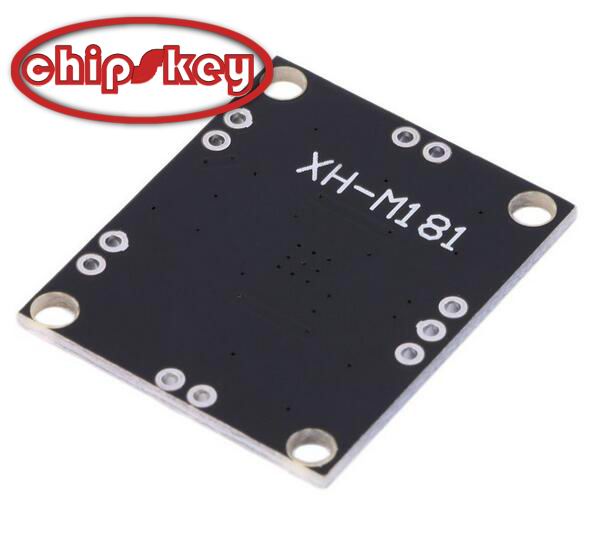

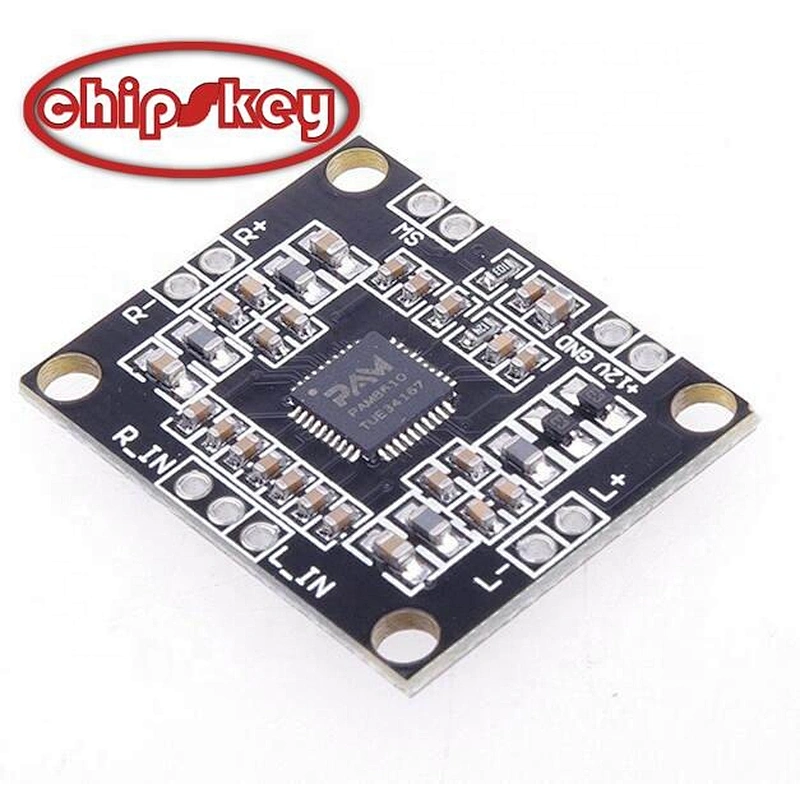

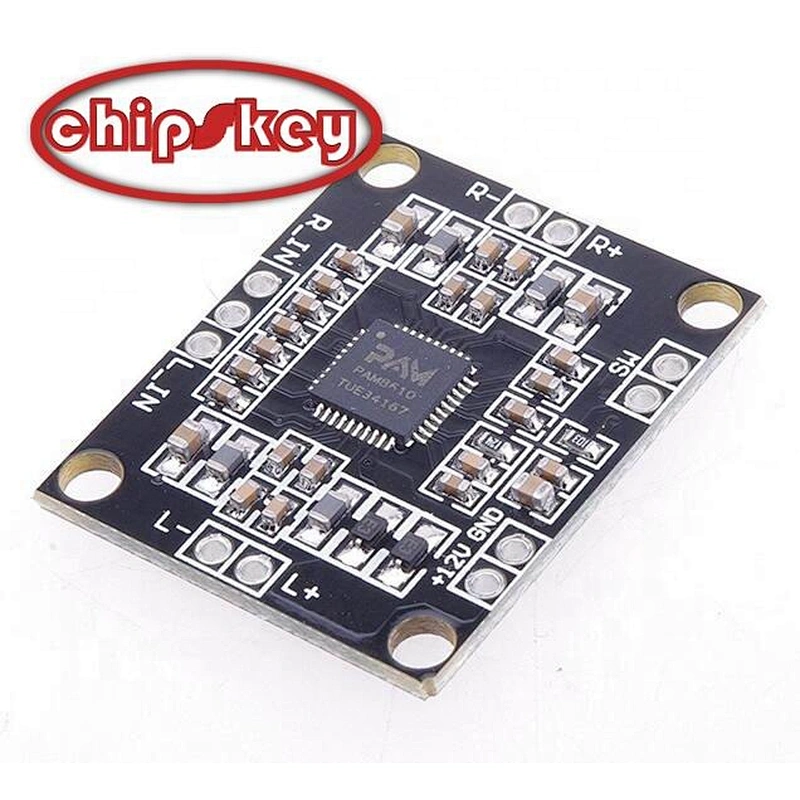

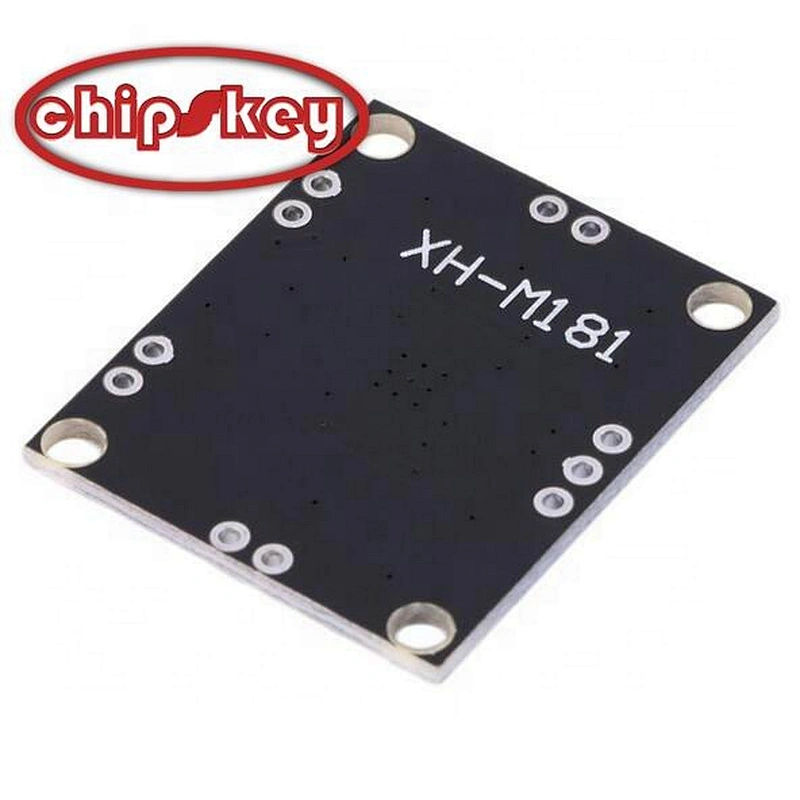

PAM8610 2*15W Dual channel Stereo Class Digital Amplifier Board 12V XH-M181

• Model Number:30001
• Type:Amplifier IC Development Boards and Kits
• Place of Origin:China
• Lead Free Status:Lead free / RoHS Compliant
• Condition:Starter KIT 1602 LCD Servo Motor Dot Matrix, Breadboard and modules
• SKU:30001
• Brand:chipskey

PAM8610 2*15W Dual channel Stereo Class Digital Amplifier Board 12V XH-M181

Product parameters:

Chip selection: PAM8610
Power supply range: DC 6V-15V (natural protection)
Recommended power supply: DC 12V 2A

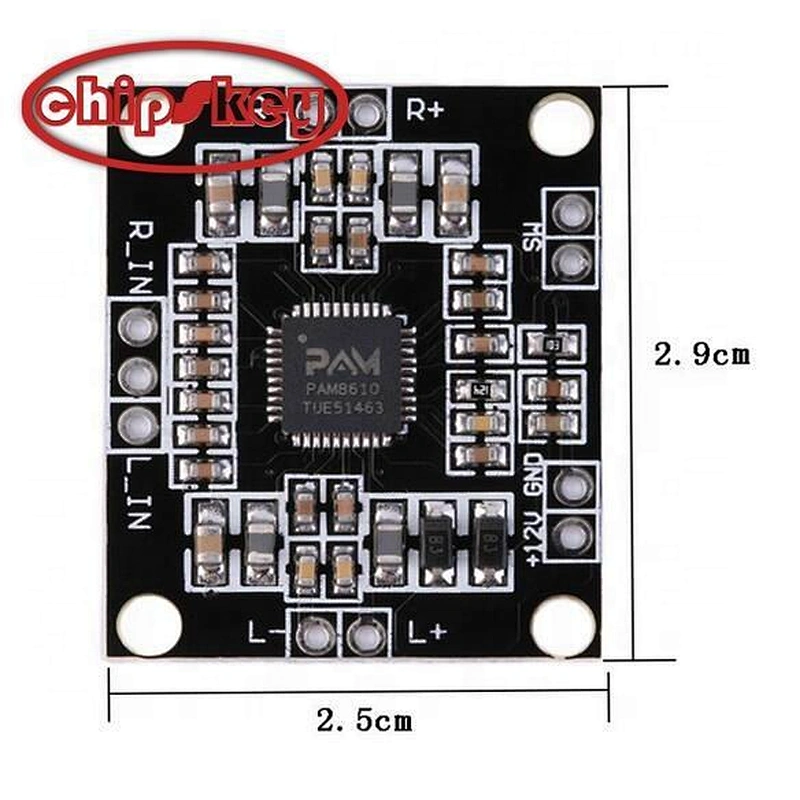

Appearance size: 25 * 31 * 2.5mm
Channel Type: Two-channel
Output power: 10W * 2 (8R load) / 15W * 2 (4R load)
Recommended Speaker: 10-30W
Frequency response: 20HZ-15KHZ
Quiescent current: 20mA (when DC12V)
Signal to noise ratio: 90%
Input impedance: 20K
Output impedance: 4-8R
Harmonic distortion: <0.1%
