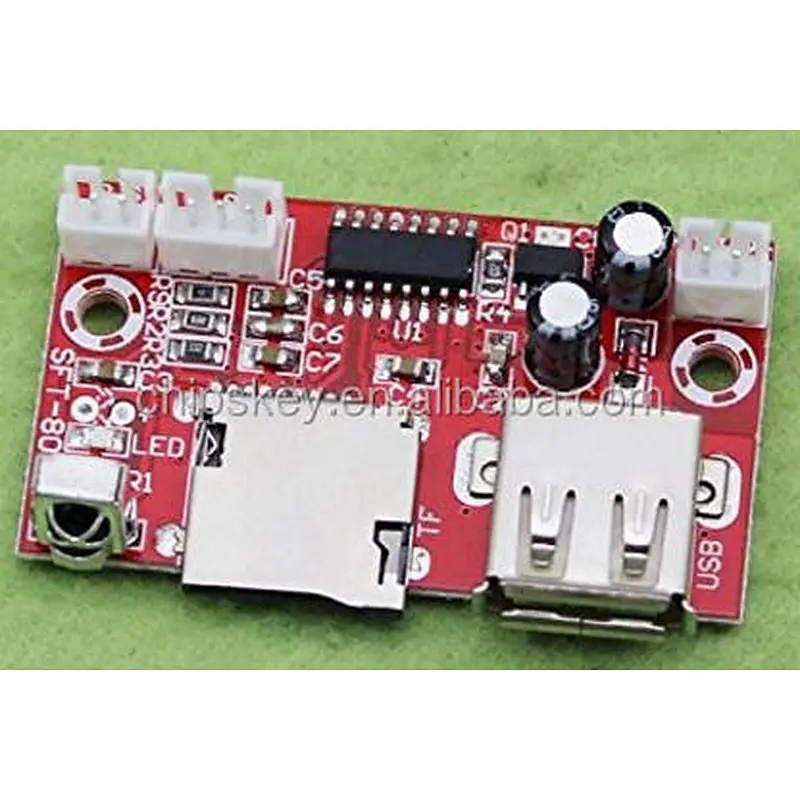

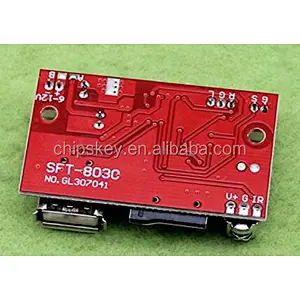

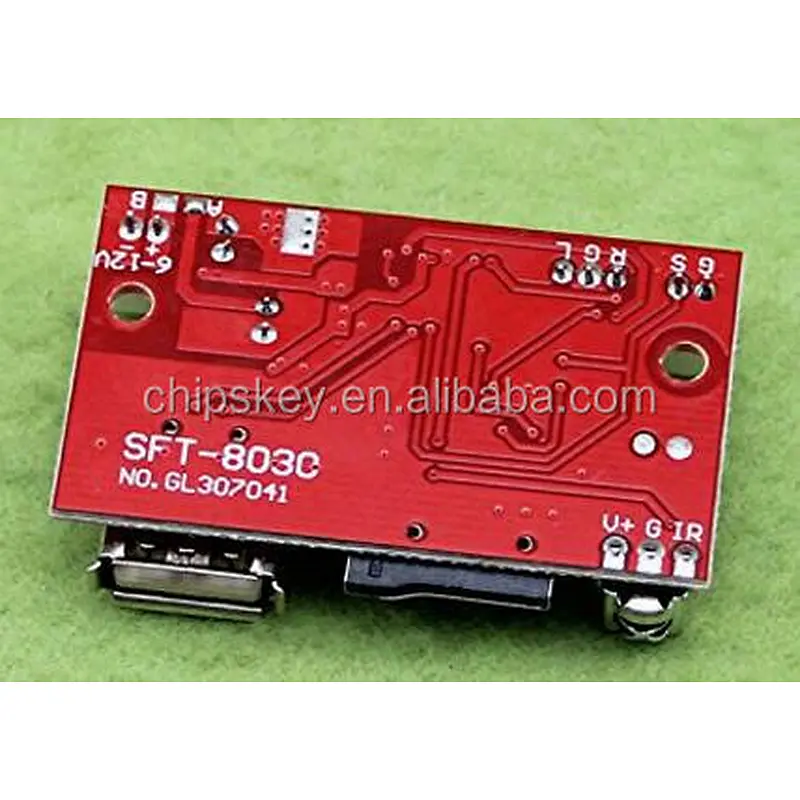

MP3 decoder board 12V DC / WAV lossless decoding board tf card / usb decoder super APE

• Model Number:26020
• Place of Origin:Guangdong, China
• Brand Name:Chipskey
• Part number:26020
• working voltage:6-12V
• working current:200-900mA
• support format:8-320K rate of MP3 format
• operating mode:power on the direct play, full remote control operation
• device type:TF card
• PCB material:FR-4 super-hardness double-sided tin plate
• PCB Specifications:48x28mm, thickness: 1MM

MP3 decoder board 12V DC / WAV lossless decoding board tf card / usb decoder super APE

The main function:
1. Support WAV lossless music player, support 320Kbps bit rate high quality MP3 music.
2. Increase the TF card slot, you can directly plug the phone memory card (TF card) to use. Plug TF memory card, the public to the public usb cable connection with the computer, according to the remote control moed mode switch can be used when the card reader, direct copy of the audio file to the TF card, very convenient.
3. MINI-type small board design, 6-12V power supply, use more widely, car CD transformation, speakers before the source sound decoding, lossless CD player replacement.
4. Support usb sound card function.
5. Loop mode: sequential loop, random cycle, single cycle, single pause.
Features

1. The smallest, powerful, inexpensive mini-lossless WAV + MP3 audio decoder board, dual decode board.

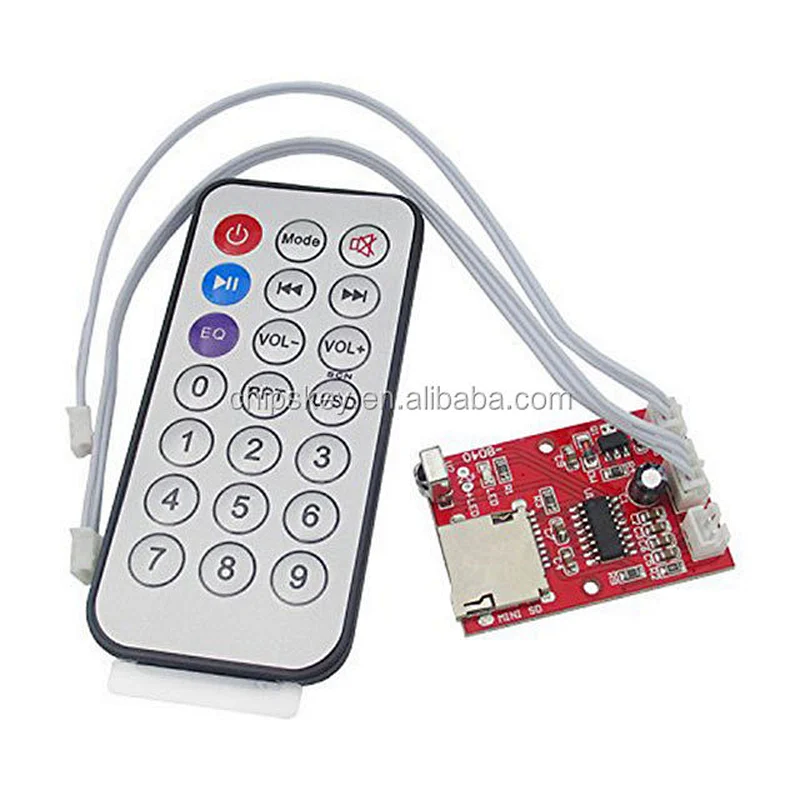

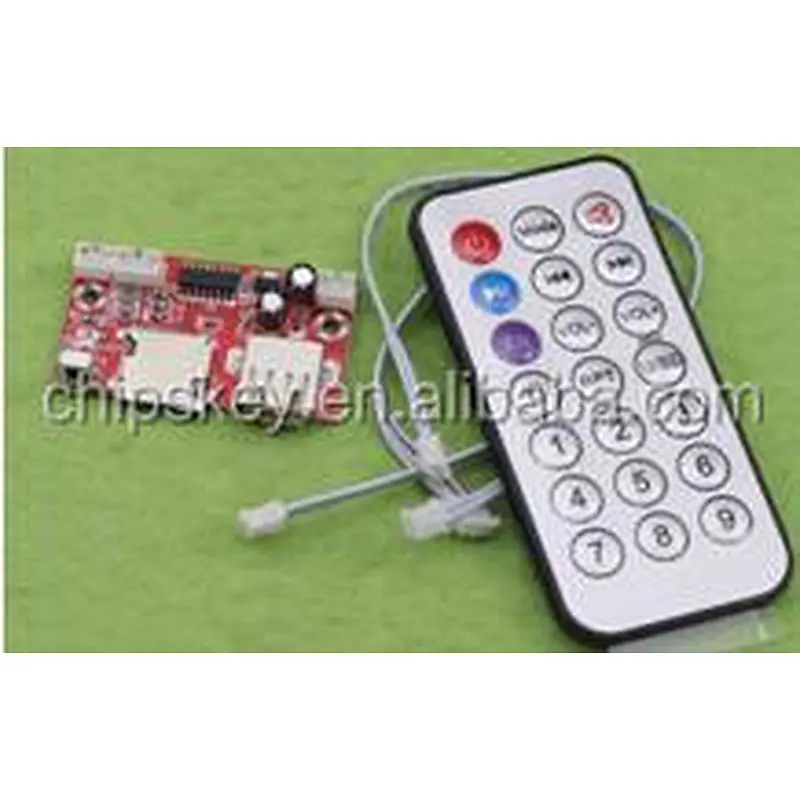

2. Almighty remote control, 3-8 meters long distance remote control, music heart and move.
3. Power off support track memory playback.
4. 8-320Kbps ultra wide MP3 rate range, enjoy the original sense of hearing, 320Kbps and then up is the lossless music APE format.
5. Support 8-48000Hz sampling frequency WAV format music files (commonly used 44KHz and 48KHz), like CD high quality music you do not miss. Does not support DTS surround multi-channel WAV format.
6. Increase the TF card slot, you can directly plug the phone memory card (TF card) to use. Plug TF memory card, the public to the public usb cable connection with the computer can be used when the card reader, direct copy of the audio file to the TF card, very convenient.
7. Support TF card, U disk or USB card reader to play music.
8. 6-12V wide voltage range of work, more suitable for cars, motorcycles, audio modification.
9. The overall circuit wiring beautiful and reasonable, to avoid the noise caused by self-interference, high signal to noise ratio.
10. With LED blue work indicator, next to the external two holes can be connected in parallel welding blue in-line LED indicator.
11. Are you still looking for an APE player? In fact, APE is compressed from the WAV, the sound quality exactly the same, the difference is not compressed by WAV, the file space occupied by APE only large, now large capacity U disk capacity is not a problem, APE price is too high, listen to WAV format Of the lossless music, it is a kind of authentic enjoyment.
