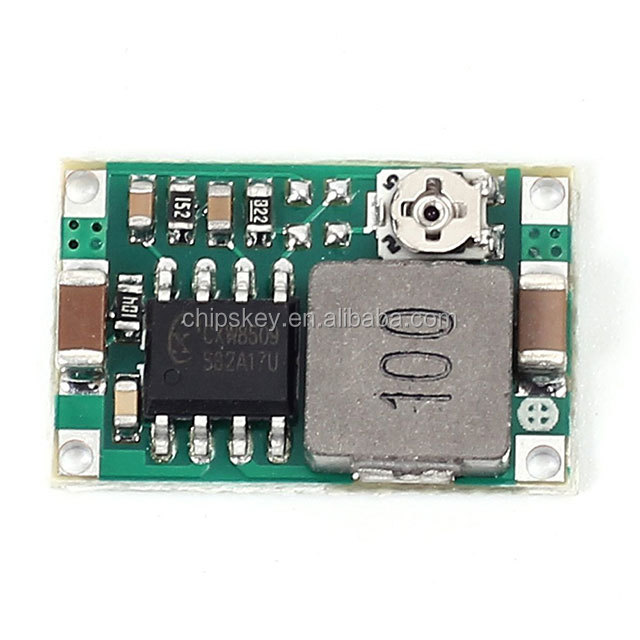

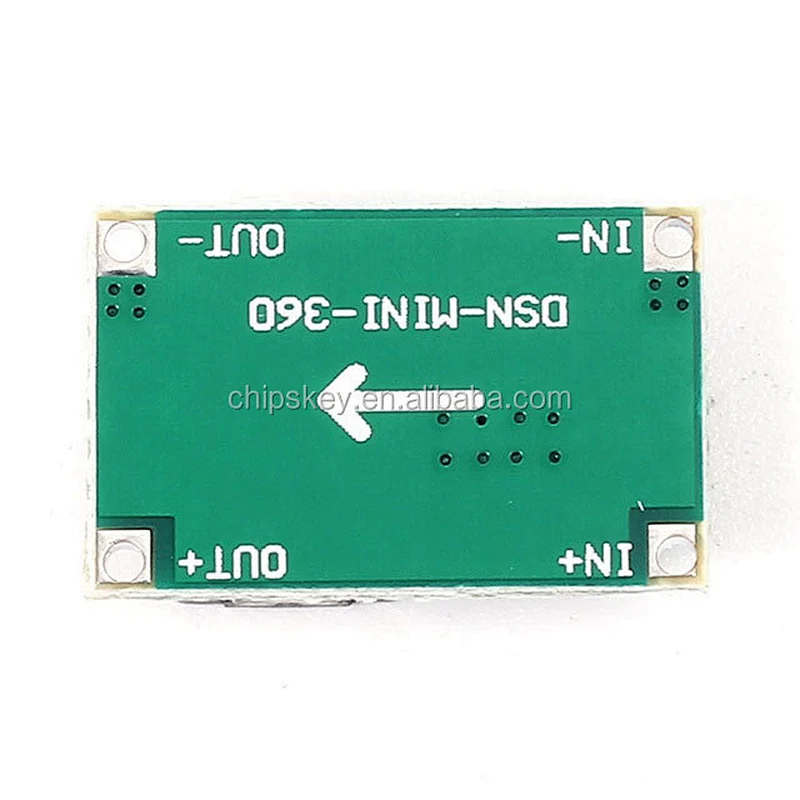

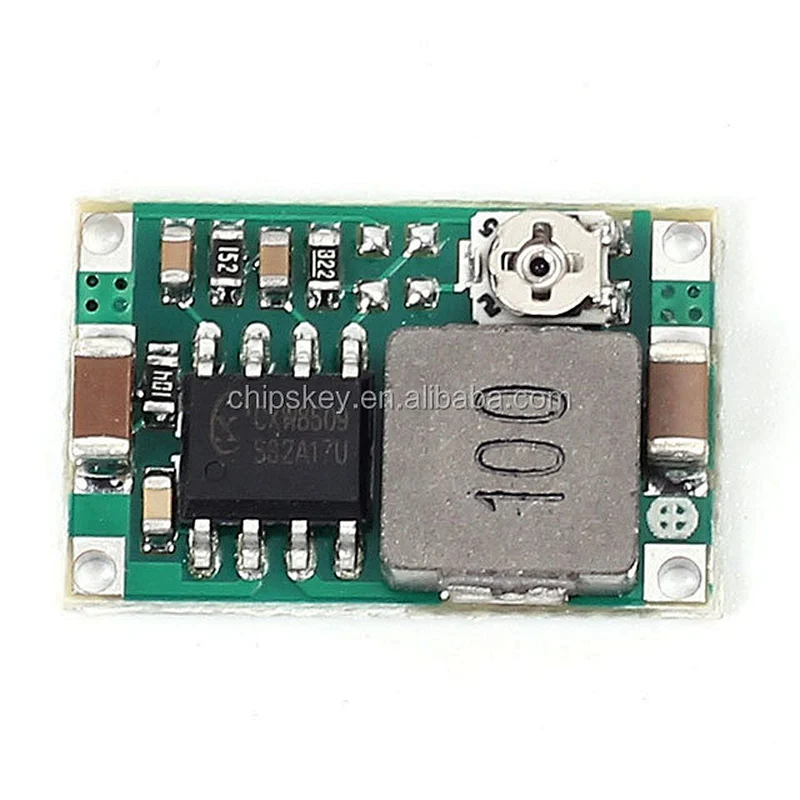

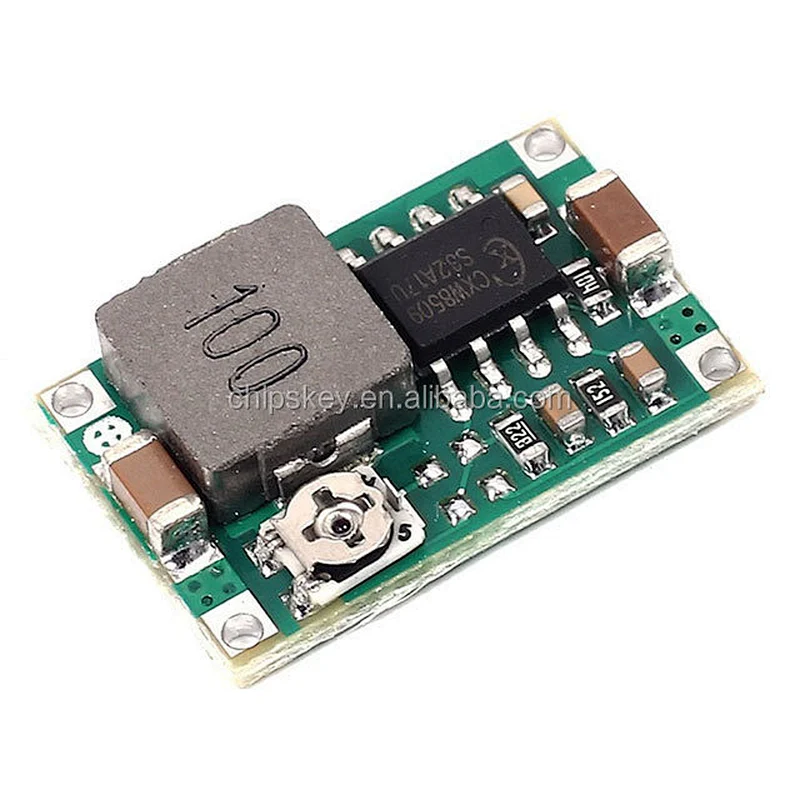

Mini-360 Buck DC-DC Converter Step Down Module 4.75-23V to 1-17V

• Model Number:23103
• Type:Data Conversion Development Boards and Kits
• Place of Origin:China
• Certification 1:ROHS
• Certification 2:CE

"product description
Features:
2. Module Properties: Non-isolated buck
3. Rectification: synchronous rectification
4. Input voltage: 4.75V-23V
5. Output voltage: 1.0V-17V
6. Output current: reduce the value of 3A, long 1.8A
7. Conversion efficiency: 96% (maximum)
8. Switching frequency: 340KHz
9. Output ripple: 30mV (no load)
Load Regulation: ± 0.5%
11. Voltage regulation rate: ± 2.5%
12. Operating temperature: -40 ℃ to +85?

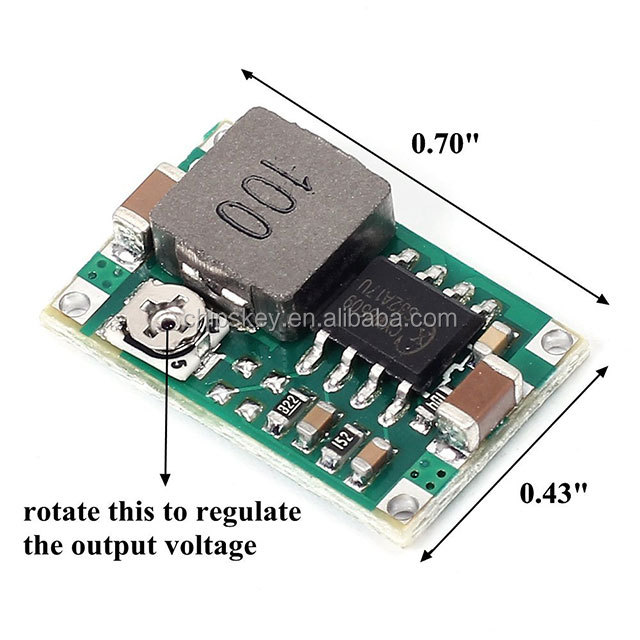

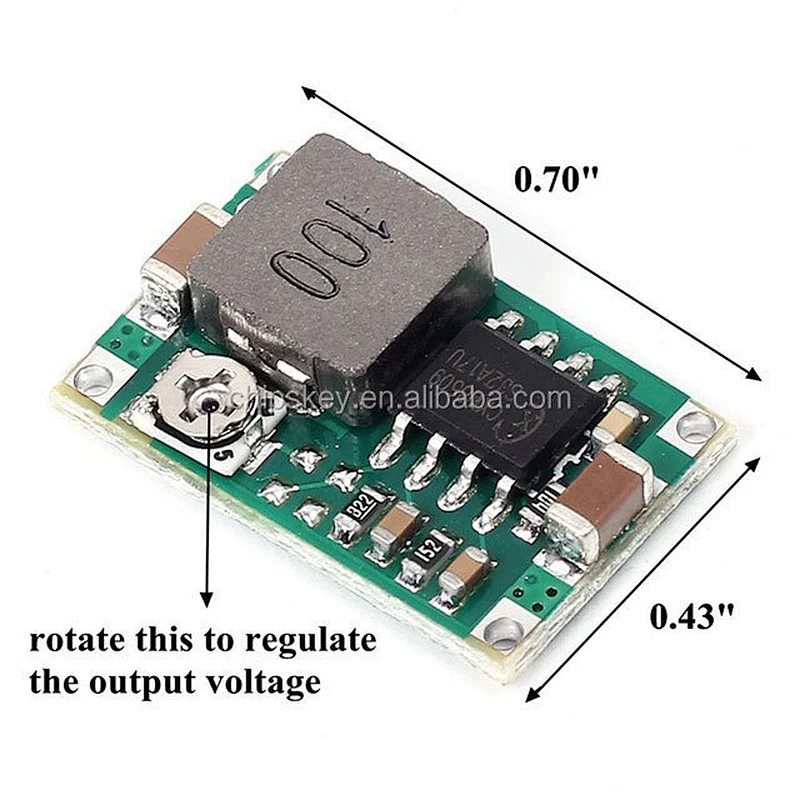

13. Dimensions: 17 * 11 * 3.8 (L * W * H) (mm)
14. Features: The use of integrated power inductor and synchronous rectifier control chip, smaller, more efficient.
"
