- Model Number:MAX485 2077
- Type:Drive IC
- Place of Origin:Guangdong, China, USA
- Brand Name:Chipskey
- Category:Module
- Lead Free Status:Lead free / RoHS Compliant
- Condition:Brand New With Original Manufacturer
- Packaging:Reel Tray Tube
- Maximum Operating Temperature:-40C ~ 125C
- Warranty:360days
- Operating Temperature:-40C ~ 125C
- Dissipation Power:1W-6W
- Supply Voltage:1.5V-6V

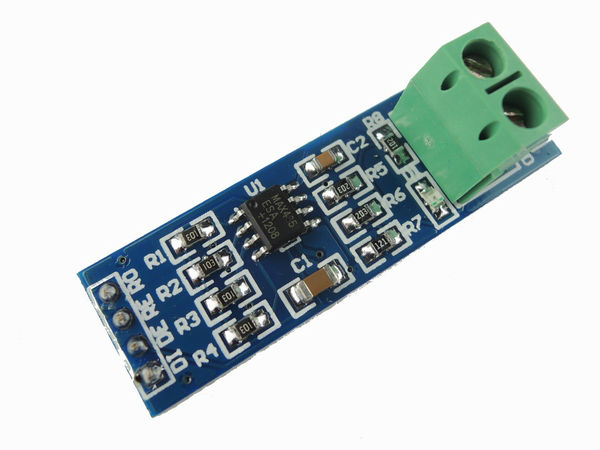

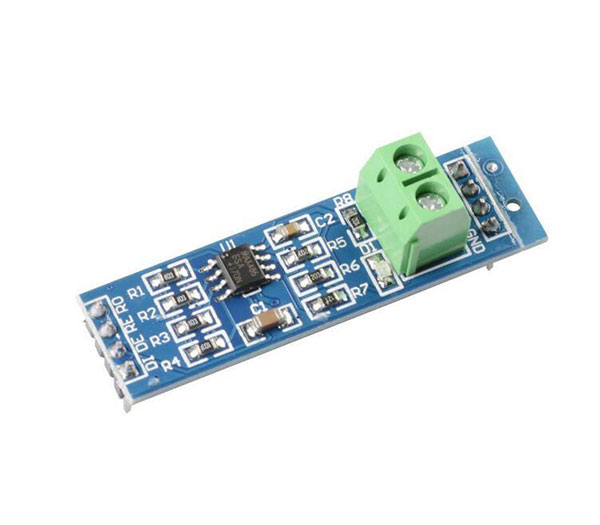

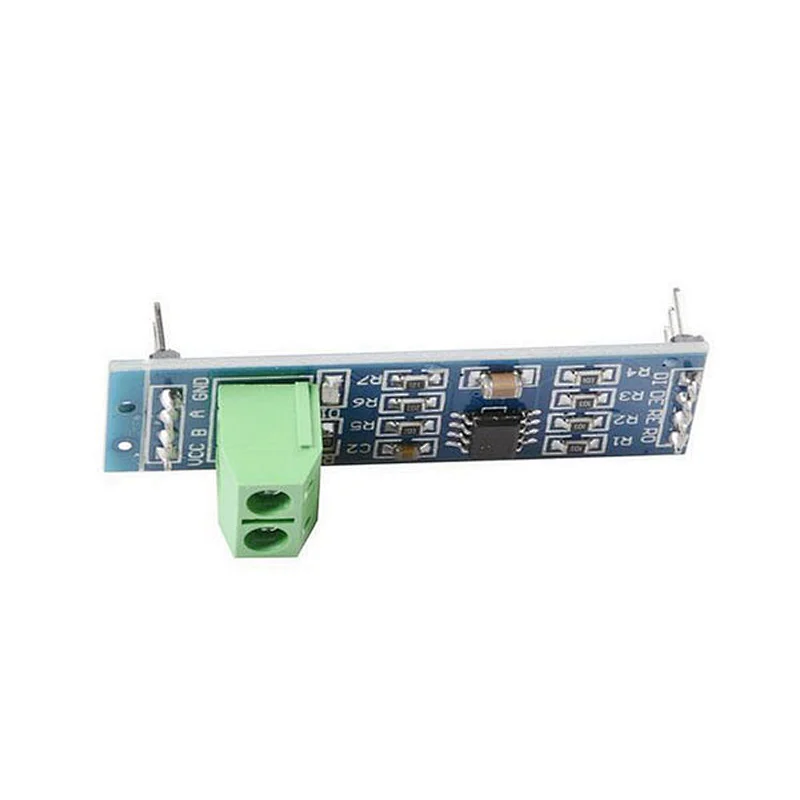

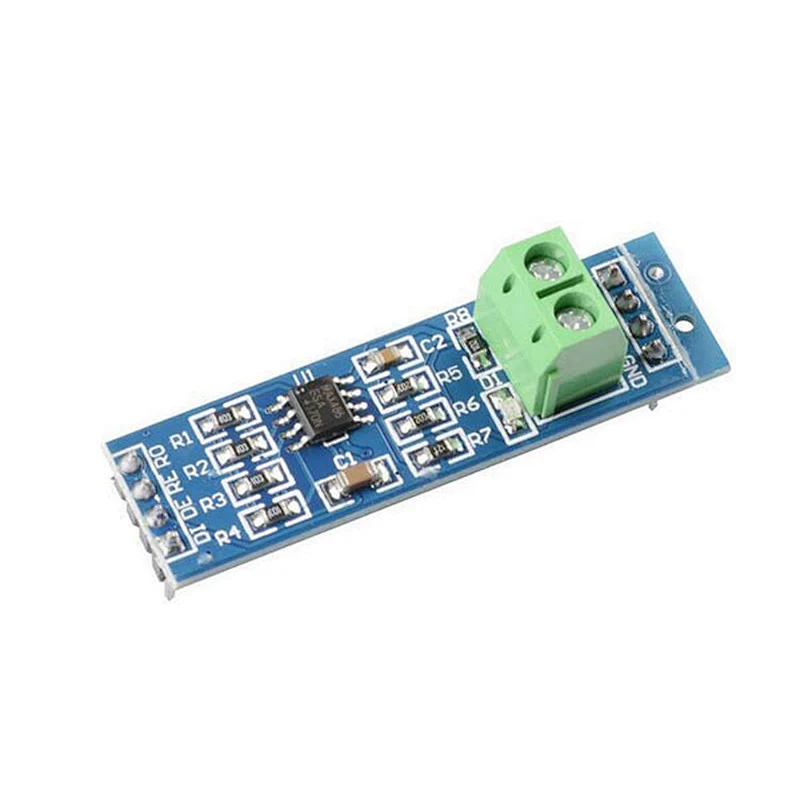

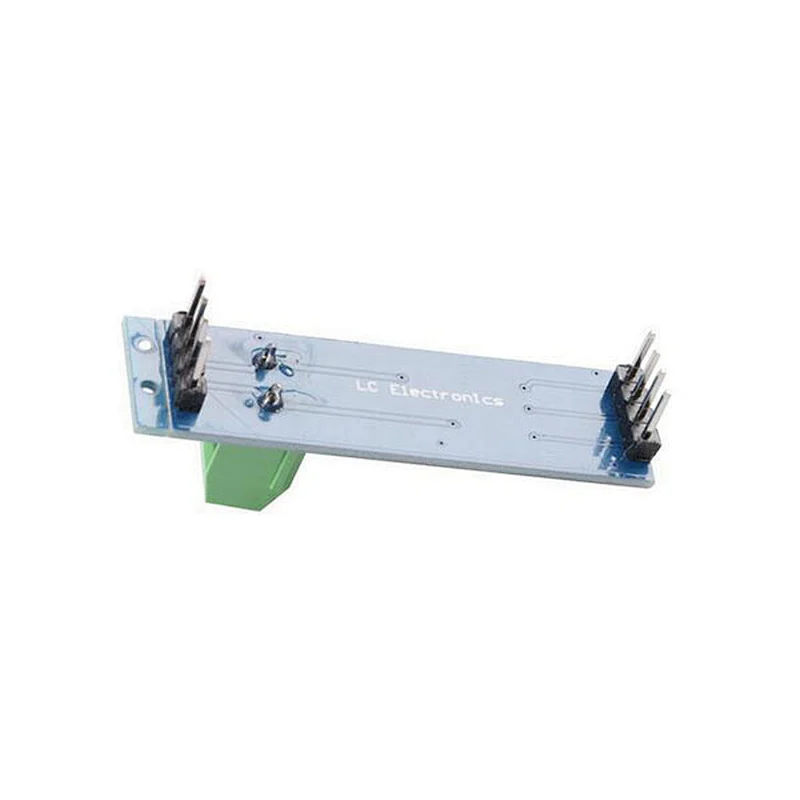

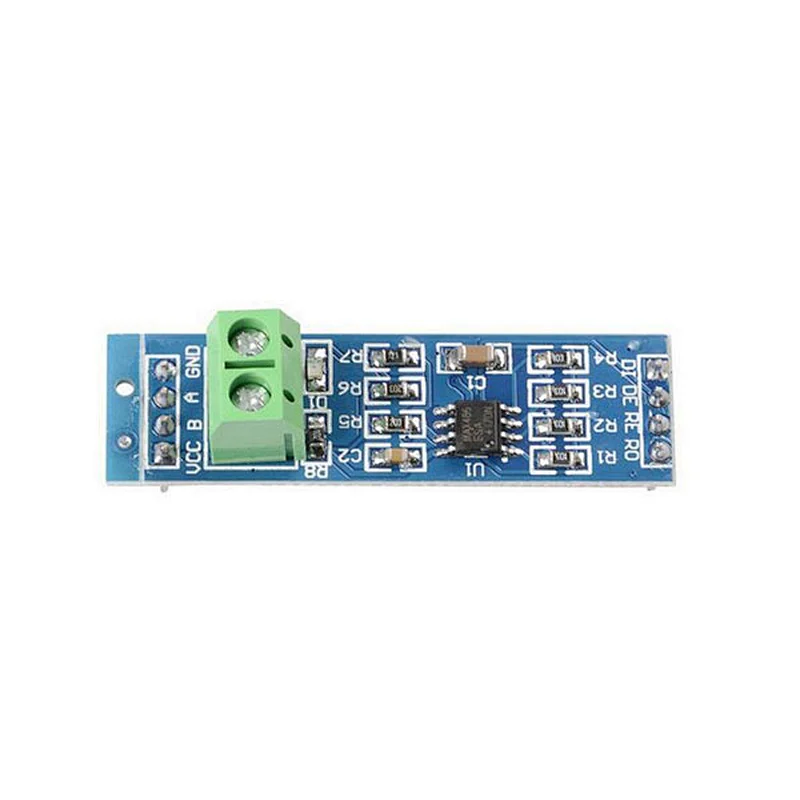

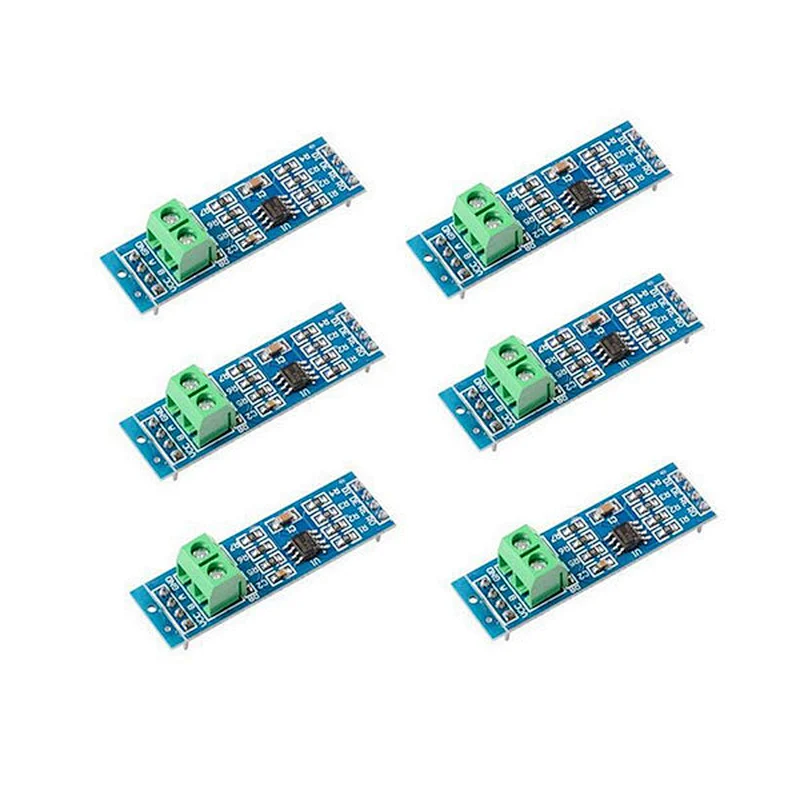

MAX485 module, RS485 module, TTL turn RS - 485 module
"Description:1. Onboard MAX485 chip, a low-power, slew rate limited transceiver for RS-485 communications
2. On-board 5.08 (mm) spacing 2P terminals for RS-485 communication wiring
3, all the pins of the chip have been led out, can be controlled by the SCM
4, working voltage: 5V
5, board size: 46 (mm) x 12 (mm)
Shipping list:
1 A block of MAX485 modules as shown
2 Provide schematics Test procedures
Product Name : MAX485 Module;
Working Voltage : 5V
PCB Board Size : 44 x 14mm (L*W)
Material : Electronic Components, Plastic
Net Weight : 6g
"
1, on-board MAX485 chip, is a tool for RS-485 communications, low-power, Slew-Rate Transceiver
2, onboard then 5.08 (mm) pitch 2P terminal for easy wiring RS-485 communication
3, the chip has drawn all of the pins can be controlled by the microcontroller operation
4, Working voltage: 5V
5, board size: 44 (mm) x14 (mm)
